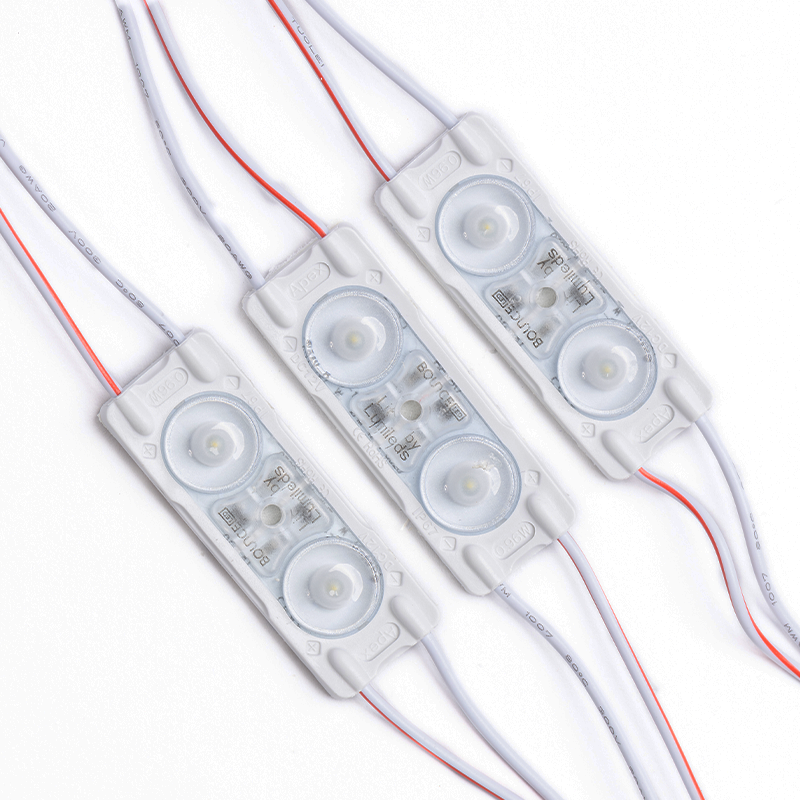

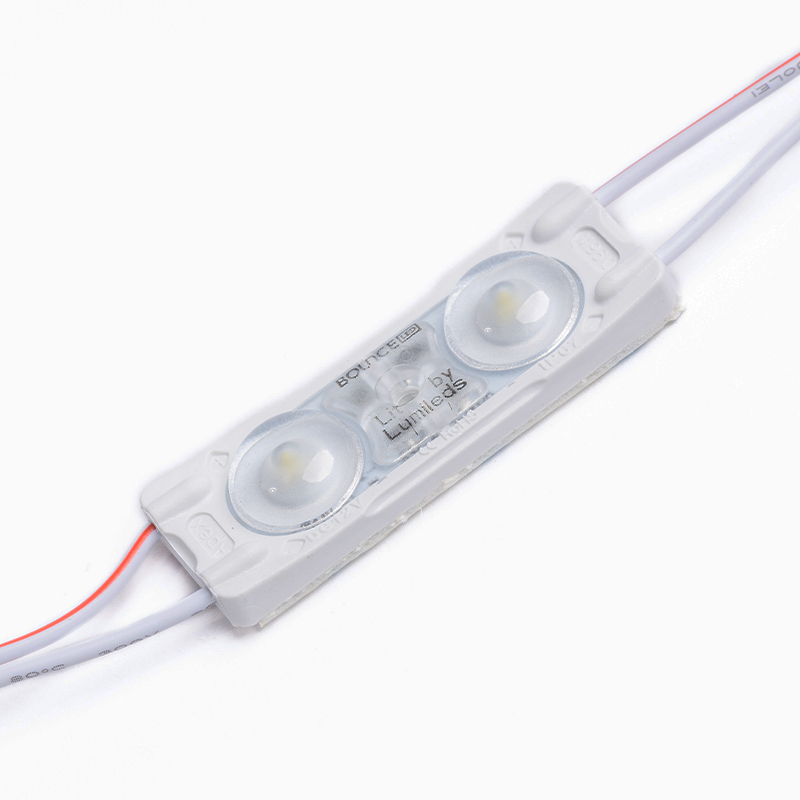

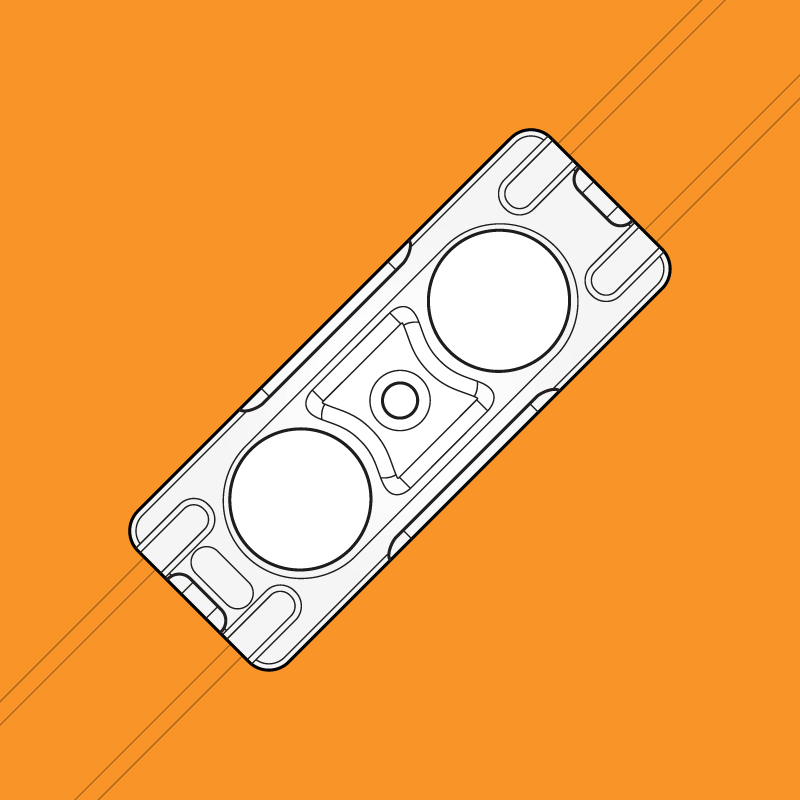

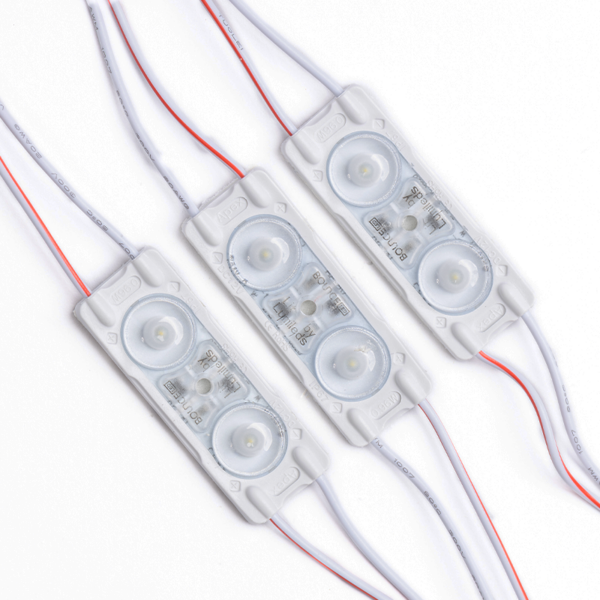

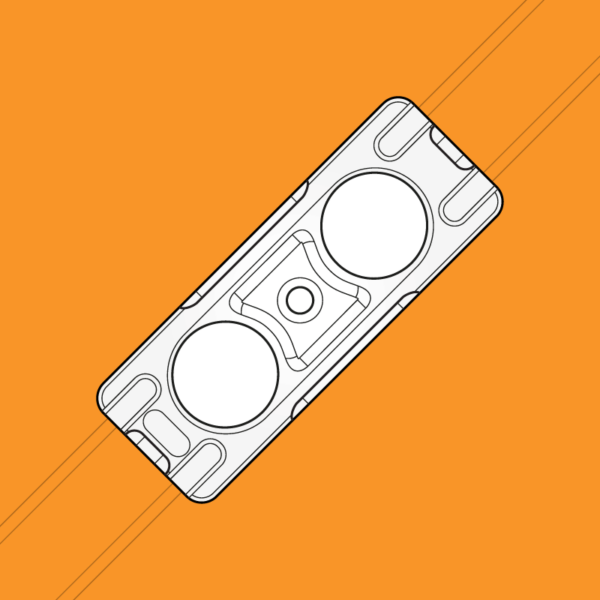

Meet Apex, a punchy LED module that’s a powerhouse in the signage industry.

Product Specs

  • Power Output

    0.96w (12V)

  • Lumens

    100lm

  • Colours Available

    3000K, 4000K, 5000K, 6500K

  • Warranty

    5 Years

  • Dimensions

    52 x 19 x 7 mm

  • Max Series

    40 Modules Per Series

  • Includes

    40 Modules Per Pack

Similar in features to our Micro LED module, the agile Apex is ideal for sign cabinets and lightboxes, and comfortably navigates medium sized channel letters.

With the ability to run an amazing 40 LED modules per series with constant current technology, Apex is an excellent indoor and outdoor LED lighting module, with the latest 160º “Batwing” optic design. Our Apex LED module is available in a variety of colour temperatures , all with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Colour

3000K, 4000K, 5000K, 6500K
IP Rating

Product Type

LED Module
Voltage

12V
Power Output

0.96W
Features

Dimmable

Installation guide

1

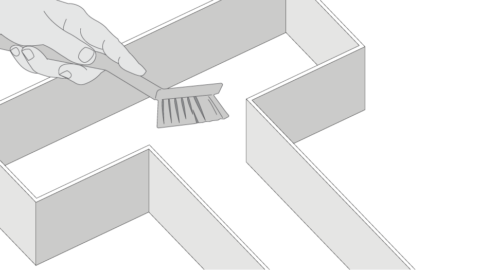

Ensure the inside of your channel letter or sign box is clean and free of debris.
2

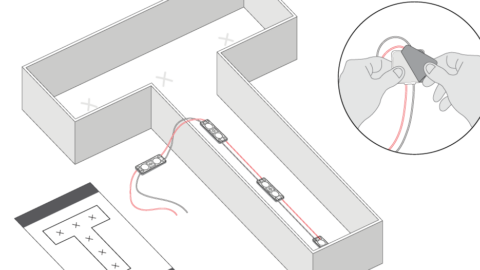

Using supplied LED layout, remove tape from the rear side and stick LED modules in place.

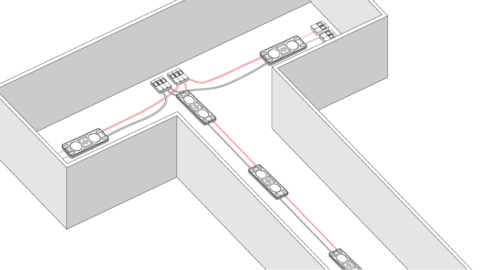

3
Working in low voltage WAGO connectors can be used to quickly wire LEDs in series or parallel. Do not exceed the maximum modules per series as this will result in voltage drop.
4

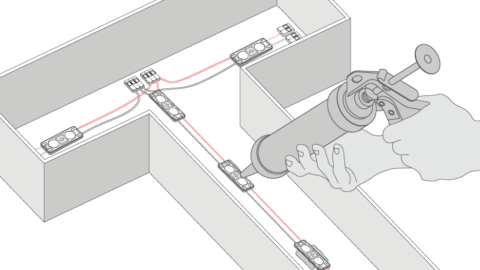

Secure the LEDs by gluing modules in place.
5

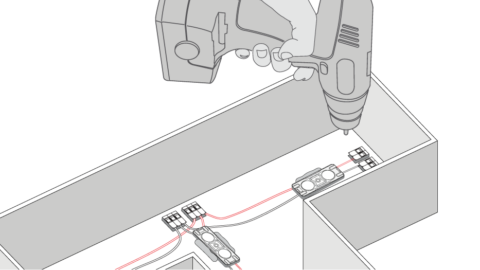

Drill holes out the back of the letters or sign box for connection to DC power supply.
6

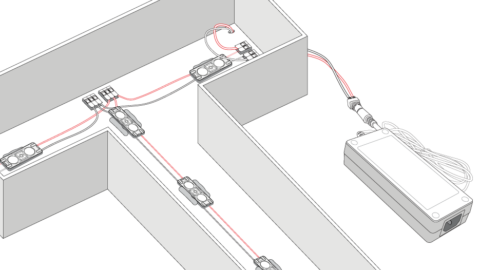

Wire the LED modules from the sign to the power supply. If there are multiple letters/signs they should be connected in parallel to eliminate voltage drop and ensure consistent brightness.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.

Frequently asked questions

Our Apex LED module has been designed for many indoor and outdoor lighting installations, and is excellent in the following applications:

  • Cabinet Lighting
  • Light Boxes
  • Channel Letters
  • Backlit Lighting
  • Dimmable (with controller)

Follow these steps on how to install the Apex LED module.

  1. Ensure the inside of your channel letter or sign box is clean and free of debris.
  2. Using the supplied LED layout, remove tape from the rear side of the LED module and stick into place.
  3. Low voltage WAGO connectors can be used to quickly wire LEDs in series or parallel.
  4. Secure the LEDs by gluing modules in place.
  5. Drill holes out the back of your letter or sign box for connection to DC power supply.
  6. Wire the LED modules from the sign to the power supply. If there are multiple letters/signs they should be connected in parallel to eliminate voltage drop and ensure consistent brightness.
  7. You can install the Apex to a maximum of XX modules per series. Always check the max series to avoid a voltage drop.

We have a range of dimmable drivers and controllers, suitable for use with the Apex LED module.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many LED modules you’ll need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many Apex LED modules you’ll need for your next project.
