Blade Plus Two

Blade Plus Two offers a high-powered, narrow beam ideal for slim lightboxes and sign cabinets.

Product Specs

  • Power Output

    4.0W (24V)

  • Lumens

    400 lm

  • Colours Available

    6500K

  • Ingress Protection

    IP67

  • Dimensions

    97.4 x 30 x mm

  • Warranty

    7 Years

  • Max Series

    40 Modules Per Series

  • Includes

    40 Modules Per Pack

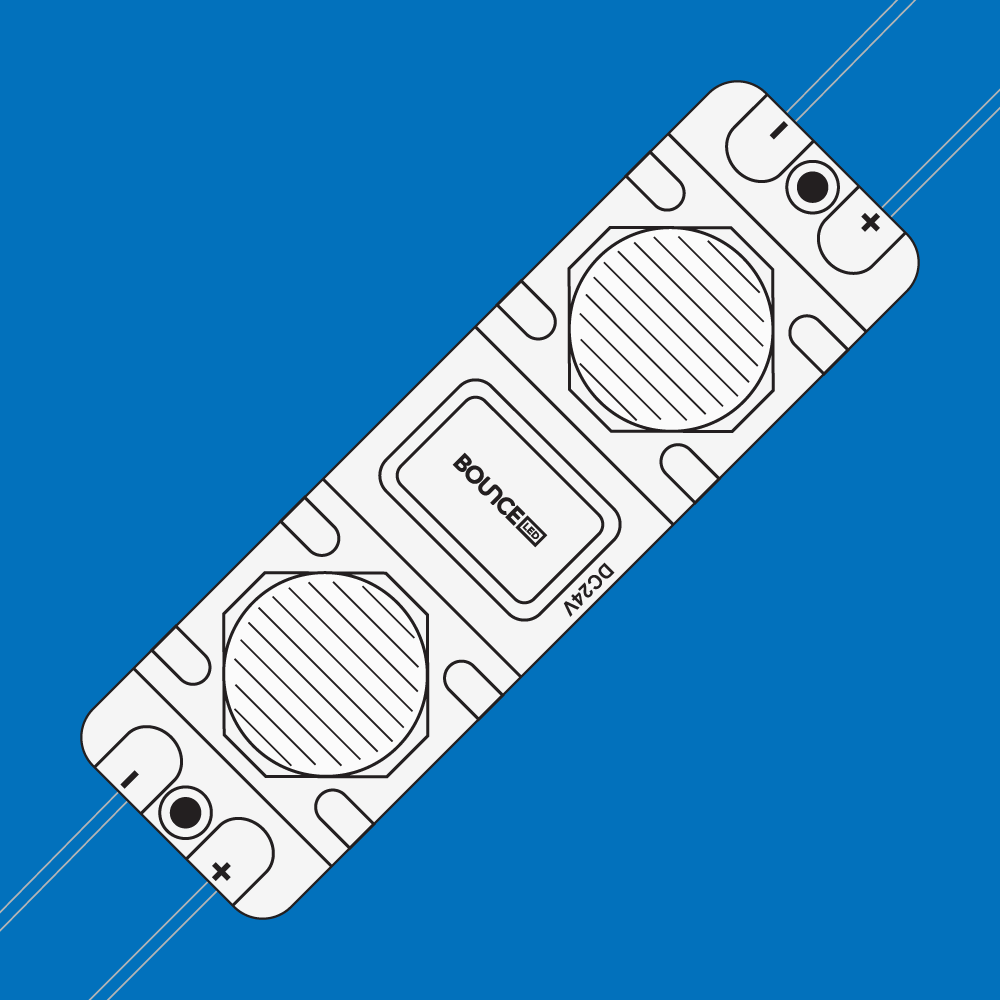

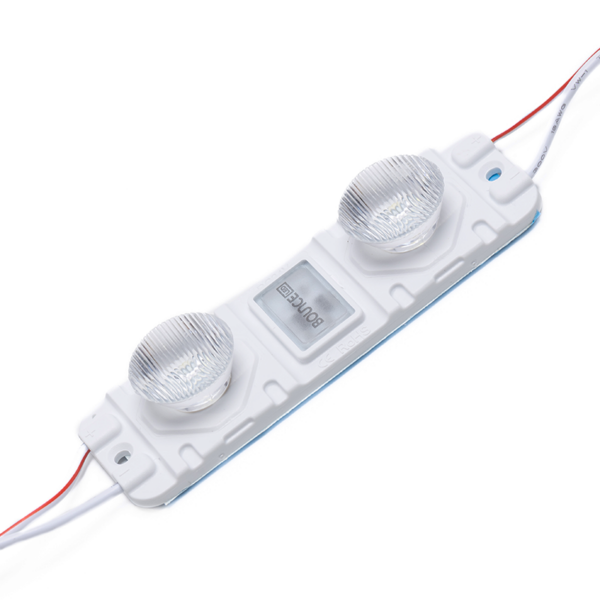

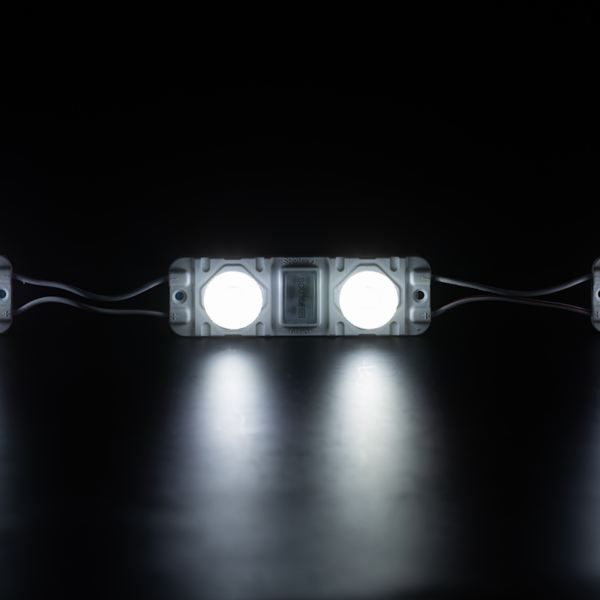

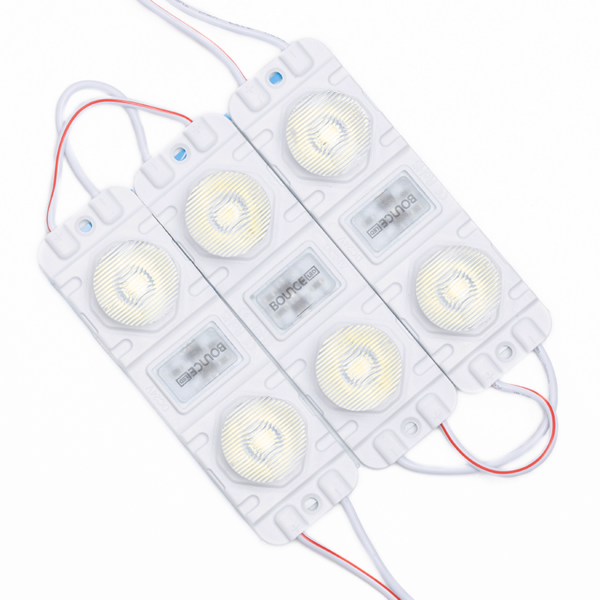

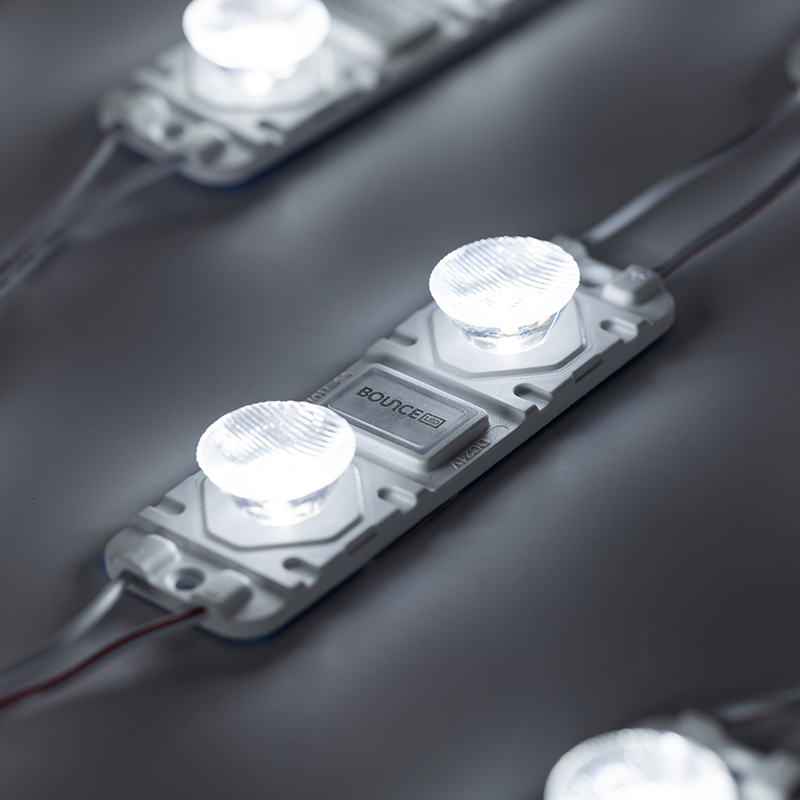

The Blade Plus Two (24V) is a high-powered side light module designed for narrow lighting situations.

With state of the art elliptical lenses that shoot a narrow beam of light across the inside face of the sign, you are guaranteed even and efficient illumination of lightboxes of 50mm depth and greater. This narrow beam LED Module is ideal for indoor and outdoor lighting installations and can run up to 40 LED modules per series. Blade Plus 1 is available in Cool White (6500K), with an impressive 7 year warranty.



Find all the latest product specifications and guides below:

Features

Dimmable

Installation guide

1

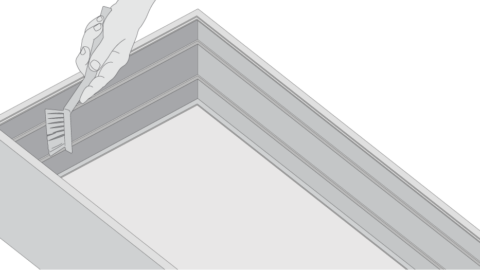

Ensure the inside of your channel letter or sign box is clean and free of debris. For best illumination ensure the inside of the box is white (matte finish preferred).
2
Using supplied LED layout, remove tape from module and press in place. For best illumination, install modules two-thirds of the way towards the back of the box for single-sided signs, centralised for double-sided signs.
3

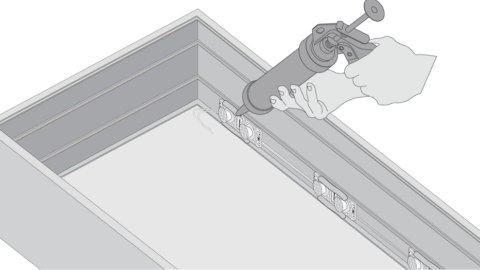

Secure LEDs by gluing modules in place.
4
Drill a suitably sized hole out the back of the sign for connection to DC power supply.
5
Connect modules from the sign to power supply, making sure to not exceed the maximum modules per series. Exceeding the maximum will lead to voltage drop and uneven illumination.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.

What applications is the Blade Plus 2 suited to?

Our Blade Plus narrow beam LED module has been designed for many indoor and outdoor lighting installations, and is excellent in the following applications:

  • Cabinet Lighting
  • Light Boxes
  • Backlit Installations
  • Sidelit Installations
  • Edgelit Installations
  • Dimmable (with controller)

Follow these steps on how to install the Blade Plus narrow beam LED module.

  1. Ensure the inside of your sign box is clean and free of debris. For best illumination ensure the inside of the box is white (matte finish preferred)
  2. Using the supplied LED layout, remove tape from the rear side of the LED module and stick into place. For best illumination, install modules two-thirds of the way towards the back of the box for single sided signs and centralised for double-sided signs.
  3. Secure the LEDs by glueing modules in place.
  4. Drill holes out the back of your letter or sign box for connection to DC power supply.
  5. Wire the LED modules from the sign to the power supply.
  6. You can install the Blade Plus to a maximum of xx modules per series. Always check the max series to avoid a voltage drop.

We have a range of dimmable drivers and controllers, suitable for use with the Blade Plus LED module.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many LED modules you’ll need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many Blade Plus narrow beam LED modules you’ll need for your next project.
