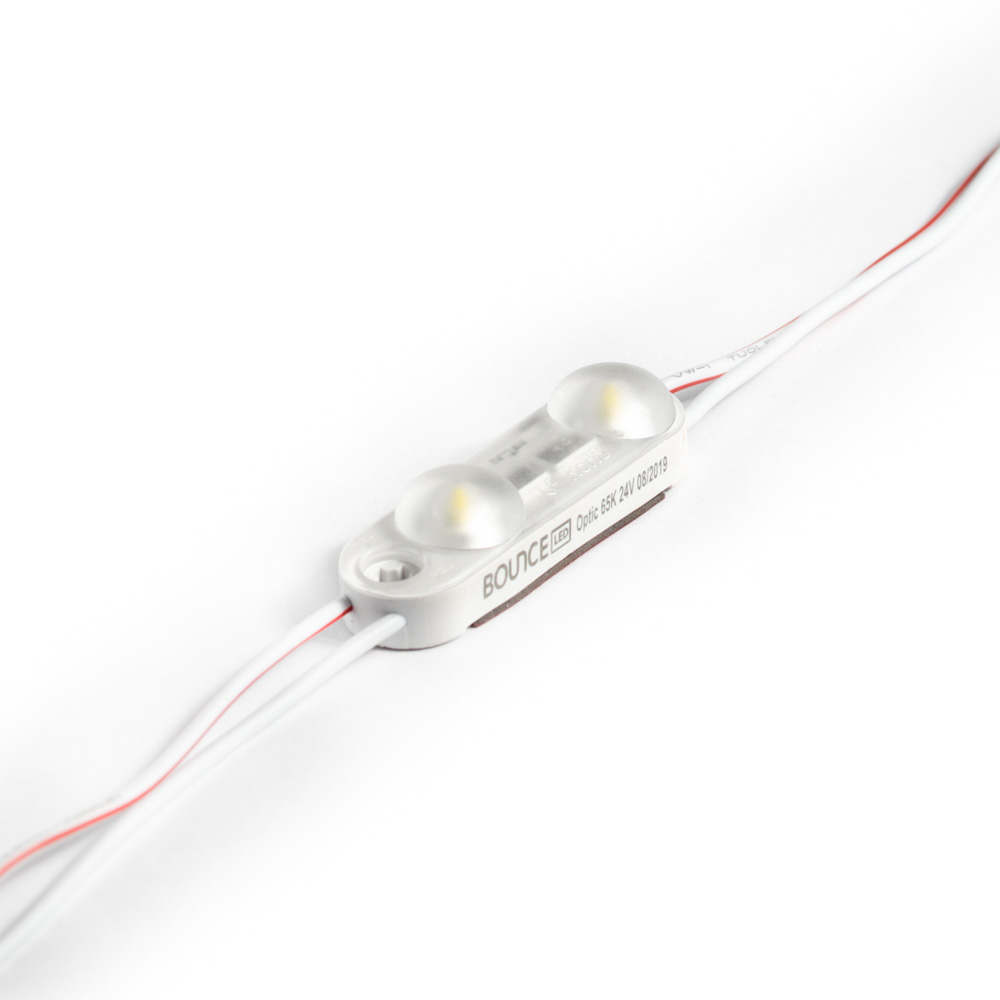

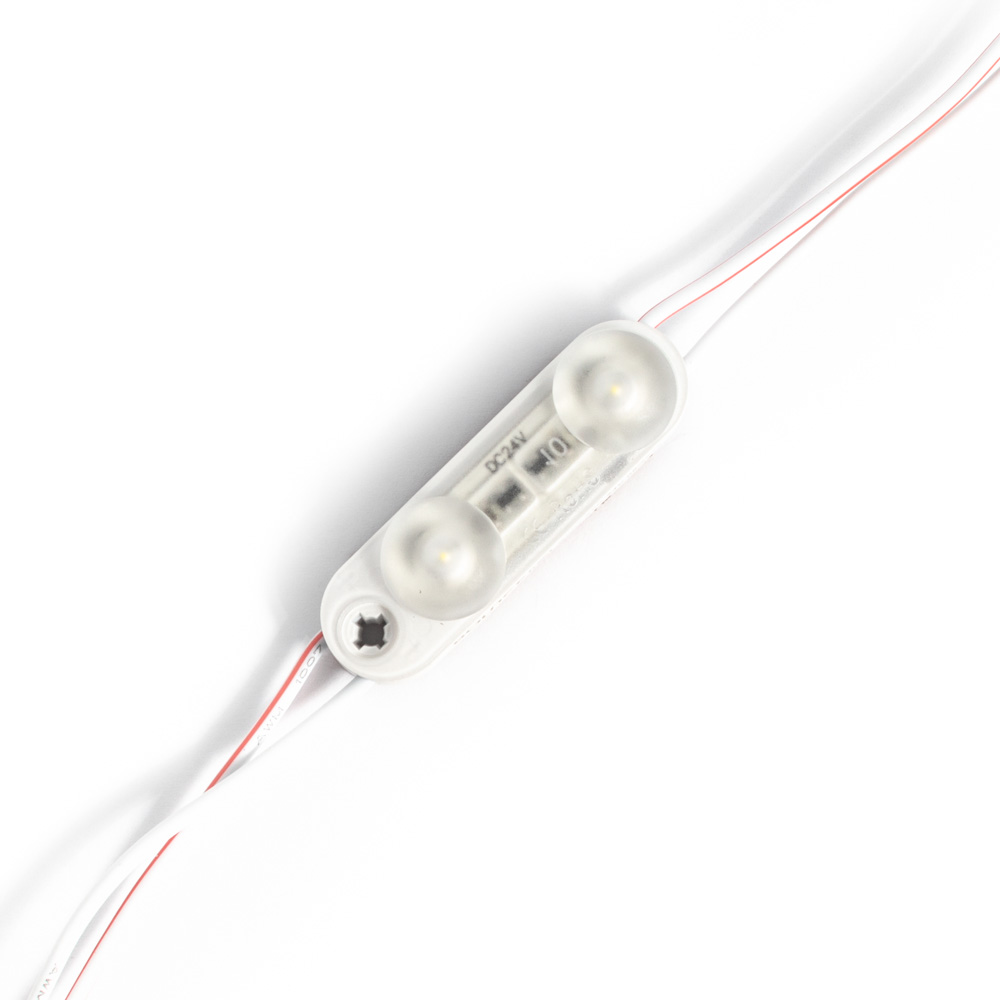

Meet the Eclipse. Our high-power 24V LED lighting module, for challenging lighting projects with dramatic results.

Product Specs

  • Power Output

    0.48W (24V)

  • Lumens

    75lm

  • Colours Available

    3000K, 4000K, 5000K, 6500K, 10,000K, Red, Green, Blue

  • Warranty

    8 Years

  • Dimensions

    46 x 13 x 10mm

  • Max Series

    100 Modules Per Series

  • Includes

    100 Modules Per Pack

With high-performance optics and an impressive series length of 100 modules per chain, you can’t beat the Eclipse 24V LED module.

Eclipse provides a broad spread of even illumination with a high degree of efficiency in a slim, compact design – Ideal for shallow channel letters, narrow cabinet lights and challenging commercial lighting projects. Eclipse is available in temperatures ranging from 3000K – 6500K along with Red, Green and Blue options, all with an incredible 8 year warranty.

Find all the latest product specifications and guides below:

Units

, , ,

Colour

10,000K, 3000K, 4000K, 5000K, 6500K, BLUE, GREEN, RED
IP Rating

Product Type

LED Module
Voltage

24V
Power Output

0.48W

Frequently asked questions

Our Eclipse 24V LED module has been designed for many indoor and outdoor lighting installations, and is excellent in the following applications:

  • Cabinet Lighting
  • Light Boxes
  • Channel Letters
  • Commercial applications
  • Backlit Installations
  • Dimmable (with controller)

Follow these steps on how to install the Eclipse 24V LED module.

  1. Ensure the inside of your sign box is clean and free of debris.
  2. Using the supplied LED layout, remove tape from the rear side of the LED module and stick into place.
  3. Low voltage WAGO connectors can be used to quickly wire LEDs in series or parallel.
  4. Secure the LEDs by glueing modules in place.
  5. Drill holes out the back of your letter or sign box for connection to DC power supply.
  6. Wire the LED modules from the sign to the power supply.
  7. If there are multiple letters/signs they should be connected in parallel to eliminate voltage drop and ensure consistent brightness.

We have a range of dimmable drivers and controllers, suitable for use with the Eclipse 24V LED module.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many LED modules you’ll need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many Eclipse 24V LED modules you’ll need for your next project.
