Five Wire Connectors

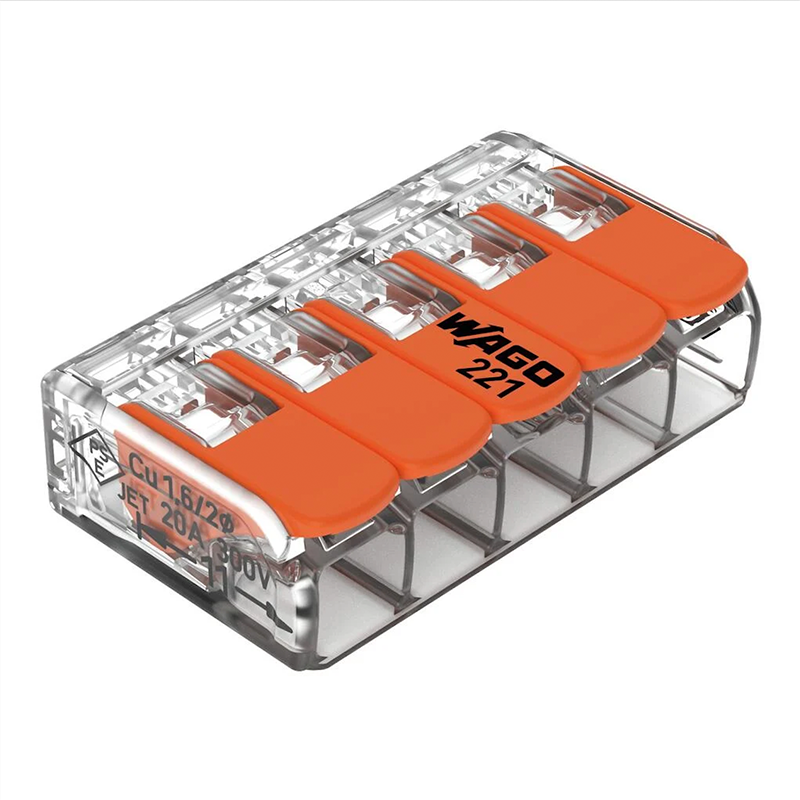

The compact Wago 221 Double Wire Splicing Connector clips make LED wiring and installation faster, safer and easier.

Product Specs

  • Dimensions

    30 x 18.5 x 8.5mm

  • Compatibility

    0.14 to 4 mm² (24–12 AWG)

  • Power Output


  • Includes

    25 pcs Per Box

With a unique compact design, the Wago Double Connectors make connection possible without tools, even in the most difficult to access installations.

With the transparent housing, you can ensure your wiring has been inserted correctly. Simply strip your LED wire to 11mm, open the clamping unit and insert your conductor, then lower the lever to close the clamp for a solderless connection. These compact double splicing connectors are suitable for all conductor types. Available in 2, 3 and 5 conductor splicing connectors.

Find all the latest product specifications and guides below:


, ,

Product Type

Wiring Accesssories


12V, 24V

Frequently asked questions

Wago 221 Double Wire Connectors are suited to the following applications:

  • 24V and 12V applications
  • Cabinet Lighting
  • Lightboxes
  • Commercial Lighting
  • Shopfitting
  • Architectural Lighting
  • Suitable for use with all conductor types
  • Suitable for outdoor use when combined with the Wago Gelbox

Follow these steps on how to install the Wago 221 Double Wire Connectors.

  1. Strip your LED wire/conductor to 11mm (0.43”).
  2. Open the clamping unit with the integrated lever and insert your conductor.
  3. Lower the lever to close the clamp.
  4. Ensure your wire has been inserted correctly.

The Wago 221 Double Wire Connectors can be used alongside the Wago Gelbox waterproof protection box, for a complete watertight outdoor wiring solution.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many modules and wire connectors you will need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many Wago 221 Double Wire Connectors you’ll need for your next project.

Enquire about the Wago 221 Double Wire Connectors
Discuss your project needs with our friendly team. Send through your signage artwork and we’ll happily provide a custom LED layout with pricing in 24-48 hours, or why not try Bounce Wizard, our free layout and estimator tool.
