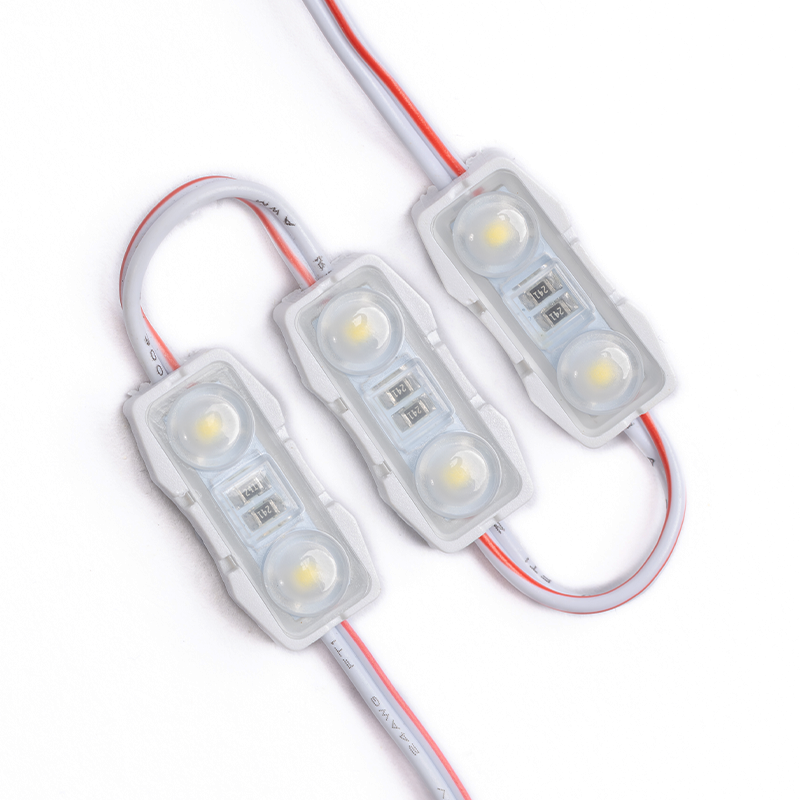

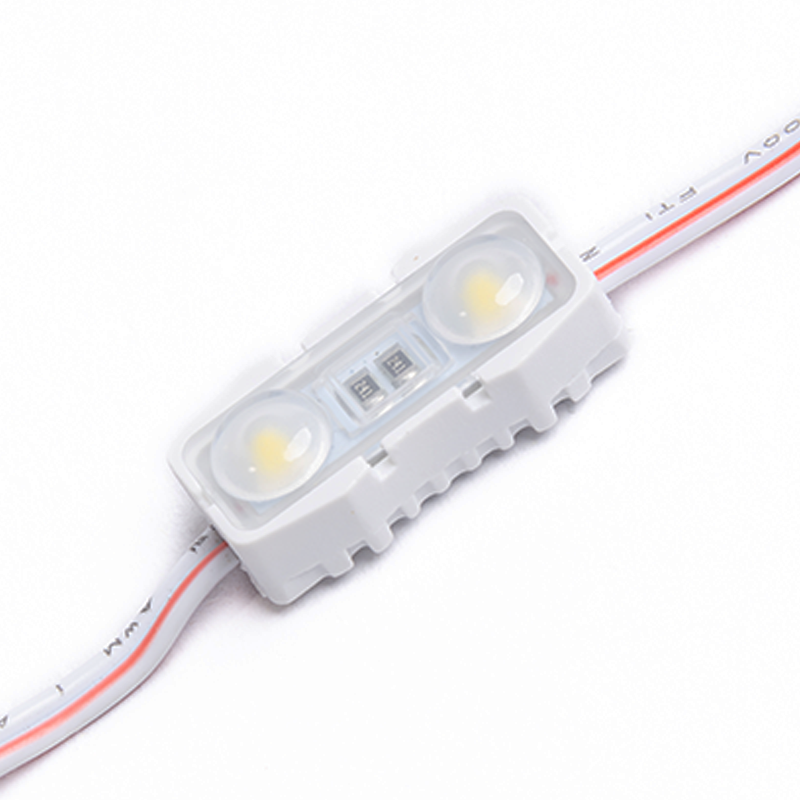

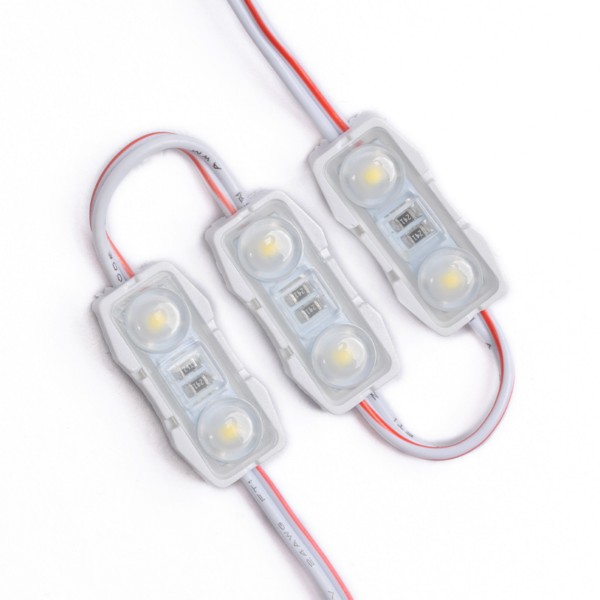

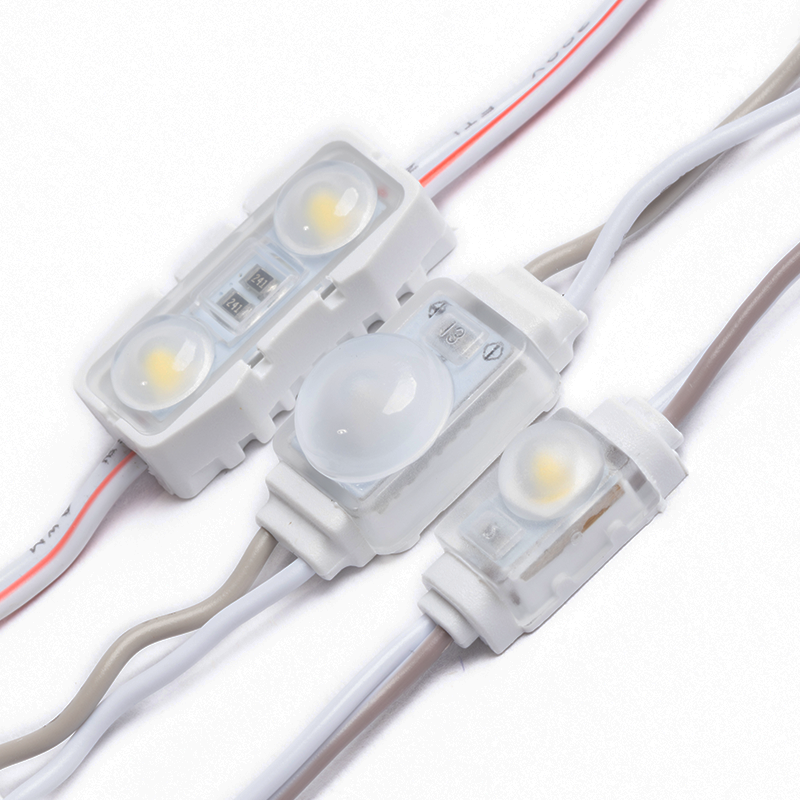

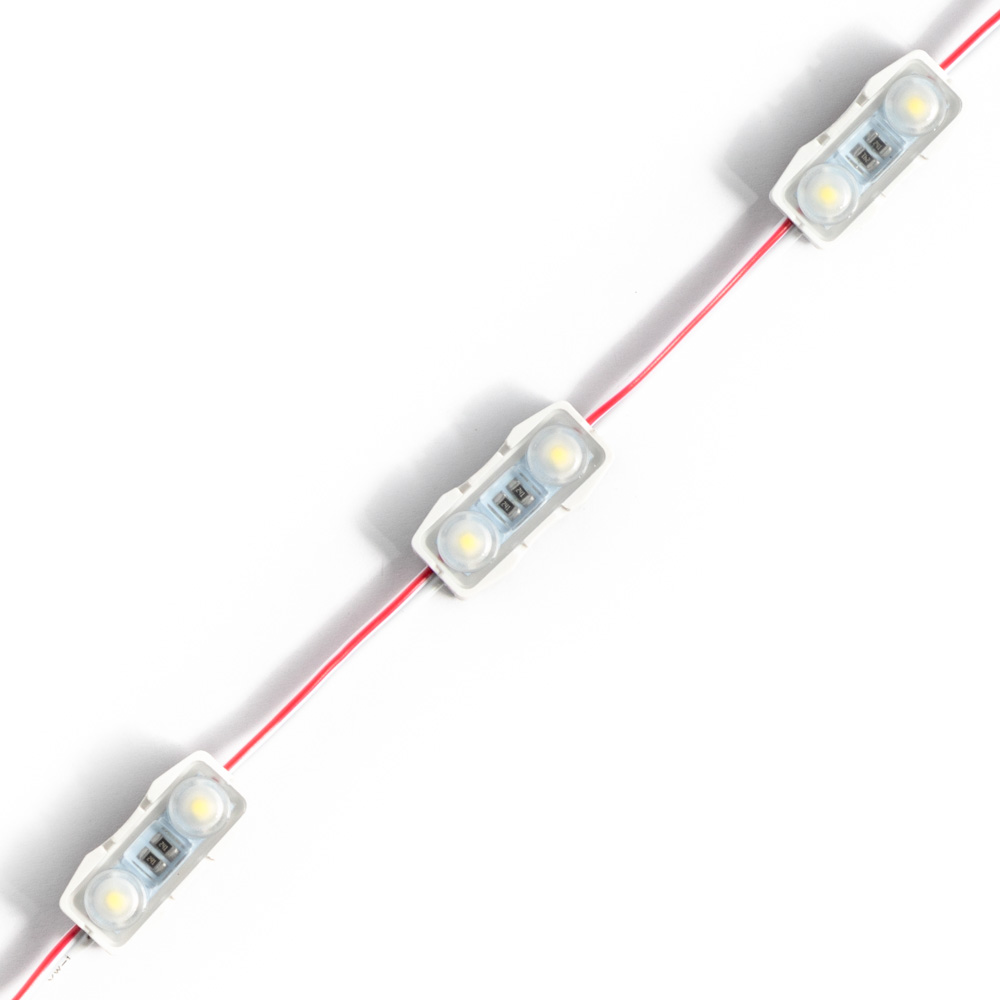

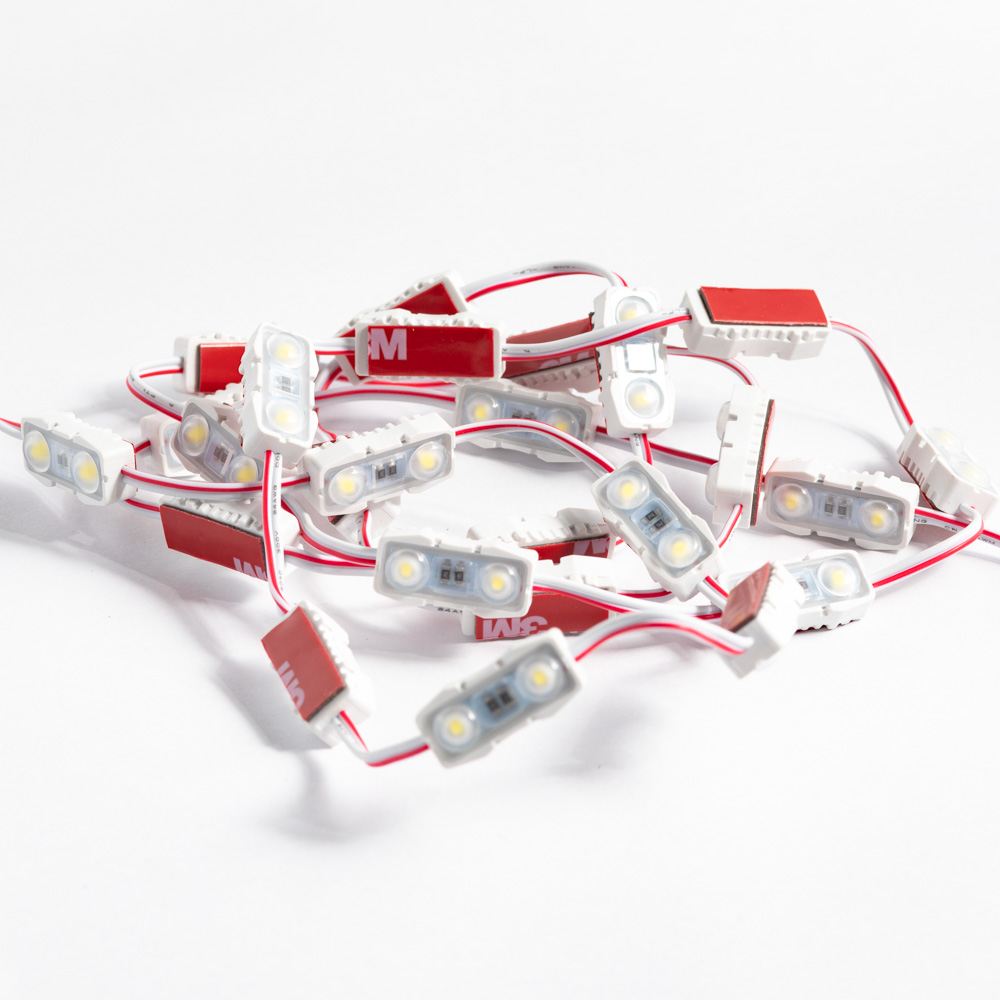

One of the smallest and most versatile LED modules on the market, the Nano is a jack-of-all-trades with an impressive 0.36W of power.

Product Specs

  • Power Output

    0.36W (12V)

  • Lumens

    40lm

  • Colours Available

    3000K, 6500K

  • Warranty

    5 Years

  • Dimensions

    27 x 9 x 8 mm

  • Max Series

    50 Modules Per Series

  • Includes

    100 Modules Per Pack

With an ultra compact design, the Nano can handle even the narrowest of channel letters and light-boxes, operating in the 30-60mm depth range.

The Nano’s superior 160º Batwing optics ensures consistent illumination, even in the tightest of light spaces. And with an impressive series length of 50 modules per chain, you can’t beat the Nano LED module for your indoor and outdoor commercial lighting projects. Nano is available in Warm White (3000K) and Cool White (6500K), with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Units

, , ,

Colour

3000K, 6500K

IP Rating

Product Type

LED Module

Voltage

12V

Power Output

0.36W

Installation guide

1

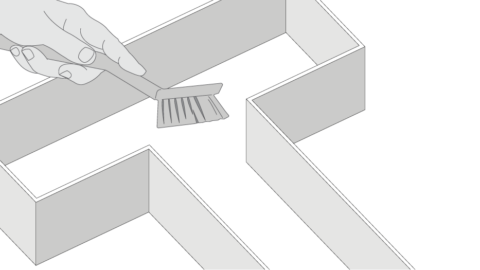

Ensure the inside of your channel letter or sign box is clean and free of debris.
2

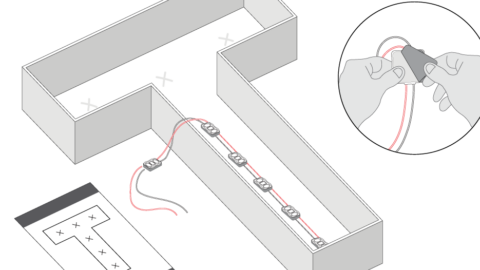

Using supplied LED layout, remove tape from the rear side and stick LED modules in place.
3

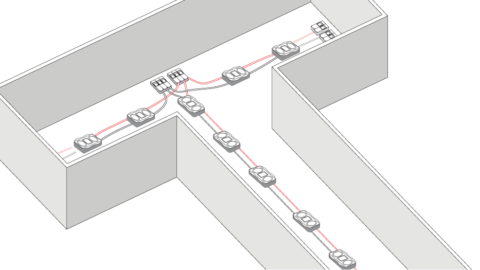

Working in low voltage WAGO connectors can be used to quickly wire LEDs in series or parallel. Do not exceed the maximum modules per series as this will result in voltage drop.
4
Secure the LEDs by gluing modules in place.
5

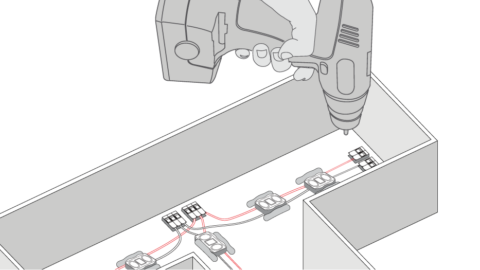

Drill holes out the back of the letters or sign box for connection to DC power supply.
6

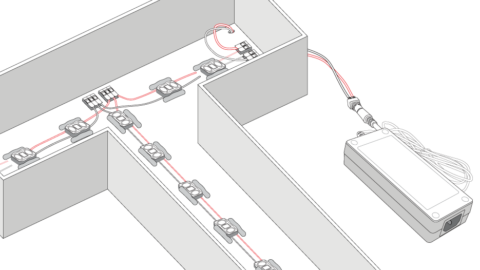

Wire the LED modules from the sign to the power supply. If there are multiple letters/signs they should be connected in parallel to eliminate voltage drop and ensure consistent brightness.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.

Frequently asked questions

Our Nano LED module has been designed for many indoor and outdoor lighting installations, and is excellent in the following applications:

  • Cabinet Lighting
  • Light Boxes
  • Channel Letters
  • Commercial Lighting
  • Indoor and outdoor applications
  • Backlit Installations
  • Dimmable (with controller)

Follow these steps on how to install the Nano LED module.

  1. Ensure the inside of your sign box is clean and free of debris.
  2. Using the supplied LED layout, remove tape from the rear side of the LED module and stick into place.
  3. Low voltage WAGO connectors can be used to quickly wire LEDs in series or parallel.
  4. Secure the LEDs by glueing modules in place.
  5. Drill holes out the back of your letter or sign box for connection to DC power supply.
  6. Wire the LED modules from the sign to the power supply.
  7. If there are multiple letters/signs they should be connected in parallel to eliminate voltage drop and ensure consistent brightness.

We have a range of dimmable drivers and controllers, suitable for use with the Nano LED module.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many LED modules you’ll need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many Nano LED modules you’ll need for your next project.
