Novaneon Pivot

Slim profile strip designed with lettering in mind

Product Specs

  • Power Output

    9W/m (12V)

  • Lumens

    330lm/m

  • Colours Available

    2700K, 6500K, Red, Blue, Yellow, Pink, Green, Orange

  • Warranty

    5 Years

  • Max Series

    5m Metres

  • Includes

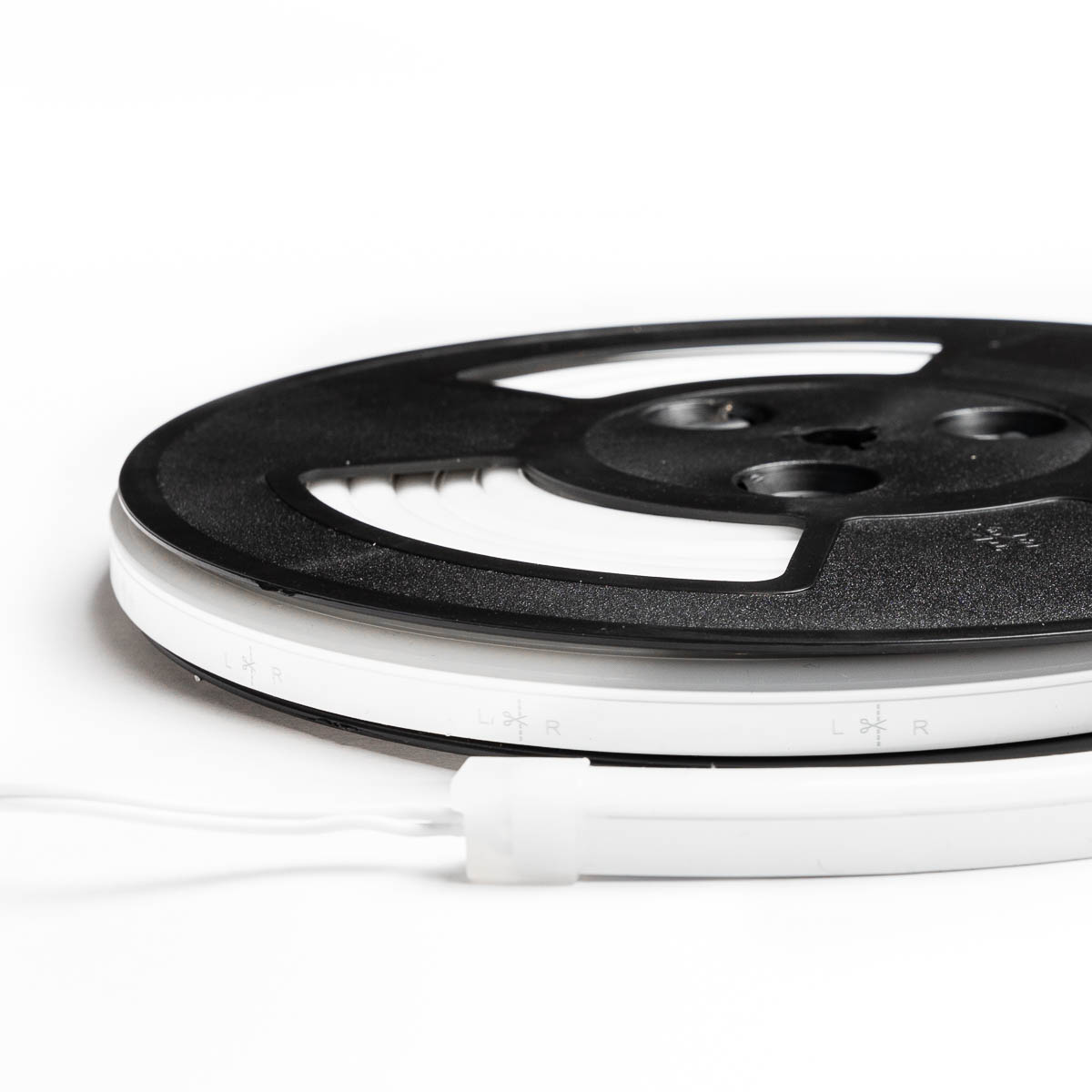

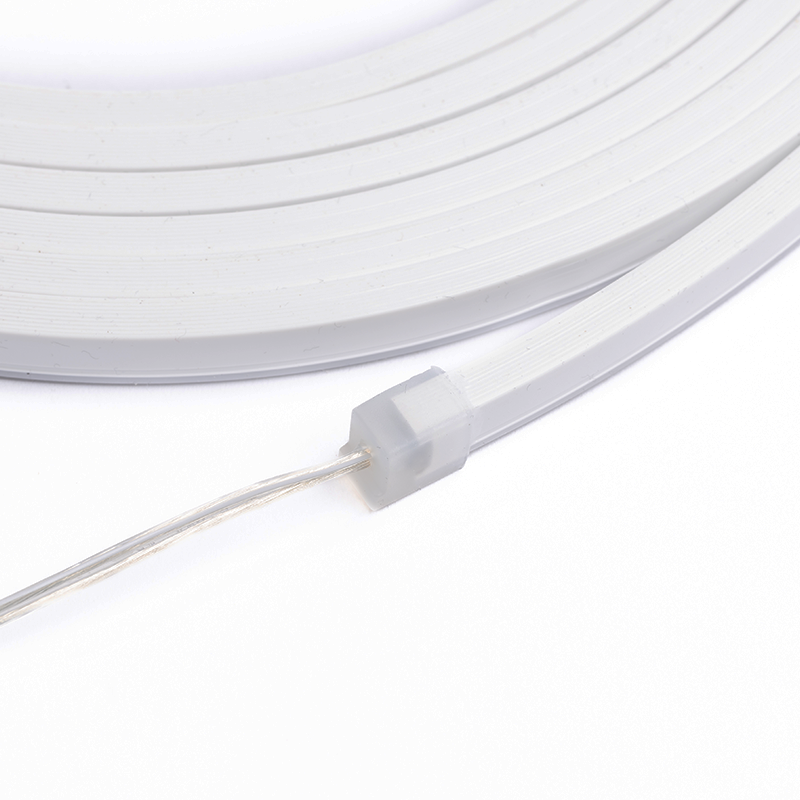

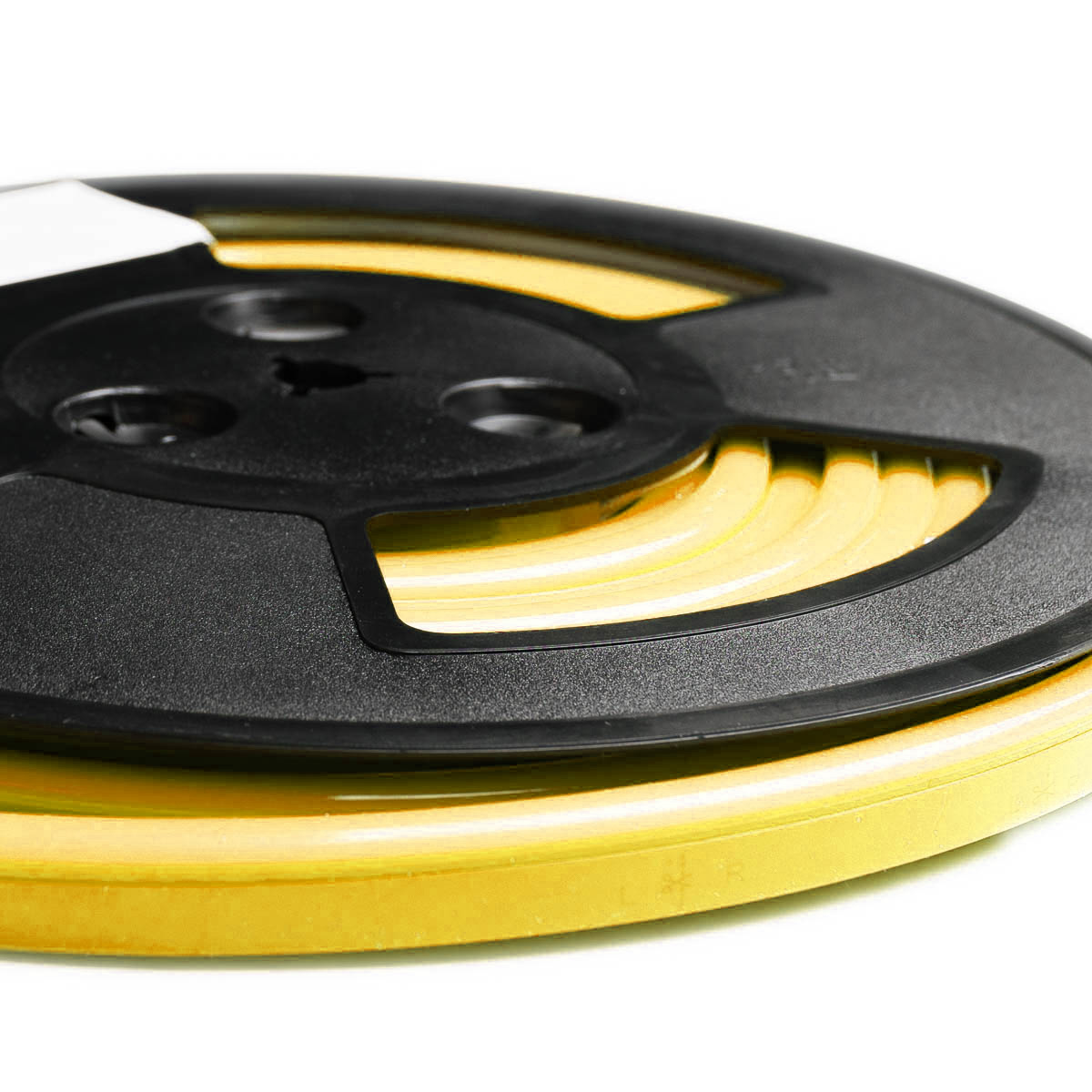

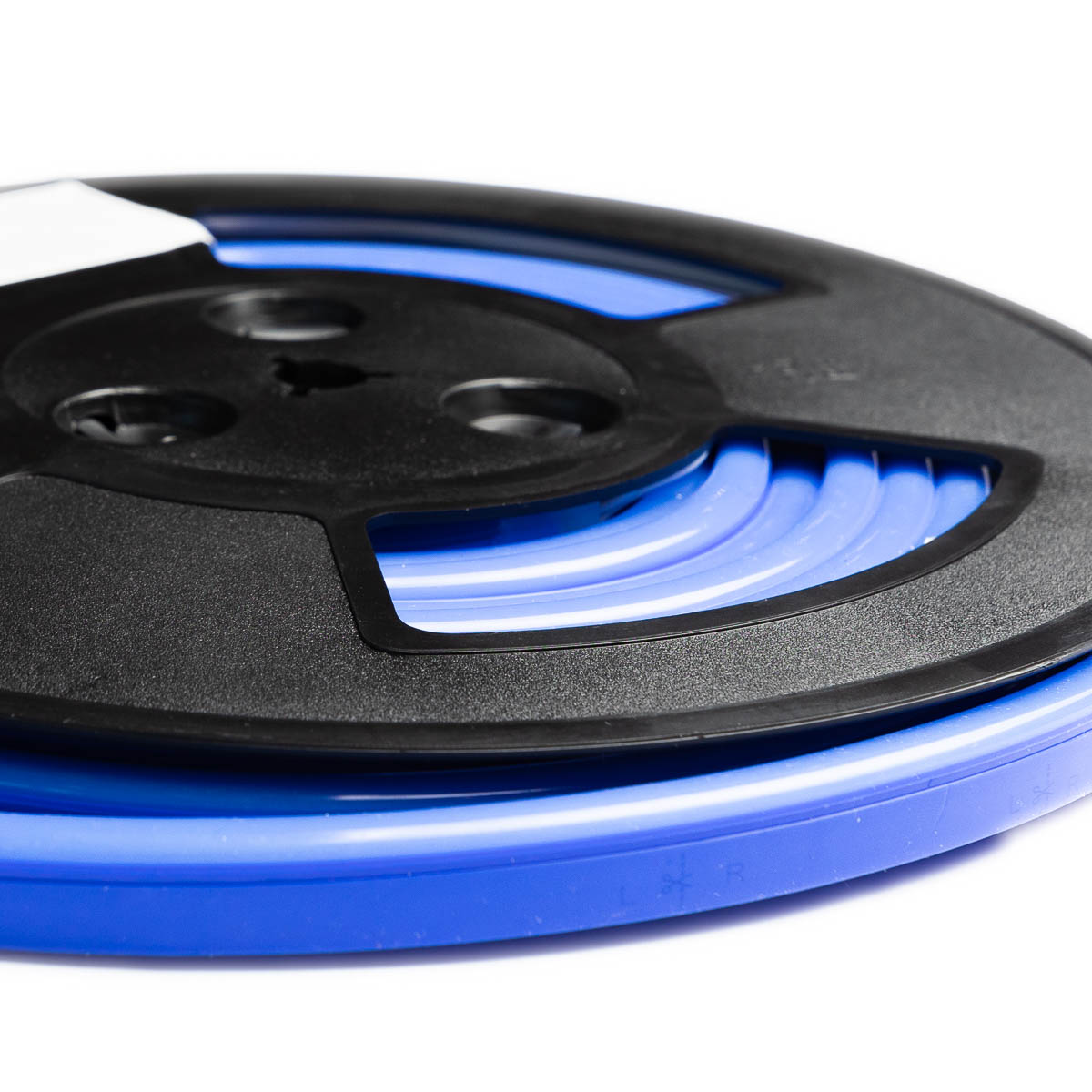

    Available in 5 Metre Rolls

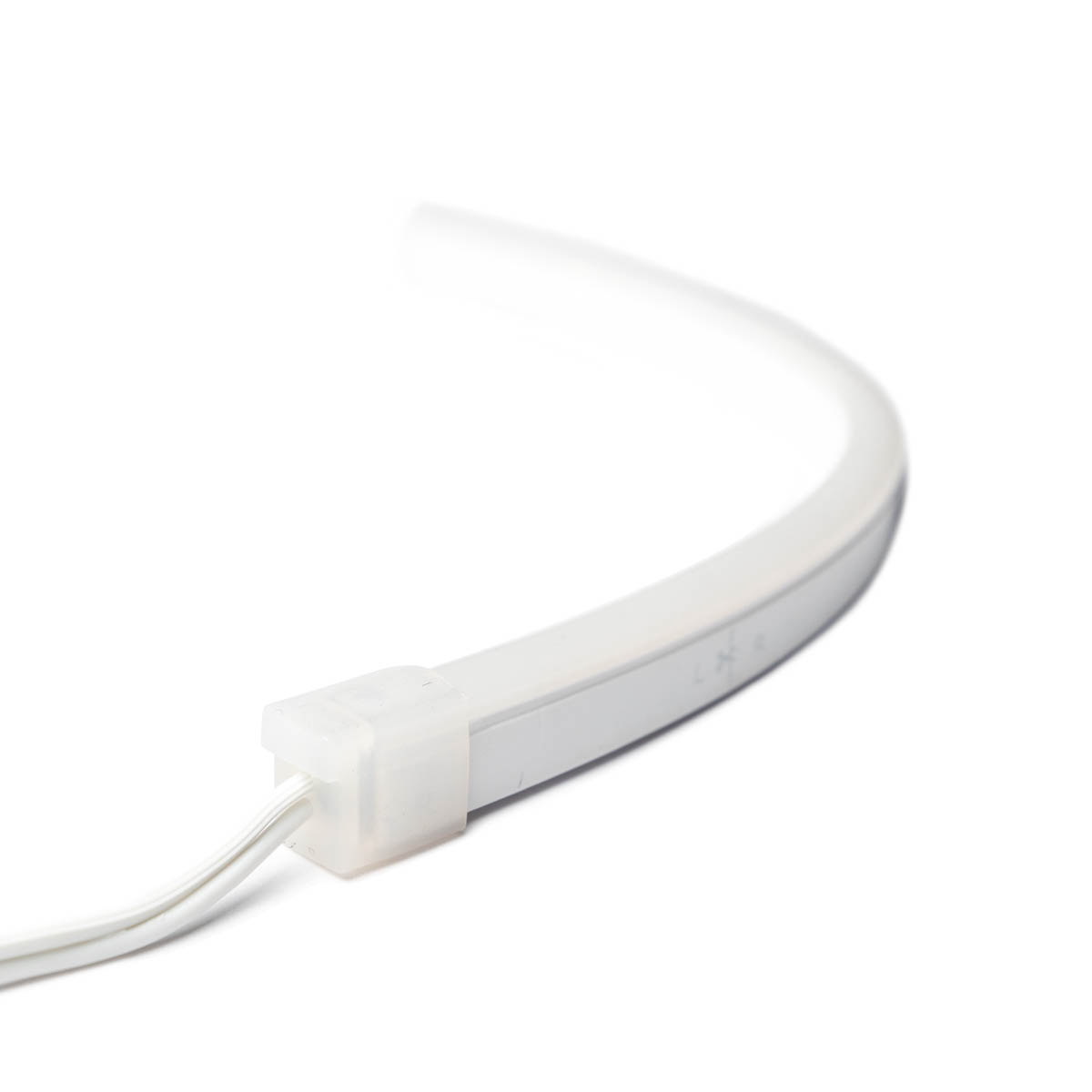

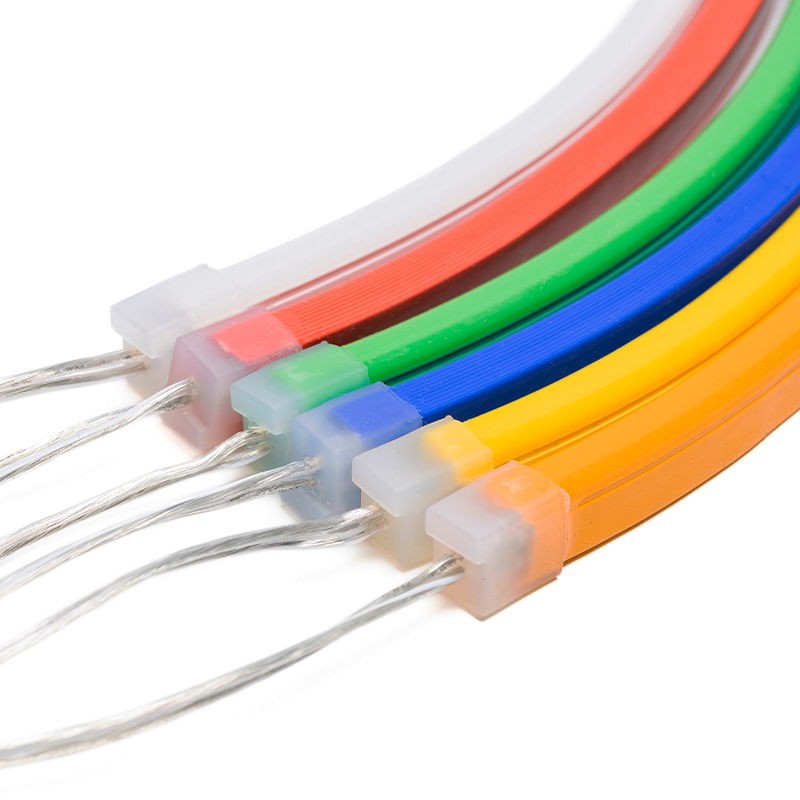

The slim profile Novaneon Pivot from Bounce LED is built with lettering in mind.

With a patent-pending solderless connector system, it’s easier than ever to achieve that classic neon look, with all the benefits of LED.

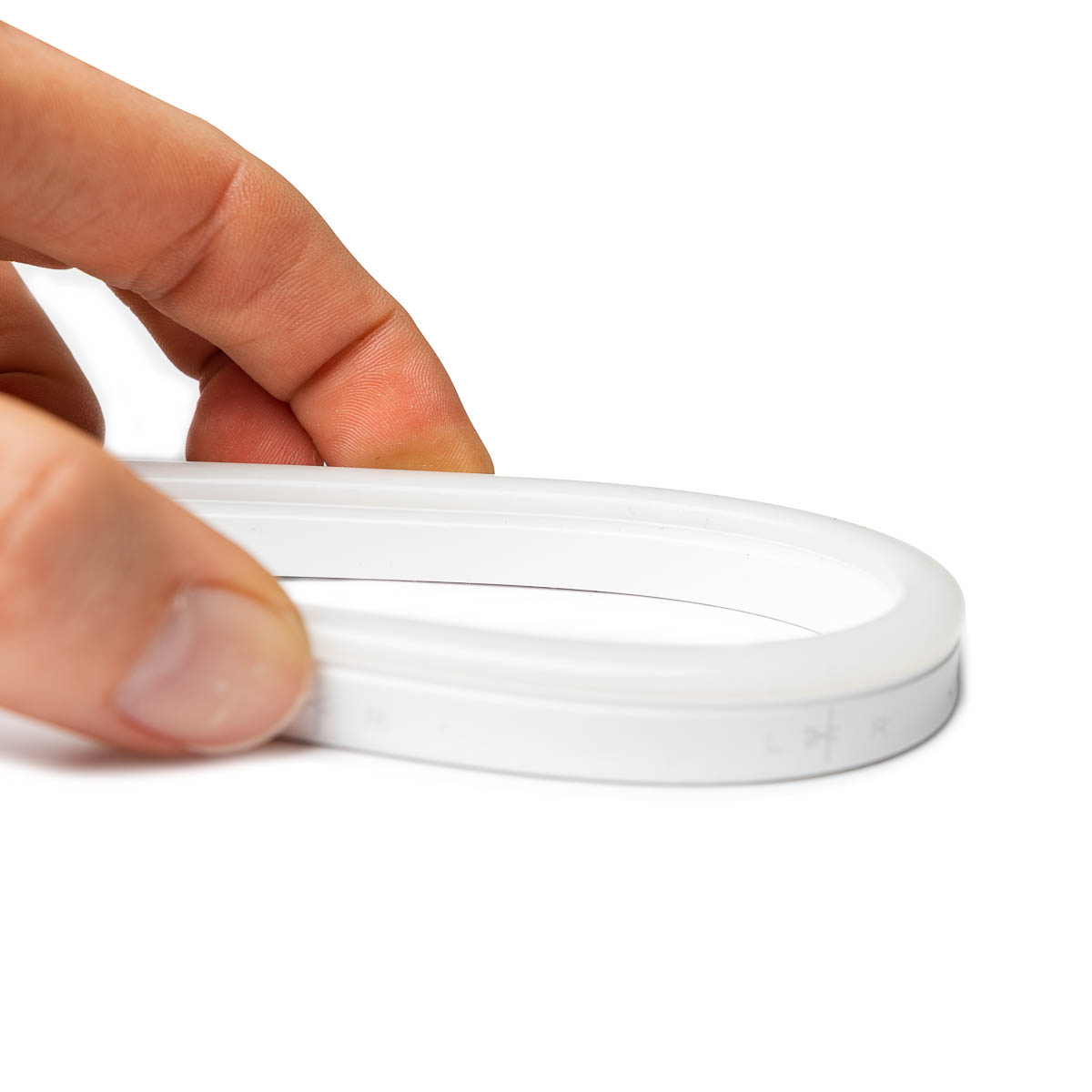

  • Flexible horizontal bending strip.
  • 7.5mm stroke width, cuttable every 8.3mm.
  • IP67 Rating, UV resistant, and salt mist proof.
  • Minimum bending diameter 30mm.

Find all the latest product specifications and guides below:

Units

, , ,

Colour

2700K, 6500K, BLUE, GREEN, Orange, PINK, RED, Yellow

IP Rating

Product Type

Neonflex

Voltage

12V

Power Output

9.6 W/M

Features

Dimmable

Installation guide

1
Cut material to length required using Novaneon Shears (cut only at intervals marked on the side of the casing).
2
Install clear PC terminals to both ends of Novaneon to prevent glue leaking to LED units.
3

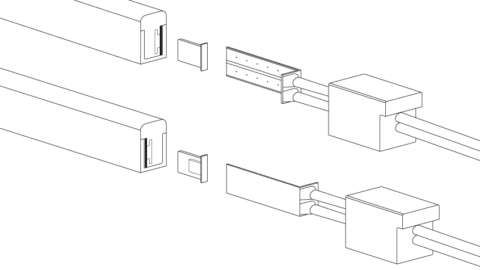

Choose Left or Right Side Connect and Insert Contact Strip: Insert Contact strip into cut end of Novaneon. Where the PCB is on the left side of the strip, use a left connector, where it is on the right side, use a right connector.
4

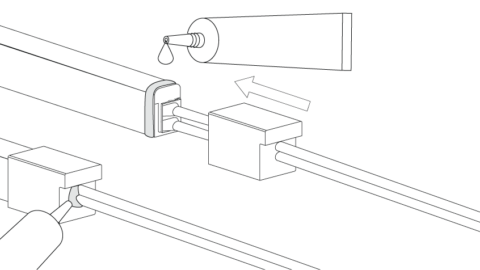

Slide Cover Over to Seal: Apply silicone glue to cut end of strip, and slide cover over. Also spread silicone to area near wire holes to fully seal. Clean up excess silicone with a clean cloth. Silicone will cure in 4 hours.
5

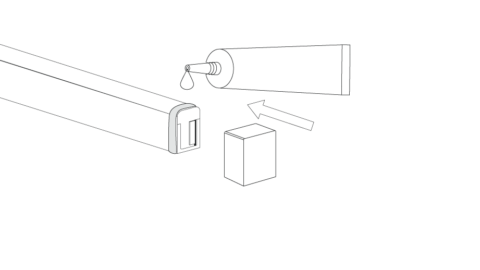

Install End Caps: Apply silicone glue to cut end of strip, and slide end cap over. Clean up excess silicone with a clean cloth. Silicone will cure in 4 hours.
6
Novaneon strip can be mounted using supplied clear clips. When handling strip, take care to only bend horizontally and do not twist/stretch strip as this may damage internal components.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.
