Prism Synergy Micro

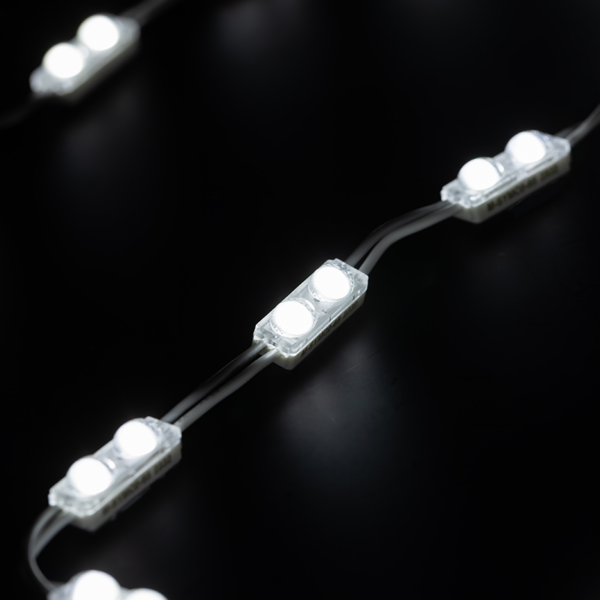

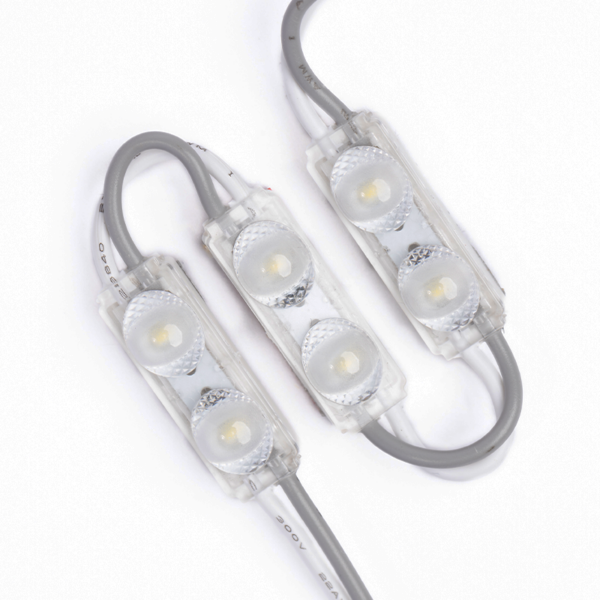

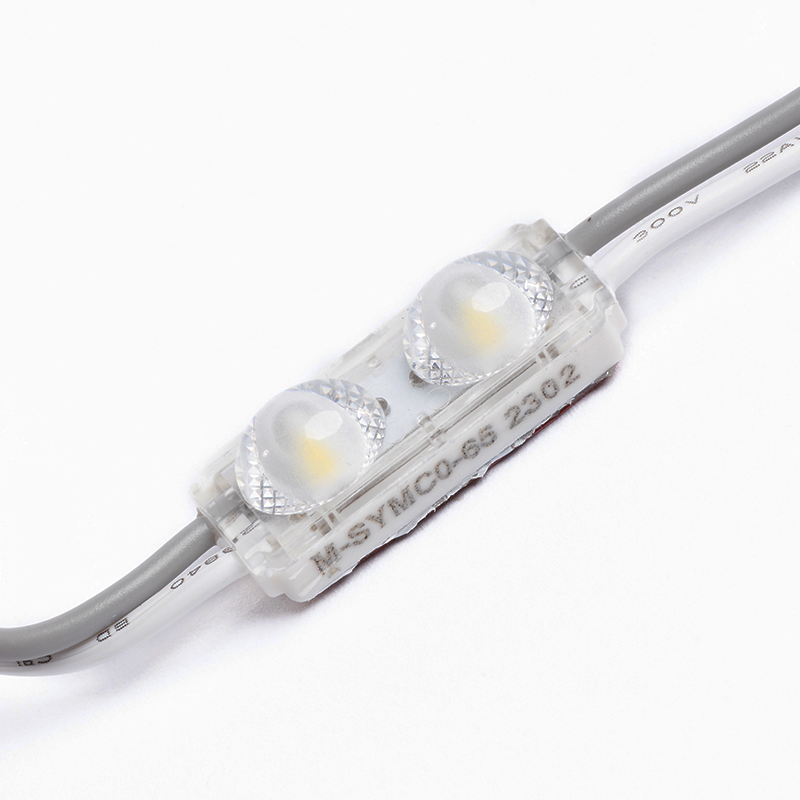

Meet Prism Synergy Micro, our versatile small 24V LED module that’s perfect for tight corners and narrow channel letters.

Product Specs

  • Power Output

    0.28W (24V)

  • Lumens

    163 lm/W

  • Colours Available

    3000K, 6500K

  • Ingress Protection

    IP67

  • Dimensions

    25.9 x 8.9 x 9.4mm

  • Warranty

    Life of Sign

  • Max Series

    60 Modules Per Series

  • Includes

    120 Modules Per Pack

As a dimmable, all-purpose small LED module, Prism Synergy Micro is ideal for tight cornered cabinets, narrow stroke channel letters, small lightboxes and backlit lighting projects.

With the ability to run an amazing 60 LED modules per series with constant current technology, Micro is an excellent indoor and outdoor LED lighting module, with the latest 160º “Batwing” optic design. Prism Synergy Micro LED module is available in Warm White (3000K) and Cool White (6500K) colour variants, all with an impressive Life of Sign Warranty.





Find all the latest product specifications and guides below:

Features

Dimmable

Installation guide

1
Ensure the inside of your channel letter or sign box is clean and free of debris.
2

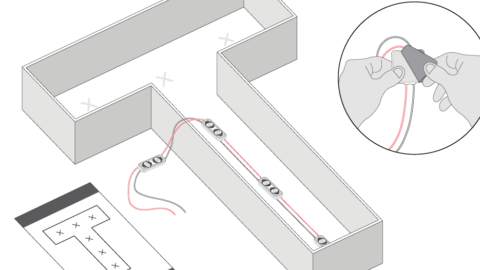

Using supplied LED layout, remove tape from the rear side and stick LED modules in place.
3
Working in low voltage, WAGO connectors can be used to quickly wire LEDs in series or parallel. Do not exceed the maximum modules per series as this will result in voltage drop.
4

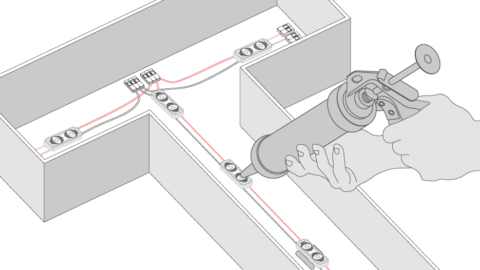

Secure LEDs by gluing modules in place.
5

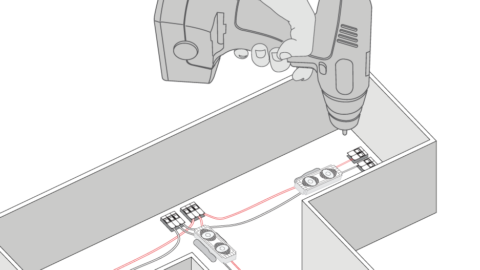

Drill holes out the back of the letters or sign box for connection to DC power supply.
6

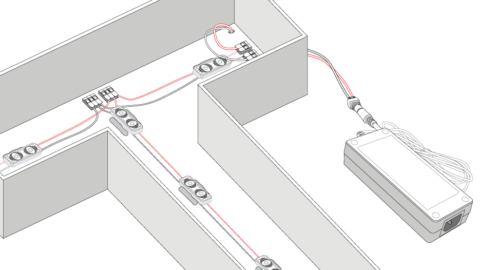

Wire the LED modules from the sign to the power supply. If there are multiple letters/signs they should be connected in parallel to eliminate voltage drop and ensure consistent brightness.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.
