SupaCOB Premium

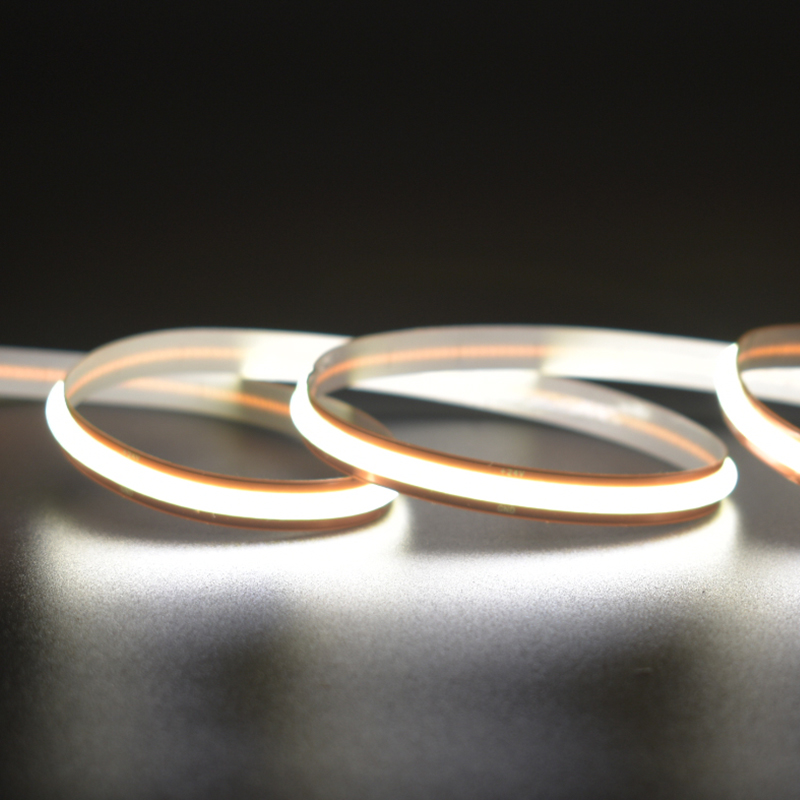

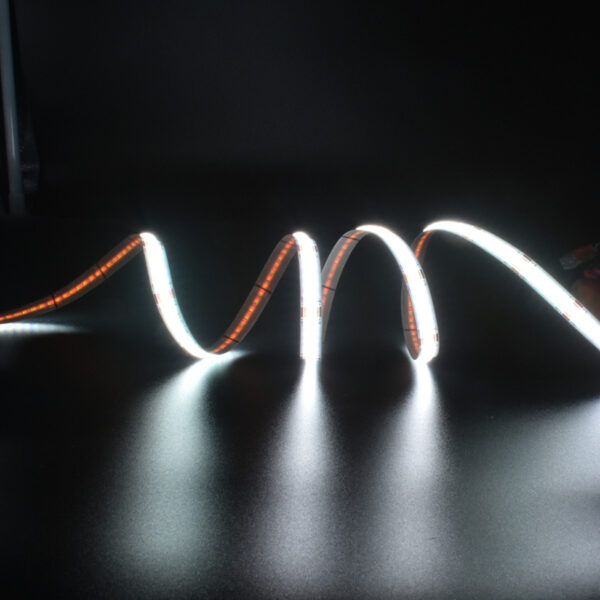

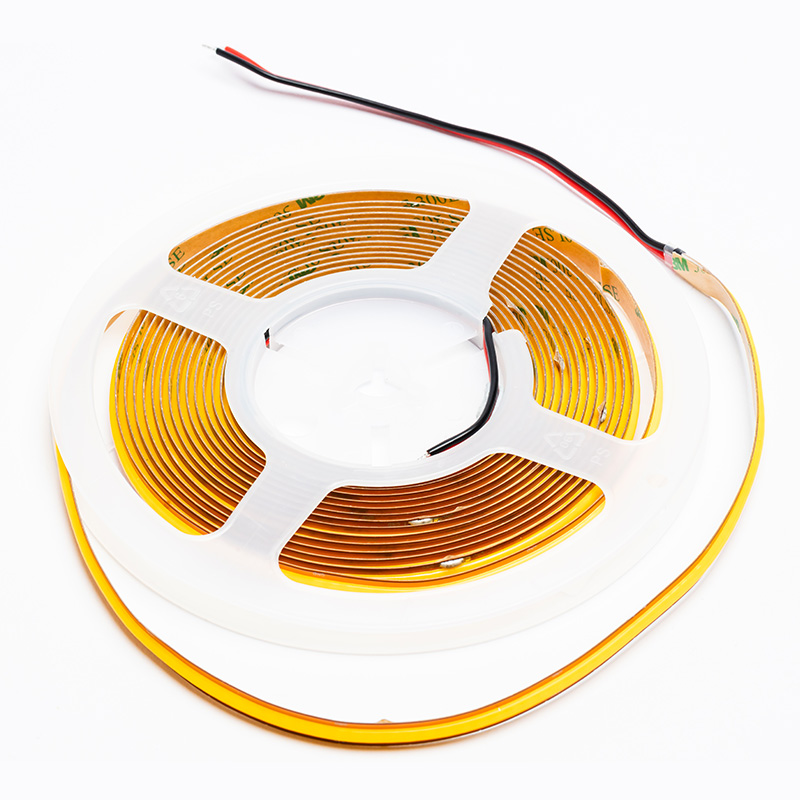

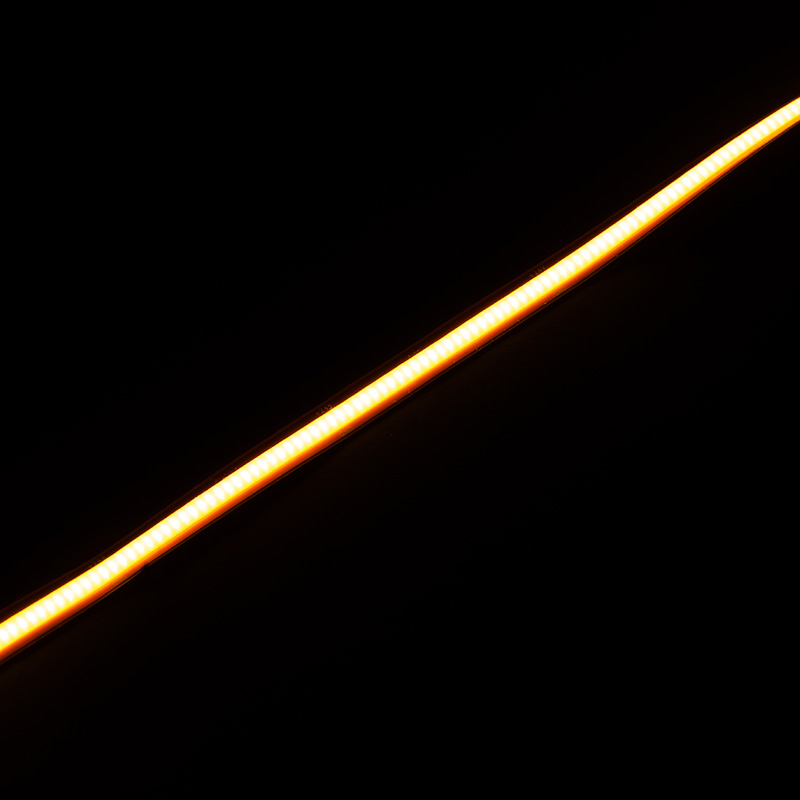

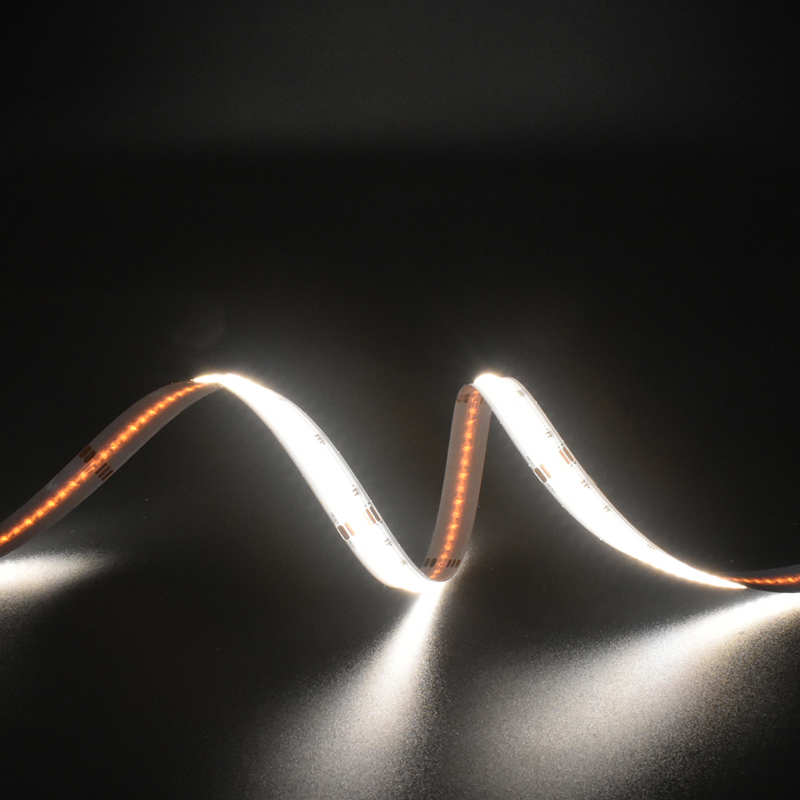

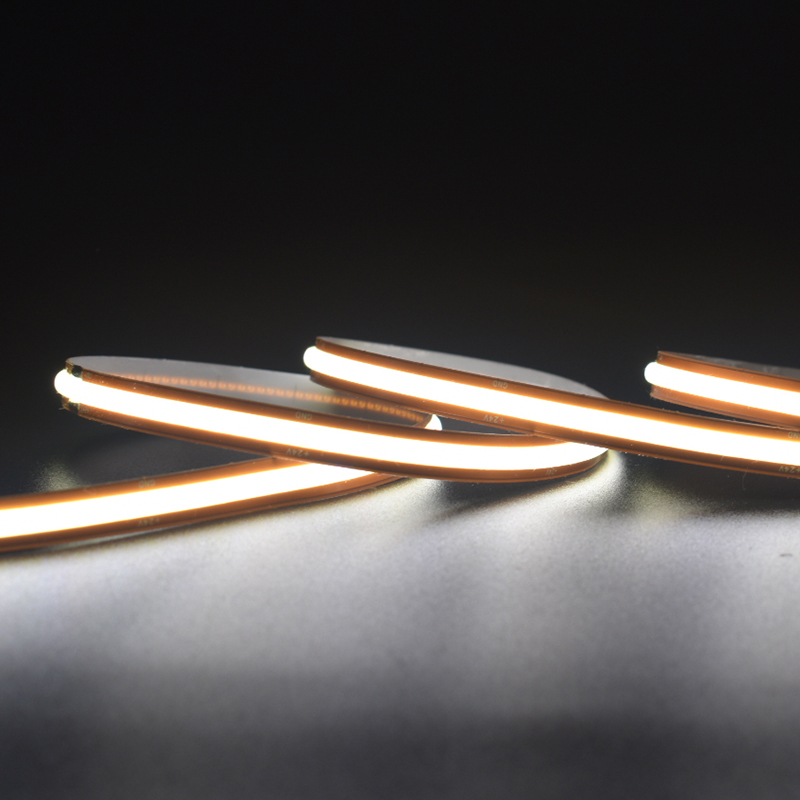

SupaCOB Premium Range has been purpose-designed for indoor shopfitting and architectural lighting applications, providing 24V dotless linear LED lighting up to a 5m run. Easily cut to your desired size, the SupaCOB Premium 3000K is excellent in the following applications:

• Cabinet Lighting
• Light Boxes
• Shopfitting
• Architectural Lighting
• Dimmable (with controller)

Follow these steps on how to install the SupaCOB Premium 24V LED strip light.

1. Cut the LED strip to your required size, ensuring to only cut at marked intervals. Do not exceed the maximum series length to avoid voltage drop.

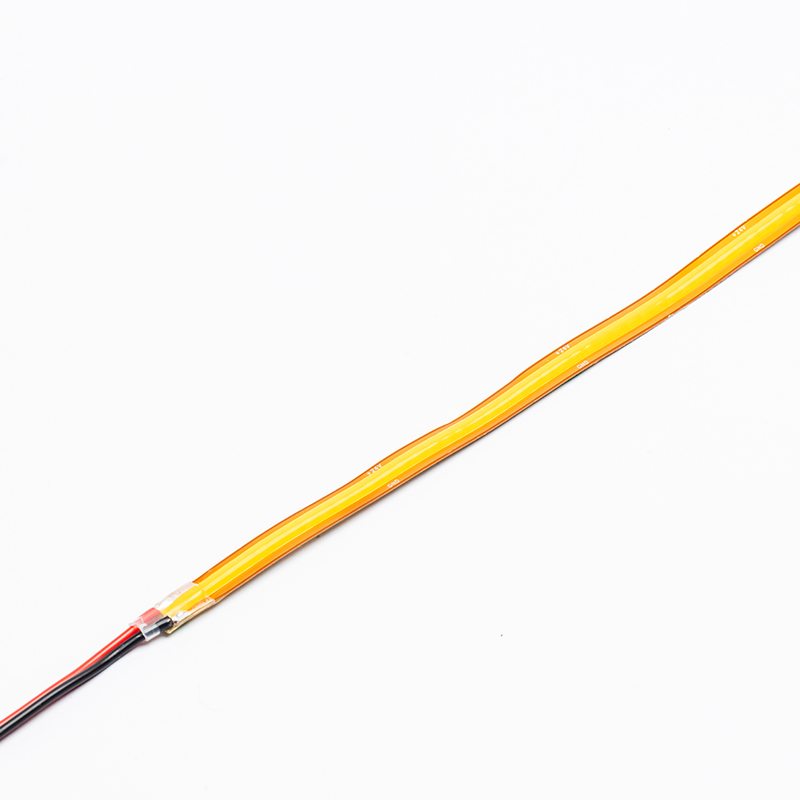

2. Solder connecting ‘wire tails’ to terminals for connection to power supply, or to ‘bridging wire’ for linking strips together. Always ensure positive-to-positive and negative-to-negative connection.
3. Apply glue to the inside of the end cap, then push the cap onto the LED strip, ensuring to wipe away any excess glue.
4. Use the end cap with holes to seal your wire tail end. Wait for all the glue to dry before powering on.
5. Ensure your application area is clean and free of debris, remove the adhesive liner from the back of the SupaCOB strip and press into place.
6. Connect to a suitable power supply, and dimmer/controller if required, and test.
7. You can install the SupaCOB Premium 3000K LED strip light in a continuous run for up to 5m. Always check the max series to avoid a voltage drop.

The SupaCOB Premium LED strip light can be used in conjunction with our range of dimmable drivers and controllers.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many modules you need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many metres of SupaCOB Premium LED strip you’ll need for your next project.
