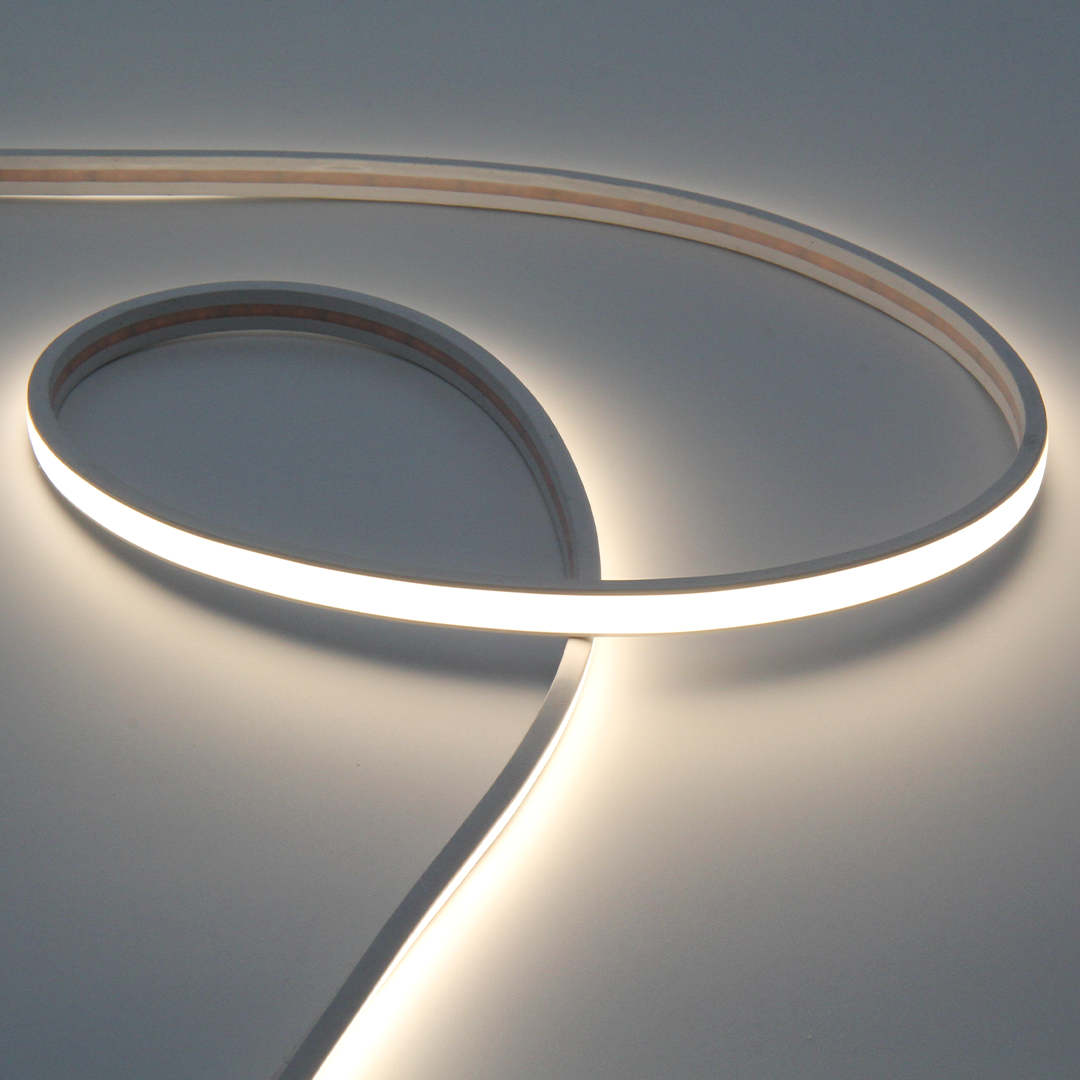

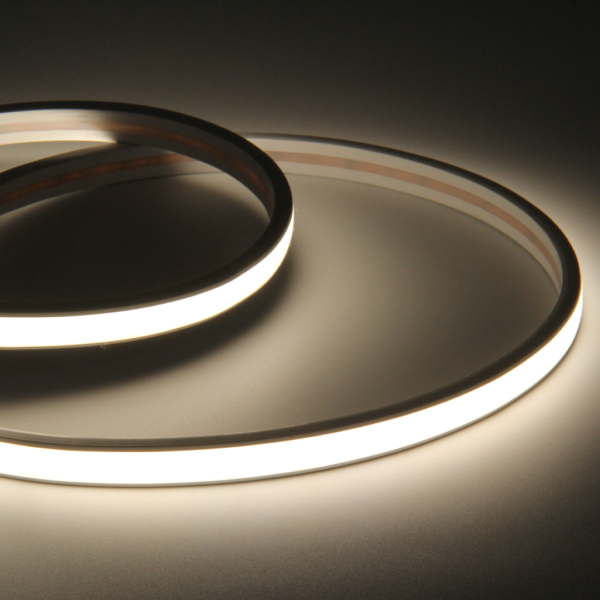

If you are looking for linear architectural feature lighting, look no further than Supaflex Neonflex 1005 – our dotless LED strip lights. Flexible and waterproof – perfect for outdoor application.

Product Specs

  • Power Output

    7.2 W/m (24V)

  • Lumens

    618lm/m

  • Colours Available

    3000K, 4000K, 5000K

  • Warranty

    5 Years

  • Dimensions

    10mm (W) x 4.8mm (H)

  • Includes

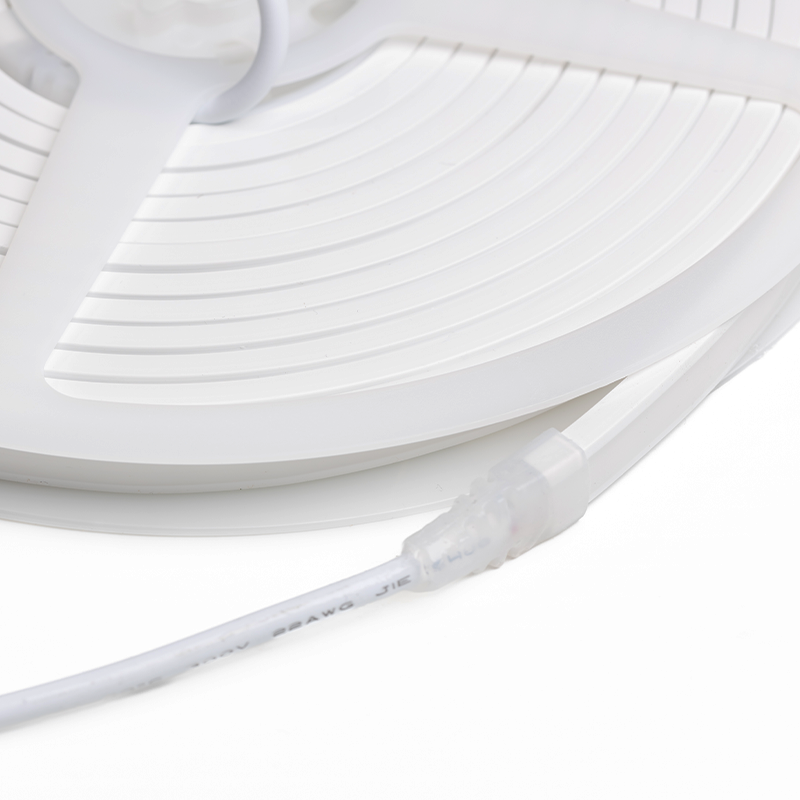

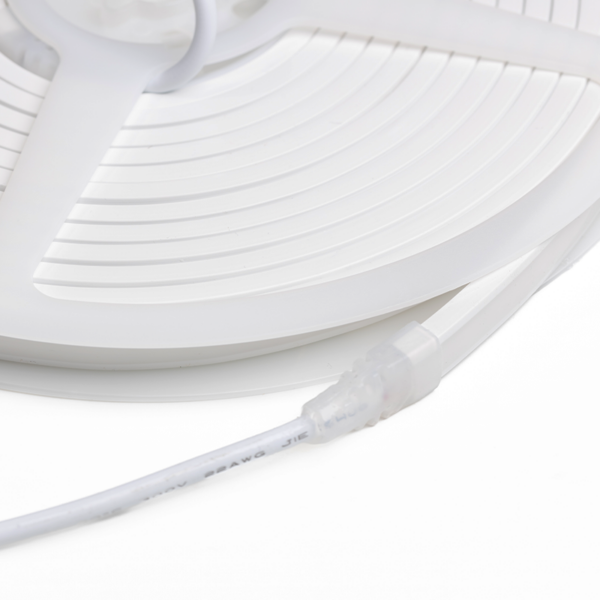

    5 Metre Roll (Connector Pack Included)

Looking for impressive, neon style linear lighting?

Supaflex Neonflex is our versatile cut-to-size range that’s easy to install, making it ideal for building and architectural feature lighting applications. Housed in a flexible silicone sleeve with flexible vertical bending capability, our dotless led strip lights can be used indoors and outdoors, and they are UV resistant and salt mist proof. Supaflex Neonflex 1005 is available in Warm White (3000K), Natural White (4000K) and Pure White (5000K) colour variants, all with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Units

, , ,

Colour

3000K, 4000K, 5000K
IP Rating

Product Type

Neonflex
Voltage

24V
Power Output

7.2W/M
Features

Dimmable

Installation guide

1
Cut material to the length required using Novaneon Shears (cut only at the marked intervals on the underside of the casing).
2
To connect to power, cut away a short section of the silicone casing to reveal the soldering pad.
3
Solder the wire tails to the terminals for connection to power supply. Always ensure positive to positive and negative-negative connection.
4

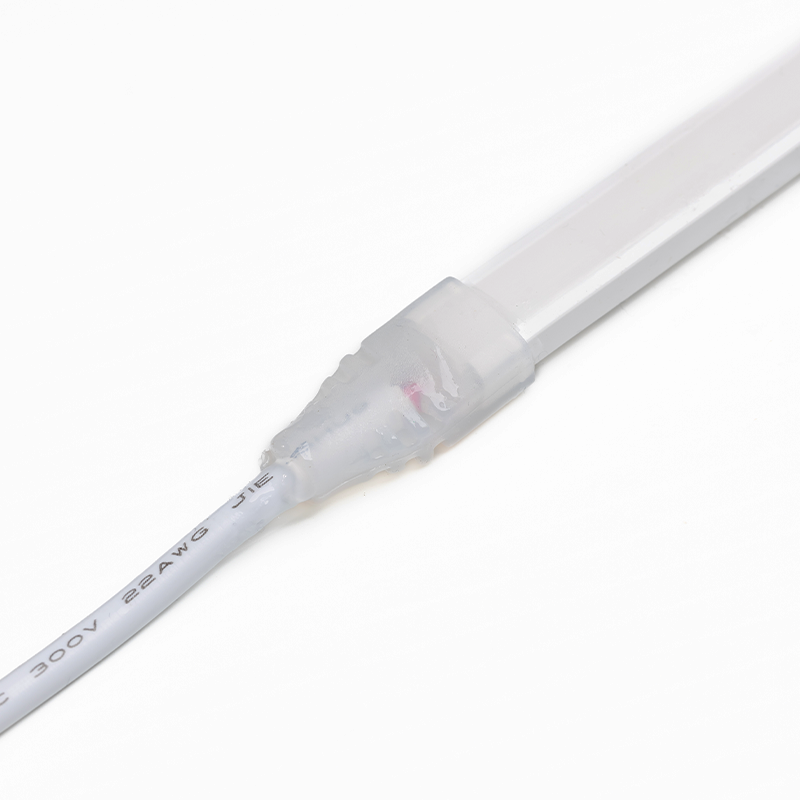

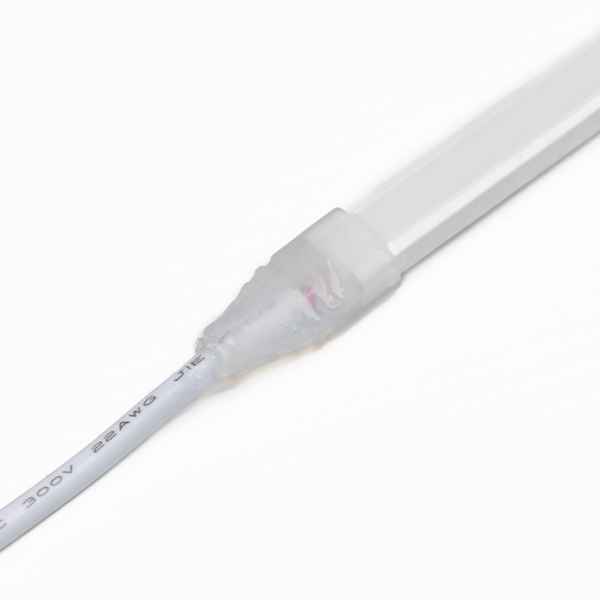

Seal the wired end: use the end cap with hole & thread the soldered wire tails through. Apply glue to the inside of the end cap, and push onto the LED strip, wiping off any excess glue. Wait for glue to dry before powering on.
5

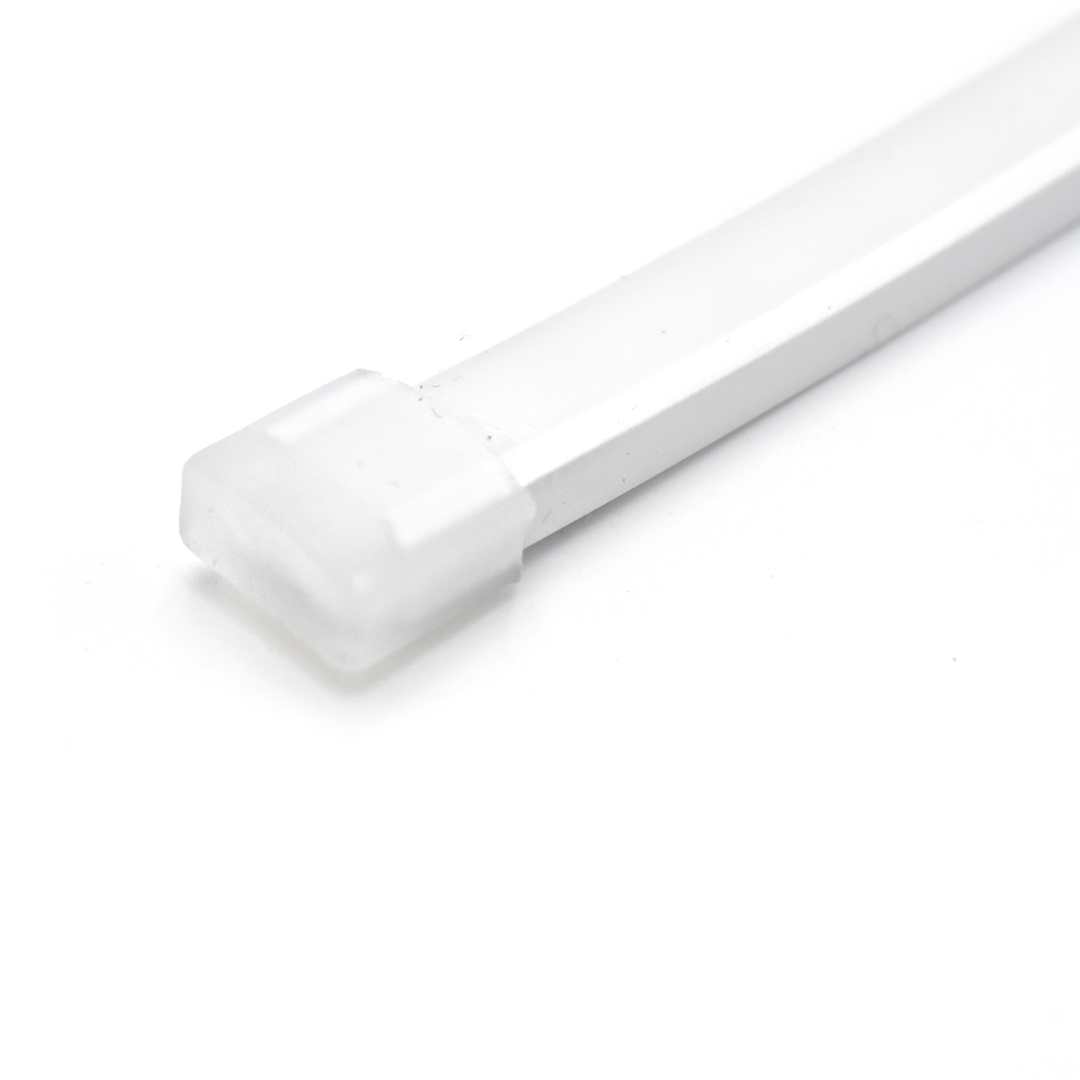

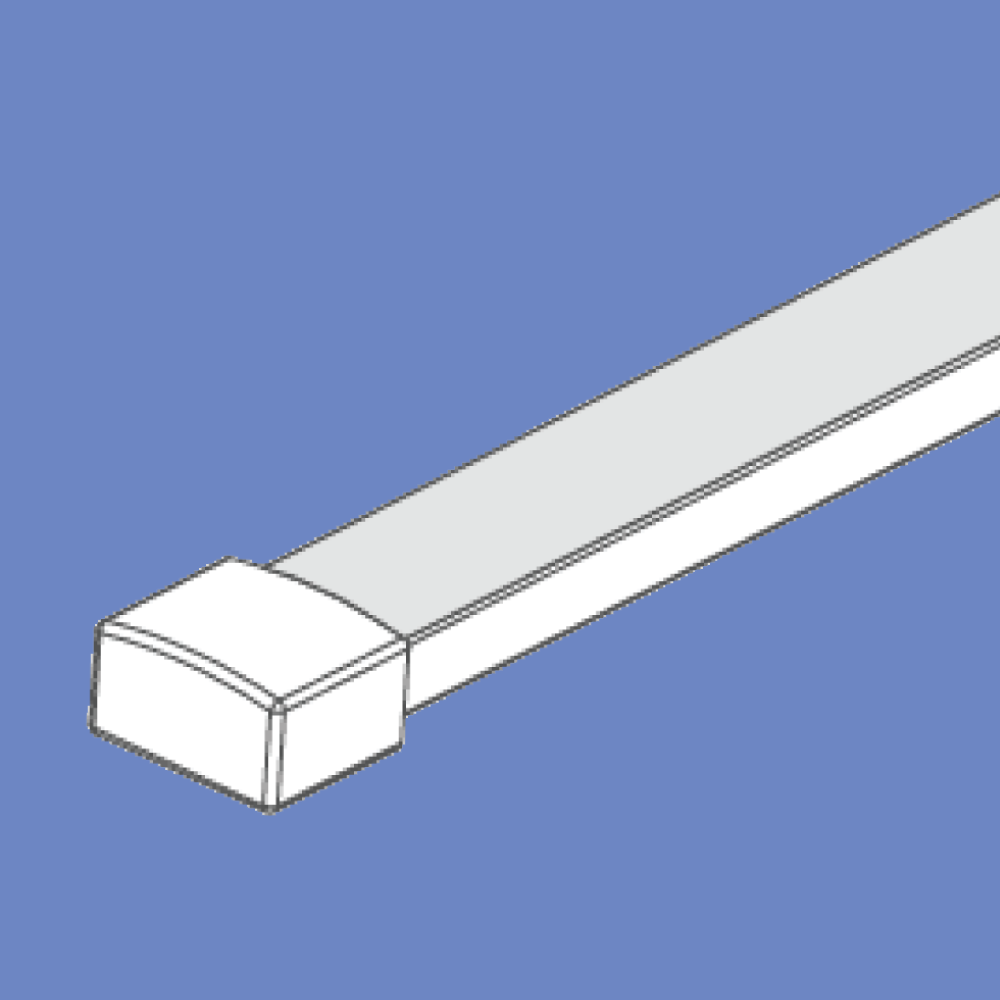

To seal terminating end, apply glue to the inside of the end cap and wipe off any excess glue.
6
When handling the Neonflex, take care to only bend vertically and avoid twisting or stretching the strip, as this may damage the internal components.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.

Frequently asked questions

The Supaflex Neonflex 1005 has been purpose-designed for building and architectural feature lighting applications. Easily cut to your desired size, you can run these 24V dotless LED strip lights up to 5m in a single run. With vertical bending capability, the Supaflex Neonflex 1005 is excellent in the following applications:

  • Building Feature Lighting
  • Architectural Lighting
  • Indoor and Outdoor
  • LED Neon
  • Dimmable (with controller)

Follow these steps on how to install the Supaflex Neonflex 1005 dotless LED strip lights.

  1. Cut the LED strip to your required size using our Novaneon Shears, ensuring to only cut at marked intervals.
  2. To connect to power, cut away a short section of the silicone casing to reveal the soldering pad.
  3. Solder the wire tails to the terminals for connection to power supply. Always ensure positive-to-positive and negative-to-negative connection.
  4. To seal the wired end, use the end cap with a whole and thread the soldered wire tails through. Apply glue to the inside of the end cap, then push the cap onto the LED strip, ensuring to wipe away any excess glue. Wait for all the glue to dry before powering on.
  5. To seal the terminating end, apply glue to the inside of the end cap and wipe off any excess glue.
  6. When handling the Neonflex, take care to only bend vertically and avoid twisting or stretching the strip, as this may damage the internal components.
  7. You can install the Supaflex Neonflex 1005 LED strip light in a continuous run for up to 5m. Always check the max series to avoid a voltage drop.

Our Supaflex Neonflex 1005 comes with a Connector Pack that contains silicone glue, 4 end caps and 4 front caps with 300mm Cable. We also have Aluminium mounting clips available – speak with our team to find out more.

Supaflex Neonflex 1005 dotless LED strip lights can be used with our range of dimmable drivers and controllers; these are suitable for use with the entire Supaflex range.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many modules you’ll need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many metres of Supaflex Neonflex 1005 dotless LED strip light you’ll need for your next project.
