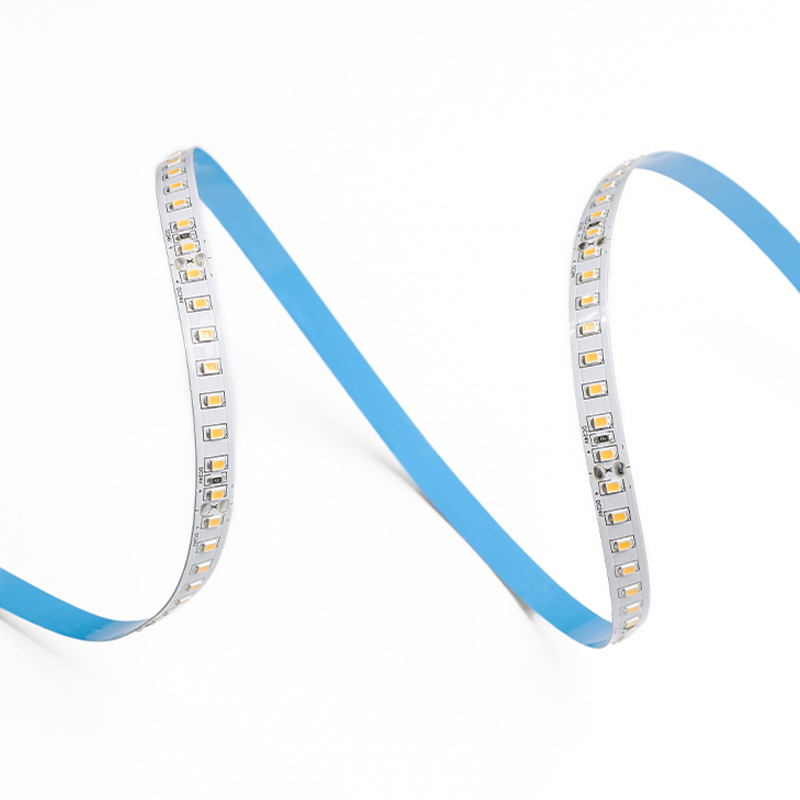

Supaflex 128

Light up to 6.5m in a single run, with Supaflex 128 – our versatile LED strip light.

Product Specs

  • Power Output

    11.52 W/m (24V)

  • Lumens

    1486lm/m

  • Colours Available

    3000K, 4000K, 5000K, 6500K

  • Warranty

    5 Years

  • Max Series

    6.5 Metres

  • Includes

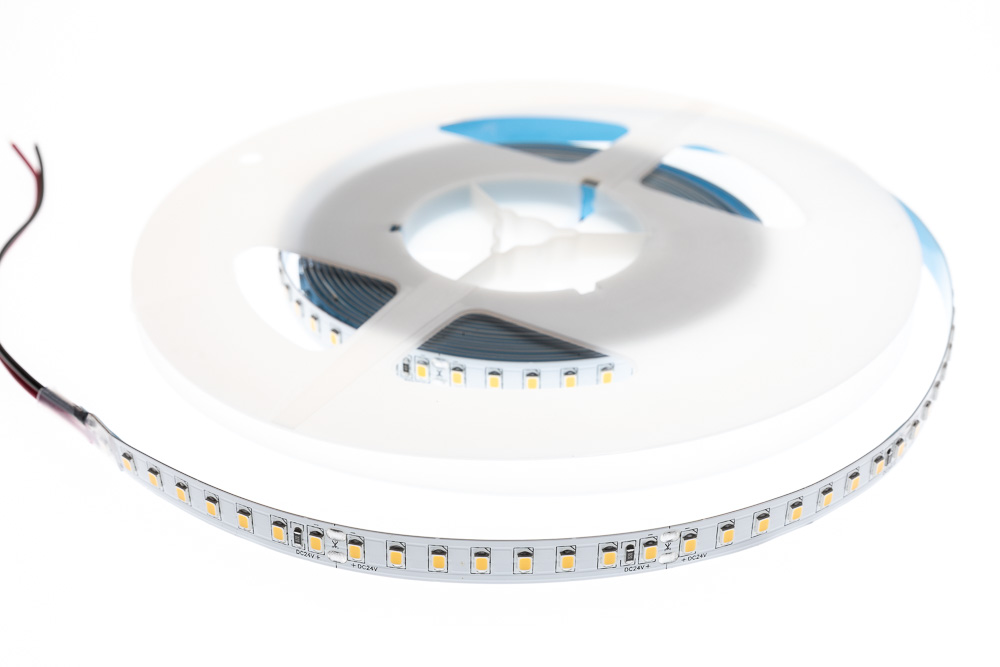

    Available in 5 Metre Rolls

Our versatile cut-to-size Supaflex range was purpose-built for shopfitting and architectural lighting applications.

Experience ultra high-colour rendering with a 95+ CRI (Colour Rendering Index), and excellent electrical efficiency with the Supaflex 128 24V indoor LED strip light. Providing bright and even illumination up to 6.5m per series, the Supflex 128 LED light strip can be combined with Supachannel, our anodised aluminium LED diffuser channel, for an easy, all-in-one dotless LED lighting solution. Supaflex 128 is available in Warm White (3000K), Natural White (4000K), Pure White (5000K) and Cool White (6500k) colour variants, all with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Units

, , ,

Colour

3000K, 4000K, 5000K, 6500K

IP Rating

Product Type

LED Strip

Voltage

24V

Power Output

11.52 W/M

Features

Dimmable

Installation guide

1

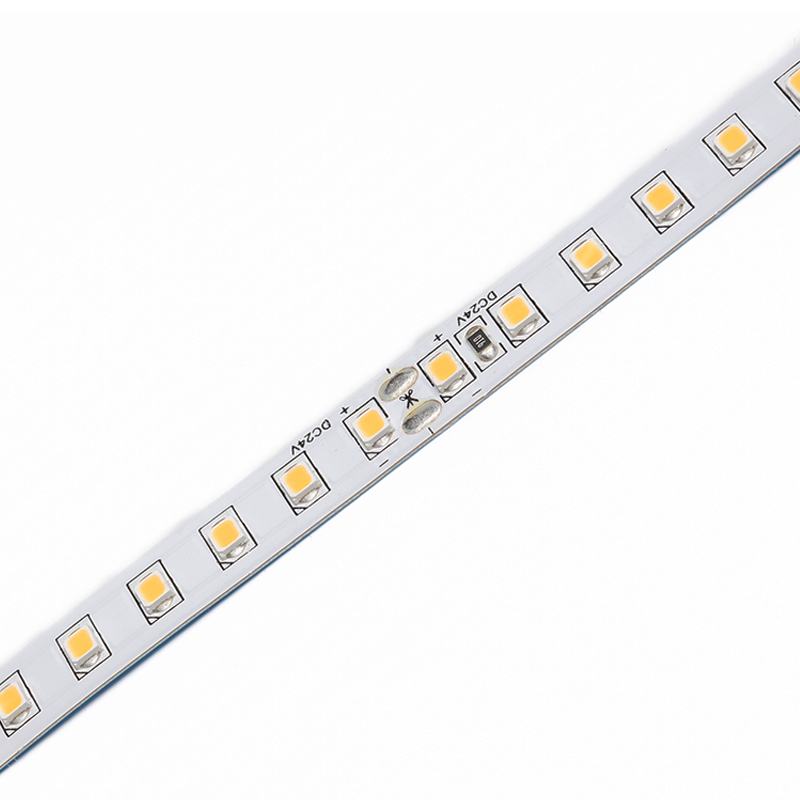

Cut LED strip to required size, taking care to only cut at intervals marked on the product. Note the maximum series length to avoid voltage drop.
2
Solder connecting ‘wire tails’ to terminals for connection to power supply, or for ‘bridging wires’ for linking of strip segments. Always ensure positive-positive and negative-negative connection.
3
Apply glue to the inside of the end cap, then push it onto the LED strip, ensuring to wipe off any excess glue.
4
Use end cap with holes to seal wire tail. Wait for all glue to dry before powering on.
5
Ensure that your application area is clean and free of debris. Remove adhesive liner from the back of strip and press flex strip into place.
6
Connect to suitable power supply (and dimmer/controller if required) and test.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.

Frequently asked questions

Supaflex 128 has been purpose-designed for indoor shopfitting and architectural lighting applications, providing 24V dotless linear LED lighting up to a 6.5m run. Easily cut to your desired size, the Supaflex 128 is excellent in the following applications:

  • Cabinet Lighting
  • Light Boxes
  • Shopfitting
  • Architectural Lighting
  • Dimmable (with controller)

Follow these steps on how to install the Supaflex 128 24V LED strip light.

  1. Cut the LED strip to your required size, ensuring to only cut at marked intervals. Do not exceed the maximum series length to avoid voltage drop.
  2. Solder connecting ‘wire tails’ to terminals for connection to power supply, or to ‘bridging wire’ for linking strips together. Always ensure positive-to-positive and negative-to-negative connection.
  3. Apply glue to the inside of the end cap, then push the cap onto the LED strip, ensuring to wipe away any excess glue.
  4. Use the end cap with holes to seal your wire tail end. Wait for all the glue to dry before powering on.
  5. Ensure your application area is clean and free of debris, remove the adhesive liner from the back of the Supaflex strip and press into place.
  6. Connect to a suitable power supply, and dimmer/controller if required, and test.
  7. You can install the Supaflex 128 LED strip light in a continuous run for up to 6.5m. Always check the max series to avoid a voltage drop.

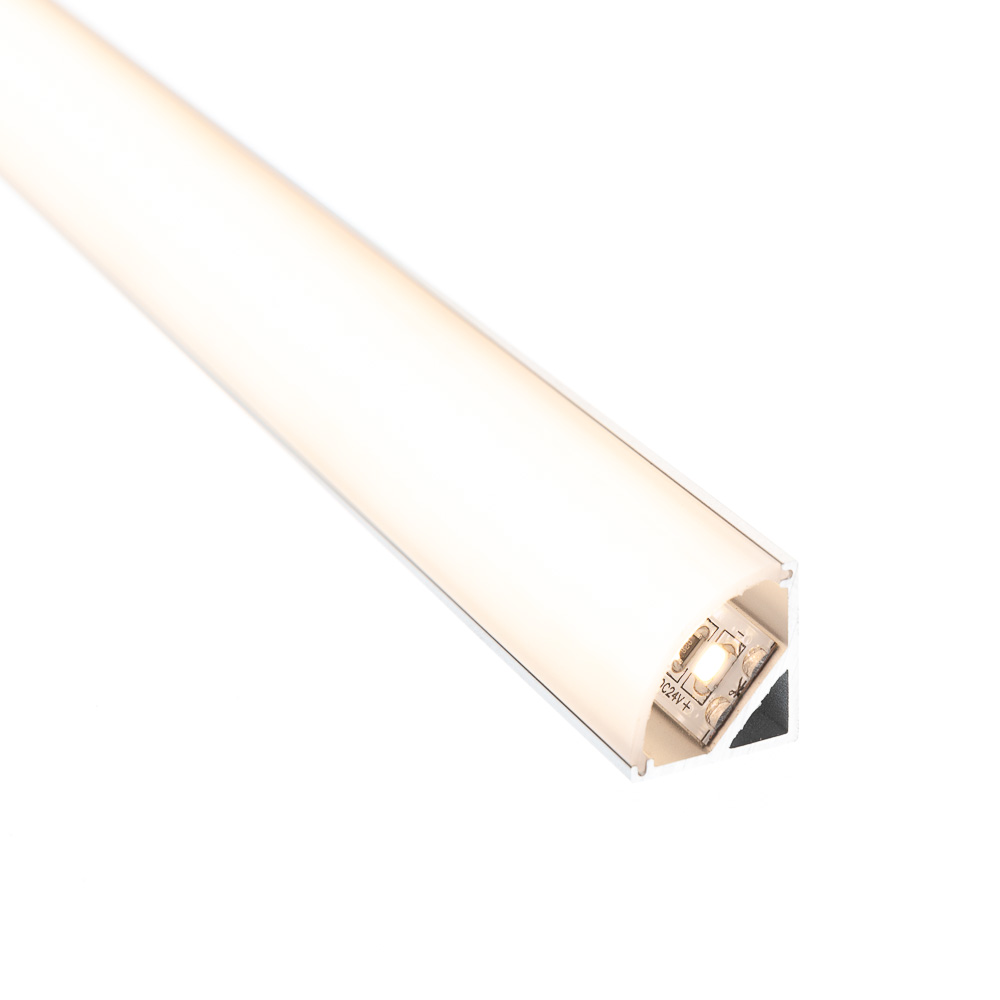

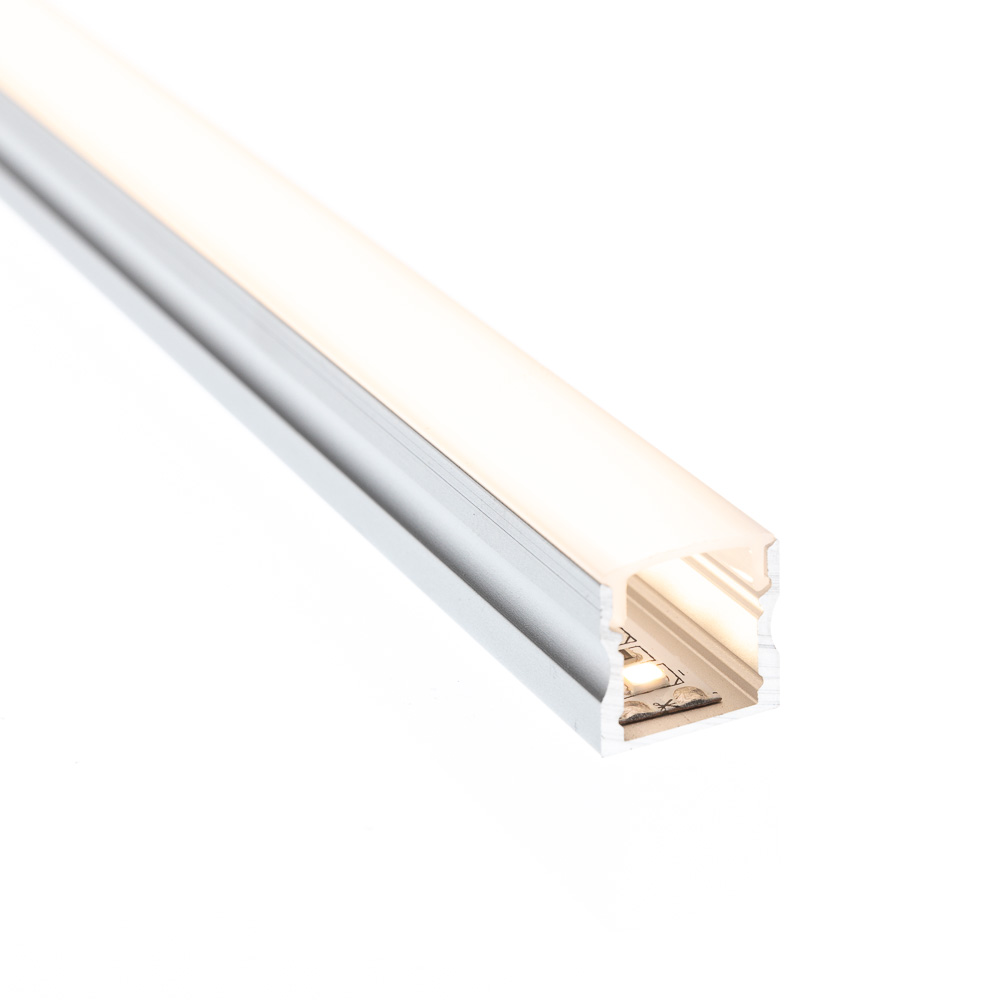

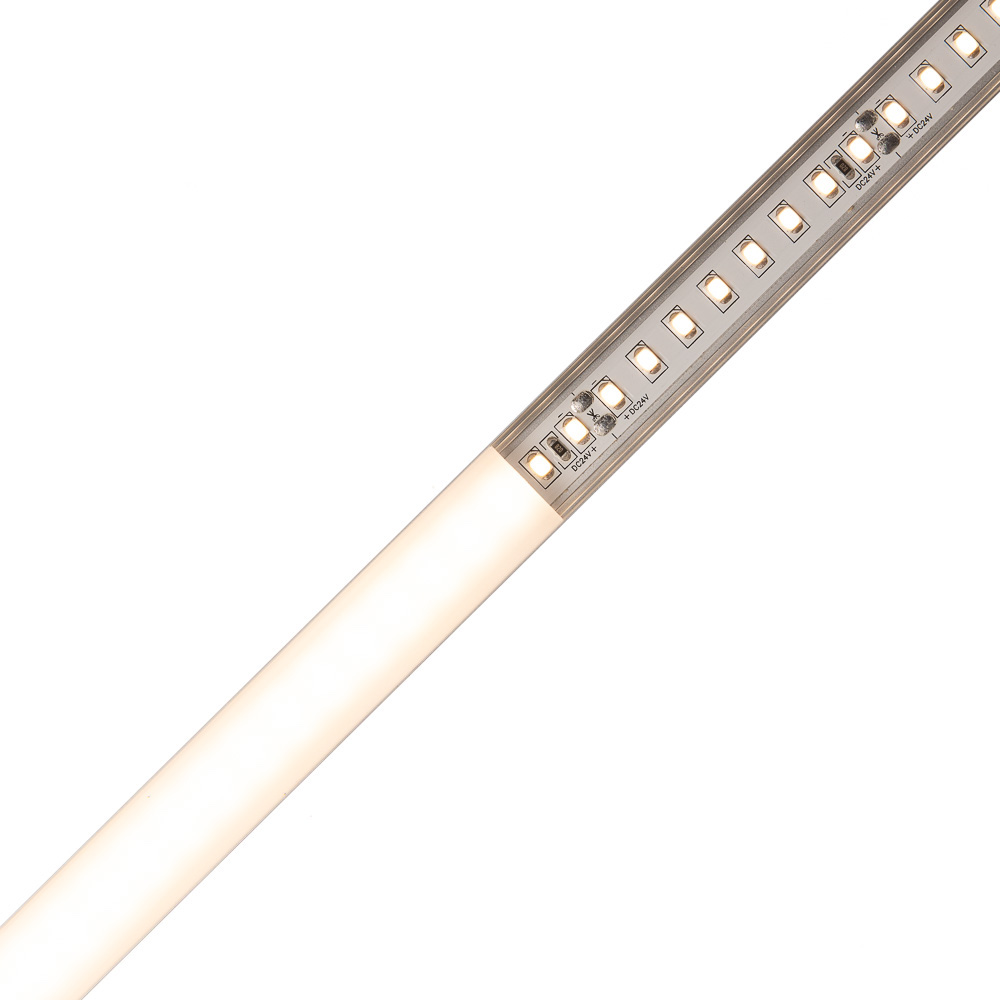

The Supaflex 128 LED strip light can be used in conjunction with our Supachannel aluminium LED channel diffuser range, for easy mounting and an all-in-one dotless LED lighting solution.

We also have a range of dimmable drivers and controllers, suitable for use with the Supaflex range.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many modules you need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many Supaflex 128 LED strip light modules you’ll need for your next project.
