If you are looking for high-colour architectural feature lighting, look no further than Supaflex Neonflex 1212 Spectrum – our dotless RGB LED strip lights. Square in shape, flexible and waterproof – perfect for outdoor application.

Product Specs

  • Power Output

    14 W/m (24V)

  • Lumens

    356lm/m

  • Colours Available

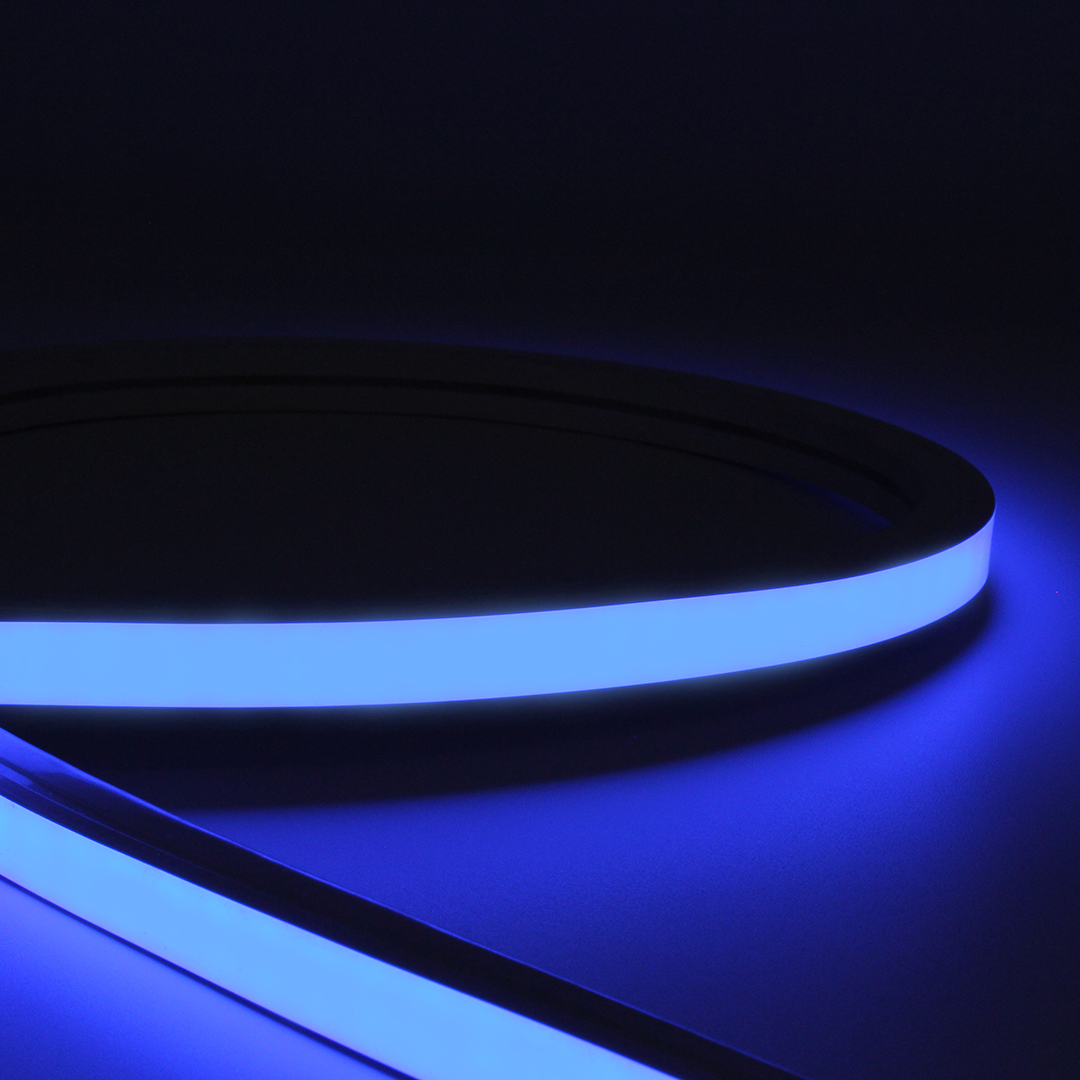

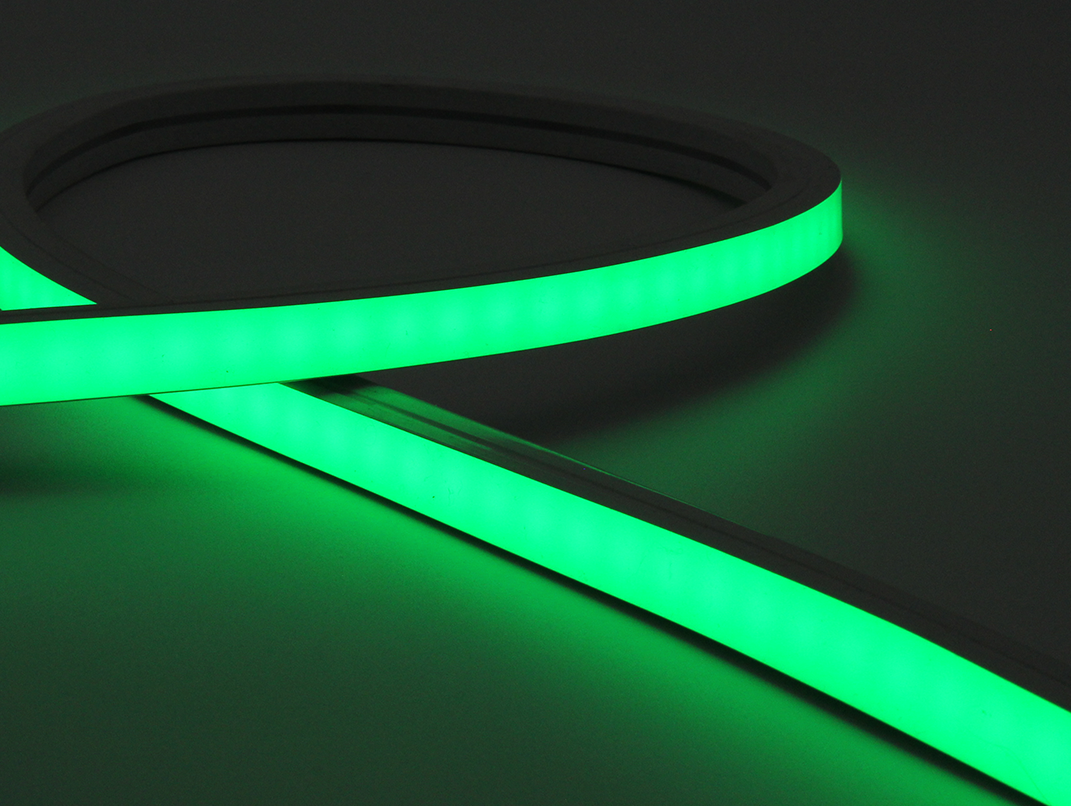

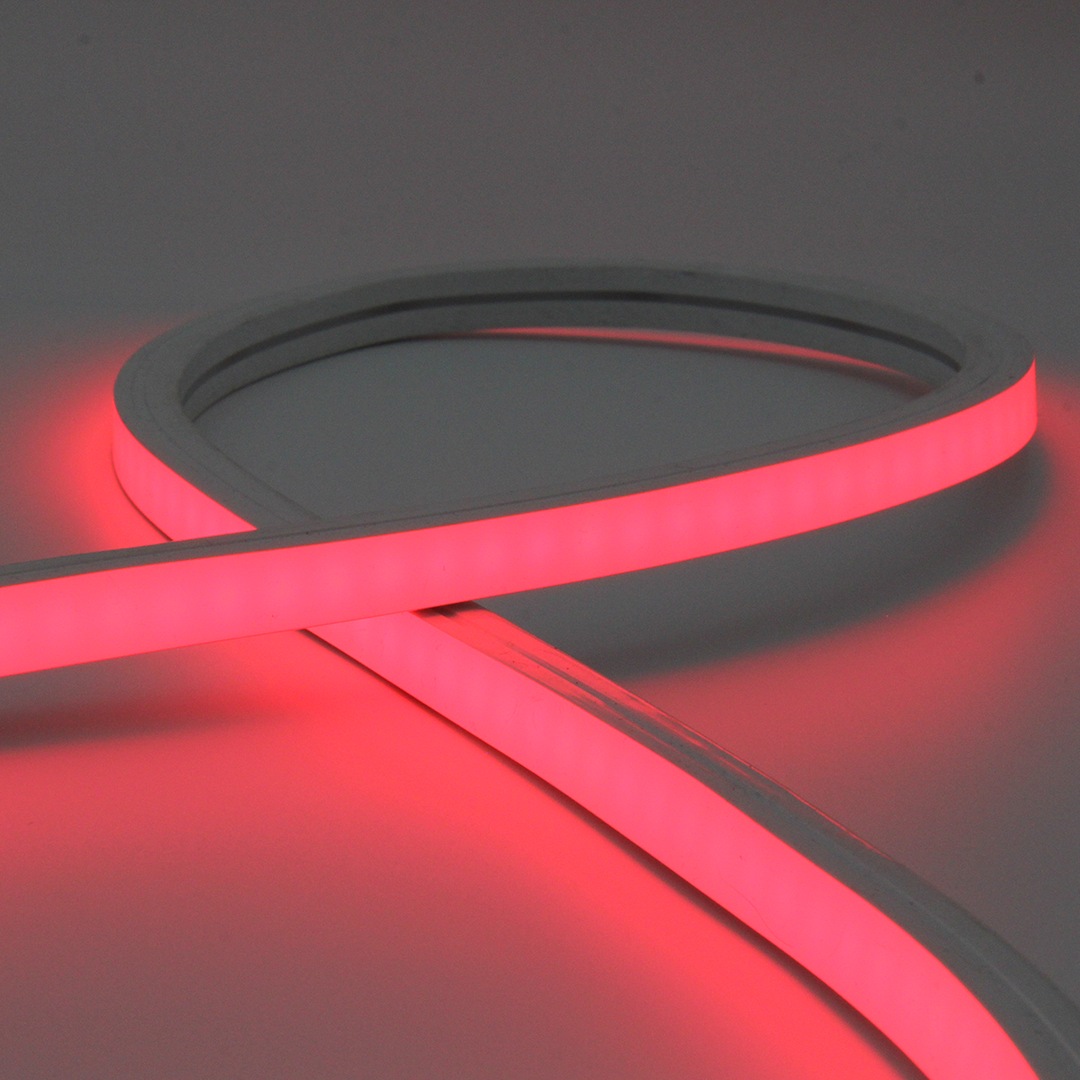

    Red, Green, Blue, RGB

  • Warranty

    5 Years

  • Dimensions

    12mm (W) x 12.5mm (H)

  • Includes

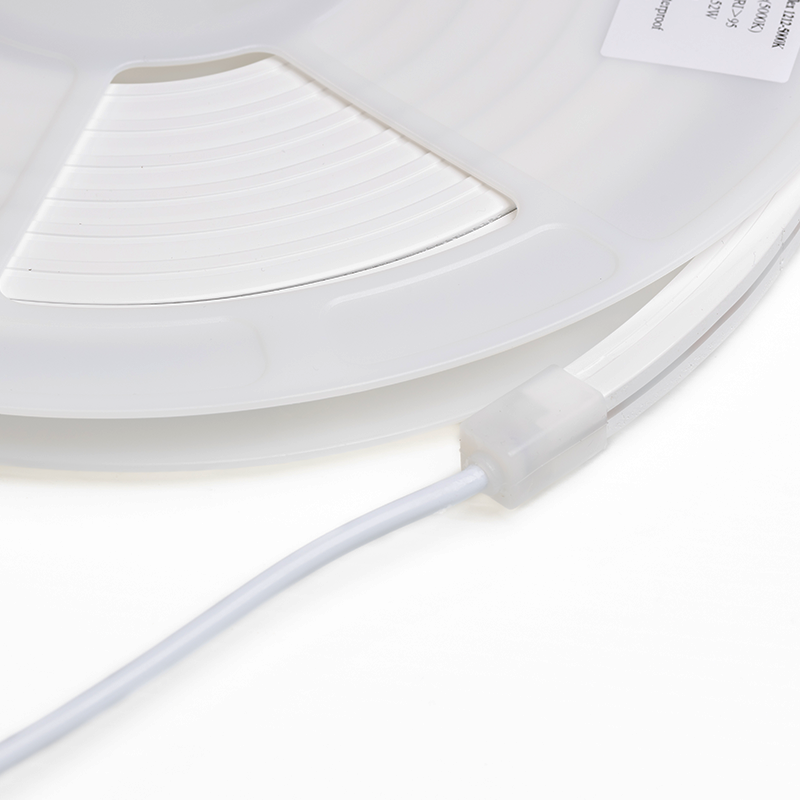

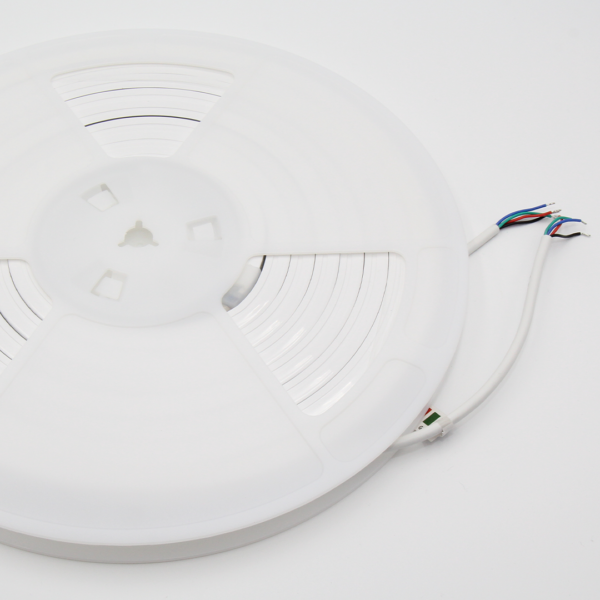

    5 Metre Roll (Connector Pack Included)

Looking for easy to install building and architectural feature lighting?

Supaflex Neonflex is our versatile cut-to-size range that offers a stunning neon-look. Housed in a flexible silicone sleeve with vertical bending capability, Supaflex Neonflex 1212 Spectrum, our Square shaped dotless RGB LED strip lights, can be used indoors and outdoors. Plus, they are UV resistant and salt mist proof. Supaflex Neonflex 1212 Spectrum is available in Red, Green, Blue and RGB colour variants, all with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Units

, , ,

Colour

RGB
IP Rating

Product Type

Neonflex
Voltage

24V
Power Output

14W/M
Features

RGB

Installation guide

1

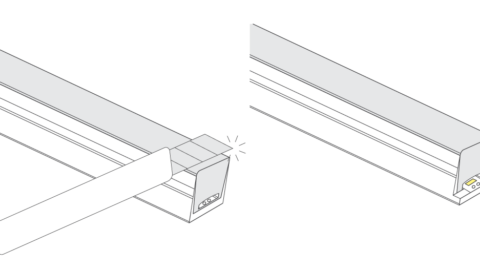

Cut material to the length required using Novaneon Shears (cut only at the marked intervals on the underside of the casing).
2

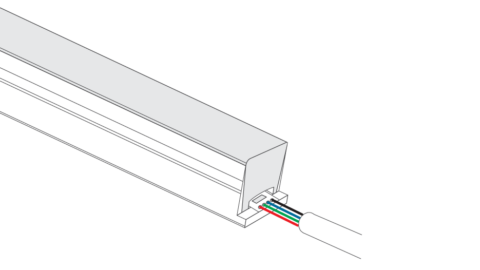

To connect to power, cut away a short section of the silicone casing to reveal the soldering pad.
3

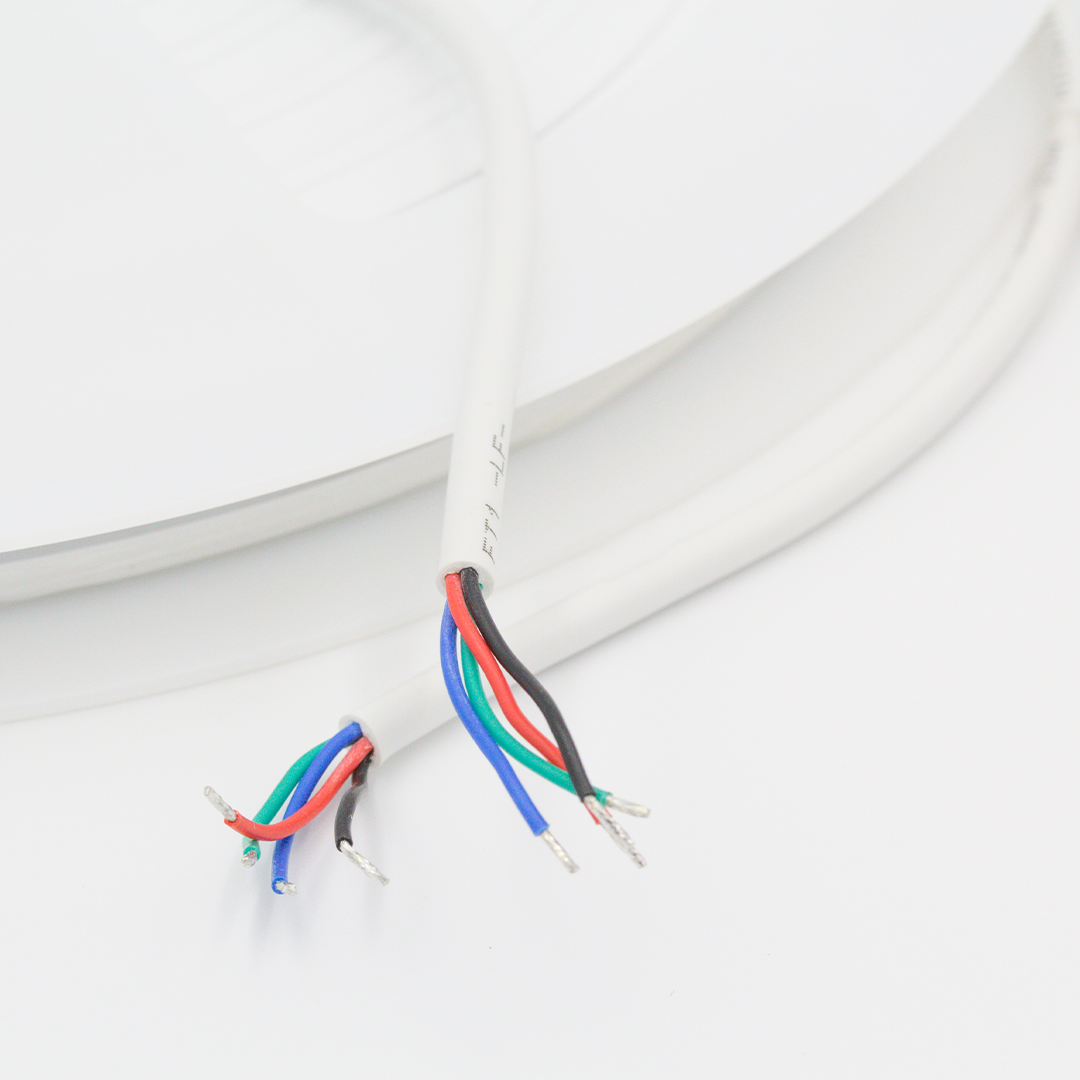

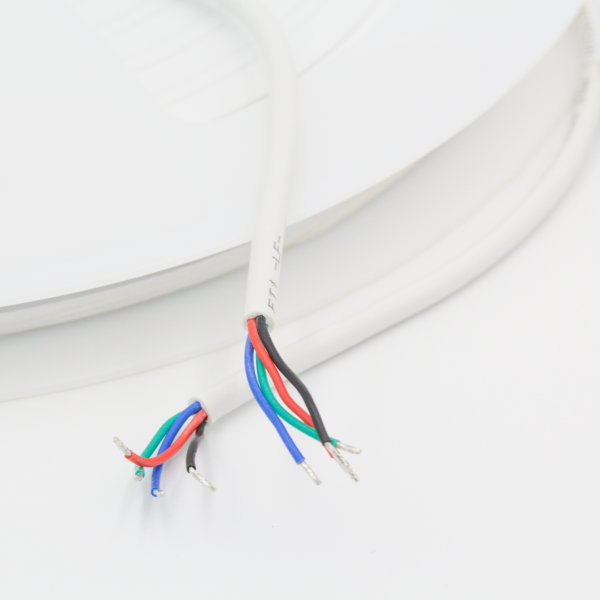

Solder the wire tails to the terminals for connection to power supply. Always ensure positive, Red, Green and Blue are connected to the correct terminals.
4

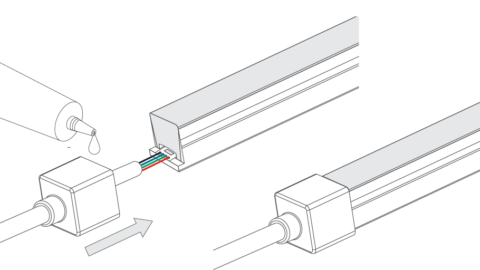

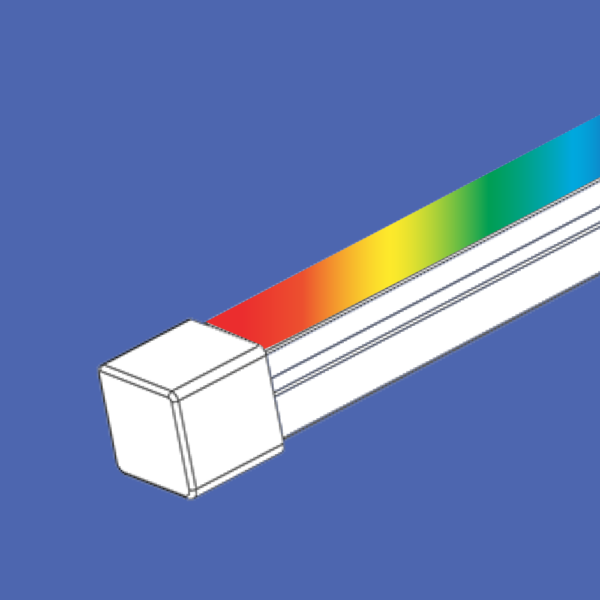

Seal the wired end: use the end cap with hole & thread the soldered wire tails through. Apply glue to the inside of the end cap, and push onto the LED strip, wiping off any excess glue. Wait for glue to dry before powering on.
5
To seal terminating end, apply glue to the inside of the end cap and wipe off any excess glue.
6

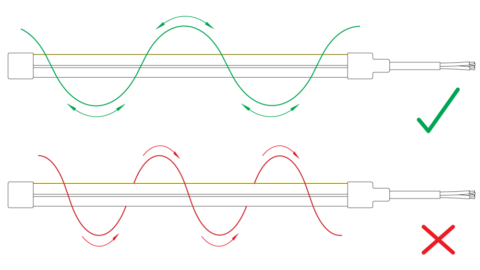

When handling the Neonflex, take care to only bend vertically and avoid twisting or stretching the strip, as this may damage the internal components.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.

Frequently asked questions

The Supaflex Neonflex 1212 Spectrum has been purpose-designed for building and architectural feature lighting applications. Easily cut to your desired size, these 24V dotless RGB LED strip lights can be run up to 5m in a single series. With vertical bending capability, the Supaflex Neonflex 1212 Spectrum is excellent in the following applications:

  • Building Feature Lighting
  • Architectural Lighting
  • Indoor and Outdoor
  • LED Neon
  • Dimmable (with controller)

Follow these steps on how to install the Supaflex Neonflex 1212 Spectrum dotless RGB LED strip lights.

  1. Cut the LED strip to your required size using our Novaneon Shears, ensuring to only cut at marked intervals.
  2. To connect to power, cut away a short section of the silicone casing to reveal the soldering pad.
  3. Solder the wire tails to the terminals for connection to power supply. Always ensure positive-to-positive and negative-to-negative connection.
  4. To seal the wired end, use the end cap with a whole and thread the soldered wire tails through. Apply glue to the inside of the end cap, then push the cap onto the LED strip, ensuring to wipe away any excess glue. Wait for all the glue to dry before powering on.
  5. To seal the terminating end, apply glue to the inside of the end cap and wipe off any excess glue.
  6. When handling the Neonflex, take care to only bend vertically and avoid twisting or stretching the strip, as this may damage the internal components.
  7. You can install the Supaflex Neonflex 1212 Spectrum dotless RGB LED strip lights in a continuous run for up to 5m. Always check the max series to avoid a voltage drop.

Our Supaflex Neonflex 1212 Spectrum comes with a Connector Pack that contains silicone glue, 4 end caps and 4 front caps with RGB Cable. We also have straight and bendable mounting extrusions available – speak with our team to find out more.

The Supaflex Neonflex 1212 Spectrum dotless RGB LED strip lights can be used with our range of dimmable drivers and controllers; these are suitable for use with the entire Supaflex range.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many modules you’ll need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many metres of Supaflex Neonflex 1212 Spectrum dotless RGB LED strip lights you’ll need for your next project.
