If you are looking for linear architectural feature lighting that can run up to an impressive 10m in a single series, look no further than Supaflex Neonflex 1617 – our dotless LED strips. Square in shape, flexible and waterproof – perfect for outdoor application.

Product Specs

  • Power Output

    17.2 W/m (24V)

  • Lumens

    1150lm/m

  • Colours Available

    3000K, 4000K, 5000K

  • Warranty

    5 Years

  • Dimensions

    16mm (W) x 17mm (H)

  • Includes

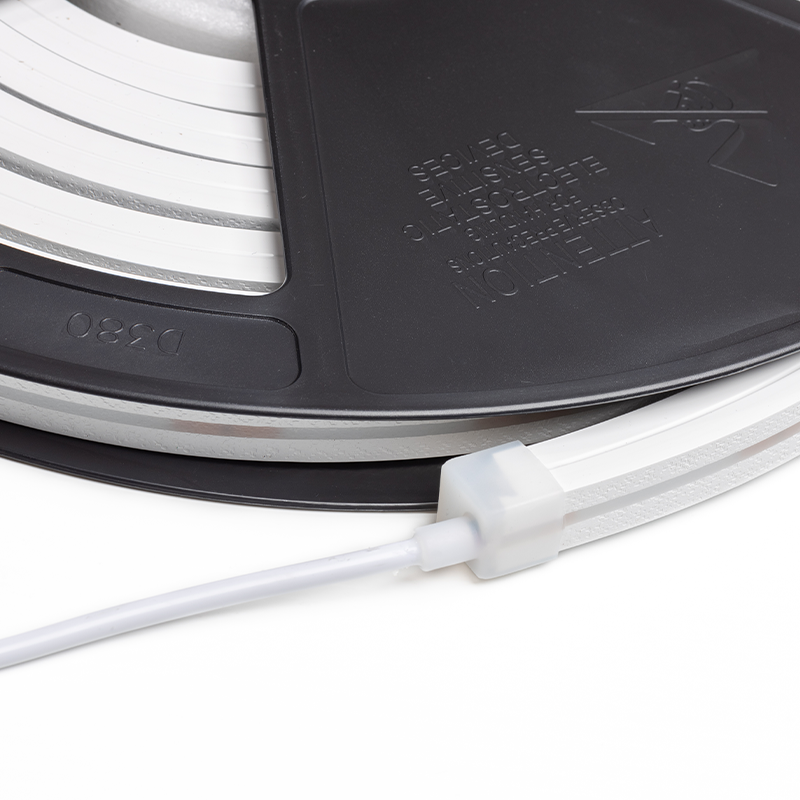

    5 Metre Roll (Connector Pack Included)

Looking for impressive, neon style linear lighting?

Supaflex Neonflex is our versatile cut-to-size range that’s easy to install, making it ideal for building and architectural feature lighting applications. Housed in a flexible silicone sleeve with vertical bending capability, Supaflex Neonflex 1617, our Square shaped dotless LED strips, can be used indoors and outdoors. Plus, it’s UV resistant and salt mist proof. Supaflex Neonflex 1617 is available in Warm White (3000K), Natural White (4000K) and Pure White (5000K) colour variants, all with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Units

, , ,

Colour

3000K, 4000K, 5000K
IP Rating

Product Type

Neonflex
Voltage

24V
Power Output

17.2W/M
Features

Dimmable

Installation guide

1
Cut material to the length required using Novaneon Shears (cut only at the marked intervals on the underside of the casing).
2
To connect to power, cut away a short section of the silicone casing to reveal the soldering pad.
3
Solder the wire tails to the terminals for connection to power supply. Always ensure positive to positive and negative-negative connection.
4

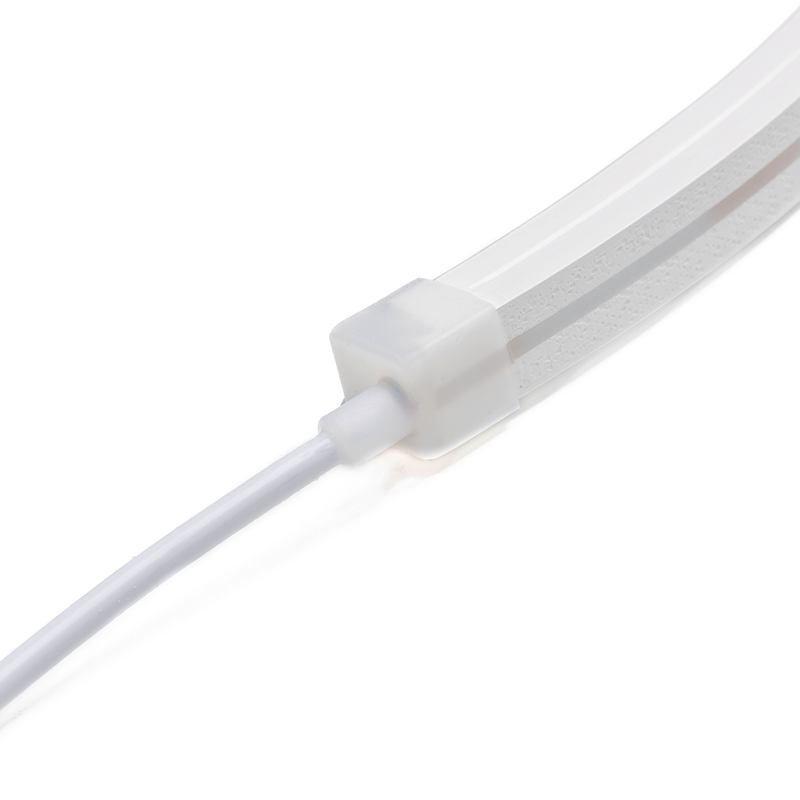

Seal the wired end: use the end cap with hole & thread the soldered wire tails through. Apply glue to the inside of the end cap, and push onto the LED strip, wiping off any excess glue. Wait for glue to dry before powering on.
5
To seal terminating end, apply glue to the inside of the end cap and wipe off any excess glue.
6
When handling the Neonflex, take care to only bend vertically and avoid twisting or stretching the strip, as this may damage the internal components.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.

Frequently asked questions

The Supaflex Neonflex 1617 has been purpose-designed for building and architectural feature lighting applications. Easily cut to your desired size, these 24V dotless LED strips can be run up to an impresive 10m in a single series. With vertical bending capability, the Supaflex Neonflex 1617 is excellent in the following applications:

  • Building Feature Lighting
  • Architectural Lighting
  • Indoor and Outdoor
  • LED Neon
  • Dimmable (with controller)

Follow these steps on how to install the Supaflex Neonflex 1617 dotless LED strips.

  1. Cut the LED strip to your required size using our Novaneon Shears, ensuring to only cut at marked intervals.
  2. To connect to power, cut away a short section of the silicone casing to reveal the soldering pad.
  3. Solder the wire tails to the terminals for connection to power supply. Always ensure positive-to-positive and negative-to-negative connection.
  4. To seal the wired end, use the end cap with a whole and thread the soldered wire tails through. Apply glue to the inside of the end cap, then push the cap onto the LED strip, ensuring to wipe away any excess glue. Wait for all the glue to dry before powering on.
  5. To seal the terminating end, apply glue to the inside of the end cap and wipe off any excess glue.
  6. When handling the Neonflex, take care to only bend vertically and avoid twisting or stretching the strip, as this may damage the internal components.
  7. You can install the Supaflex Neonflex 1617 dotless LED strips in a continuous run for up to 10m. Always check the max series to avoid a voltage drop.

Our Supaflex Neonflex 1617 comes with a Connector Pack that contains silicone glue, 4 end caps and 4 front caps with 200mm Cable. We also have straight and bendable mounting extrusions available – speak with our team to find out more.

The Supaflex Neonflex 1617 dotless LED strips can be used with our range of dimmable drivers and controllers; these are suitable for use with the entire Supaflex range.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many modules you’ll need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many metres of Supaflex Neonflex 1617 dotless LED strips you’ll need for your next project.

product
Enquire about the Supaflex Neonflex 1617
Need more info on our Supaflex Neonflex 1617 dotless LED strips? Discuss your needs with our friendly team. Send through your signage artwork and we’ll happily provide a custom LED layout with pricing in 48-72 hours. Or why not try Bounce Wizard, our free layout and estimator tool.
