Understanding IP Ratings & Protecting Your LED Installations with WAGO 221 Connectors! ⚡️
When it comes to LED lighting—especially in environments exposed to dust, water, or other challenging conditions—durability and safety are non-negotiable. One of the most important factors in determining a product’s ability to withstand these elements is its IP rating.
What is an IP Rating?
IP Rating stands for Ingress Protection Rating. It is an internationally recognised standard used to define the level of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (like dust and dirt) and moisture (such as water or humidity).
This two-digit code is an easy way to understand how well a product is protected:
- The first digit (from 0 to 6) refers to protection against solid particles.
- The second digit (from 0 to 9) indicates protection against liquids.
For example, an IP68 rating—one of the highest levels of waterproofing—means a product is completely dust-tight and can withstand long periods of immersion in water under pressure. This is the gold standard for outdoor and marine lighting installations.
Why IP Ratings Matter for LED Installations
Choosing the correct IP rating for your LED lighting setup is critical. Not only does it affect the product’s performance and longevity, but it also plays a key role in installation safety and regulatory compliance.
At Bounce LED, we’ve simplified this selection process by classifying our products into three clear categories based on their IP ratings:
- Indoor: Rated IP22 or IP30
Suitable for dry, controlled environments with minimal exposure to dust or water. - Semi-Outdoor: Rated IP64
Offers protection against dust ingress and water spray from any direction—perfect for covered patios or marquees. - Outdoor: Rated IP67
Fully dust-tight and protected against temporary submersion. Ideal for full exposure to the elements.
Enhanced Moisture Protection with WAGO 221 Series and Gelbox
To ensure safe and long-lasting connections in your LED systems, we proudly recommend the WAGO 221 Series Splicing Connectors paired with the WAGO Gelbox.

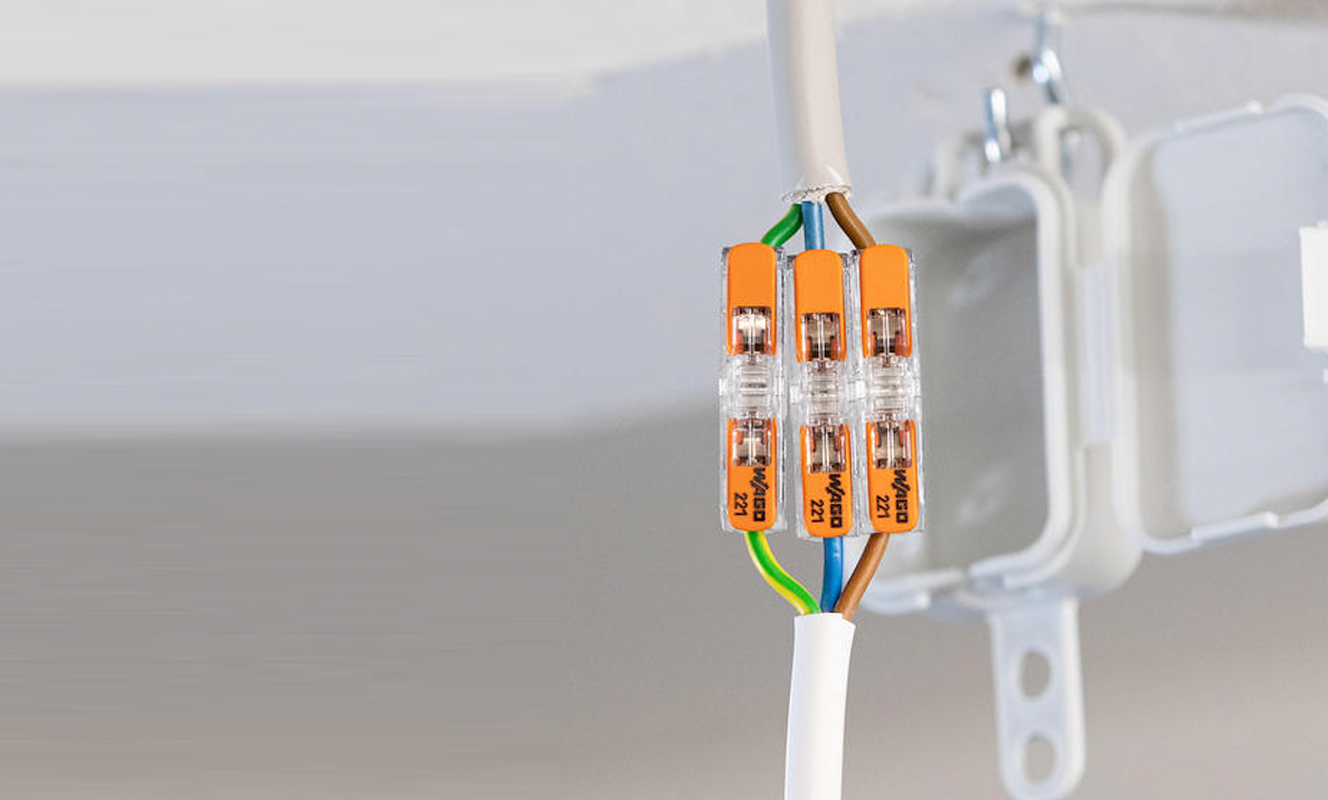

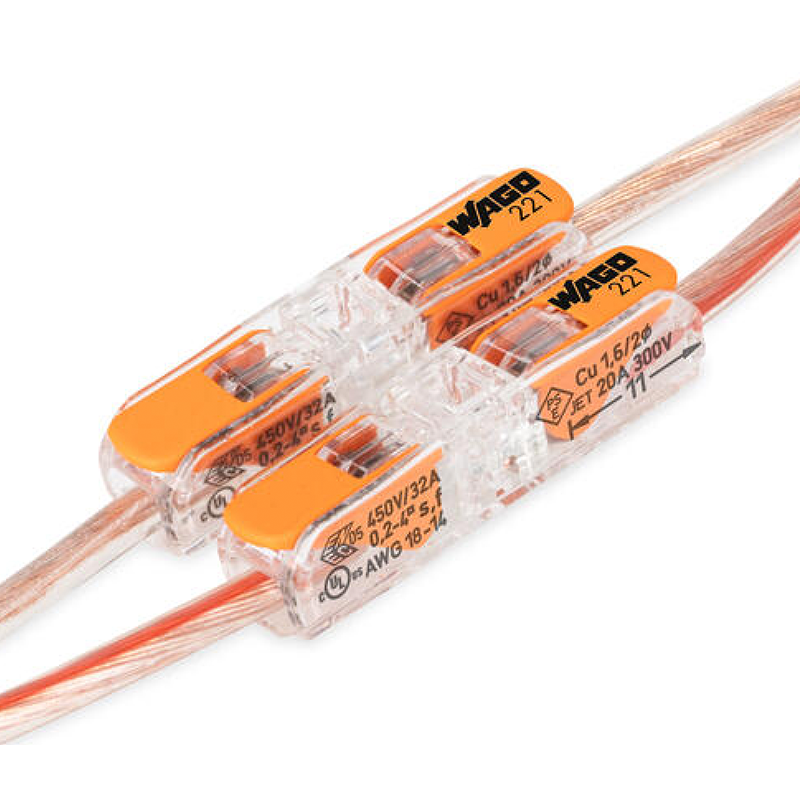

The WAGO 221 Series is a game-changer for quick, tool-free wiring. Known for their compact size and transparent housing, these splicing connectors provide a fast and secure solder-free wiring solution.

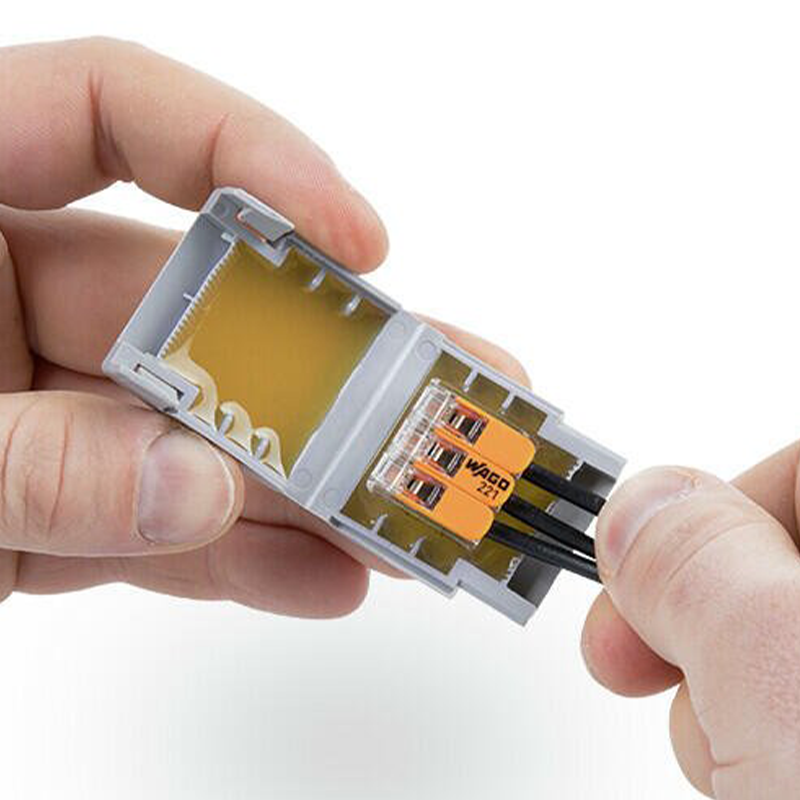

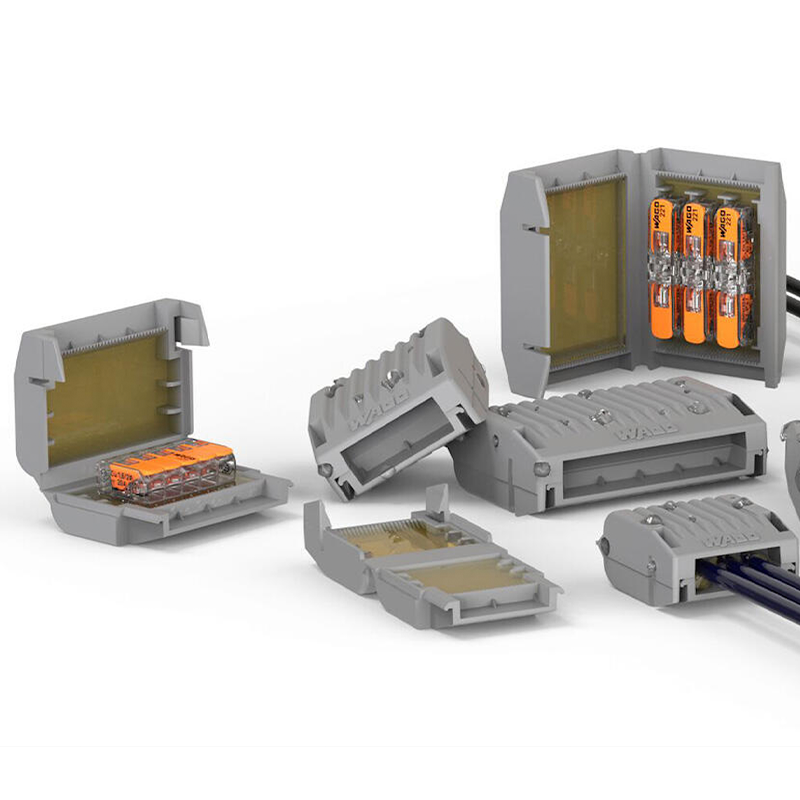

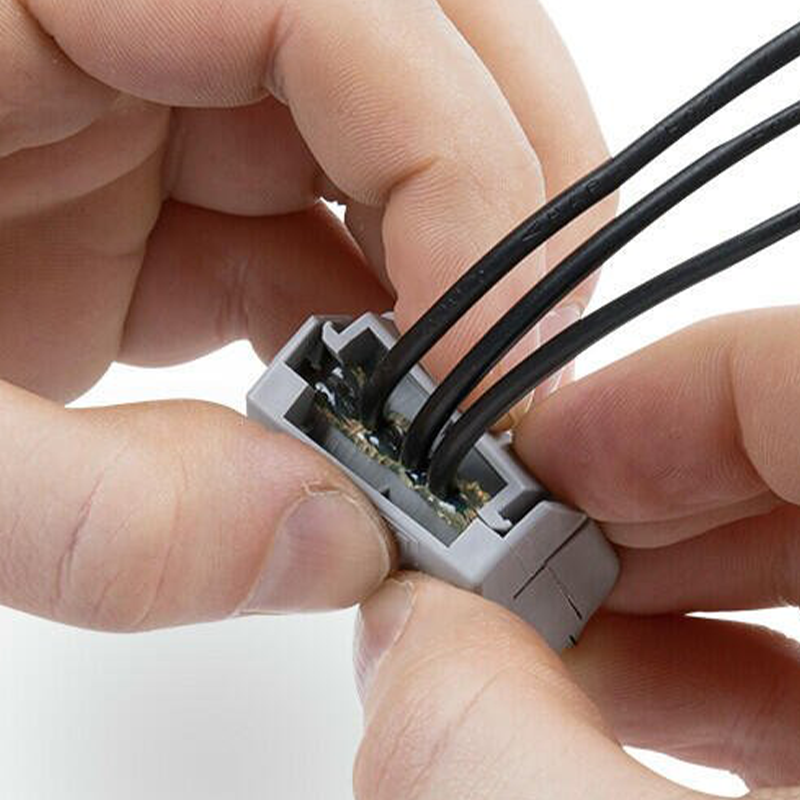

What truly sets them apart is how easily they integrate with the WAGO Gelbox—a compact enclosure pre-filled with a silicone-free gel. Together, they offer IPX8 moisture protection, meaning your connections are safe even when fully submerged in water. This makes them ideal for outdoor or high-humidity environments where moisture could compromise the integrity of traditional connections.
Protect Your Investment
Understanding IP ratings and using the right accessories—like the WAGO 221 and Gelbox—helps ensure your lighting systems are:
- Safe
- Reliable
- Resistant to harsh conditions
- Built to last
Whether you’re setting up a temporary outdoor installation or a permanent architectural display, choosing the right protection level is essential.
Want to Learn More?
Check out our WAGO range at Bounce LED, or watch our tutorials on YouTube for hands-on tips.
