Install in grid formation for unbeatable evenness and lighting efficiency in 40-80mm lightboxes and displays.

Product Specs

  • Power Output

    0.48W (12V)

  • Lumens

    60lm

  • Colours Available

    6500K

  • Warranty

    5 Years

  • Dimensions

    30 x 22 x 7 mm

  • Max Series

    50 Modules Per Series

  • Includes

    50 Modules Per Pack

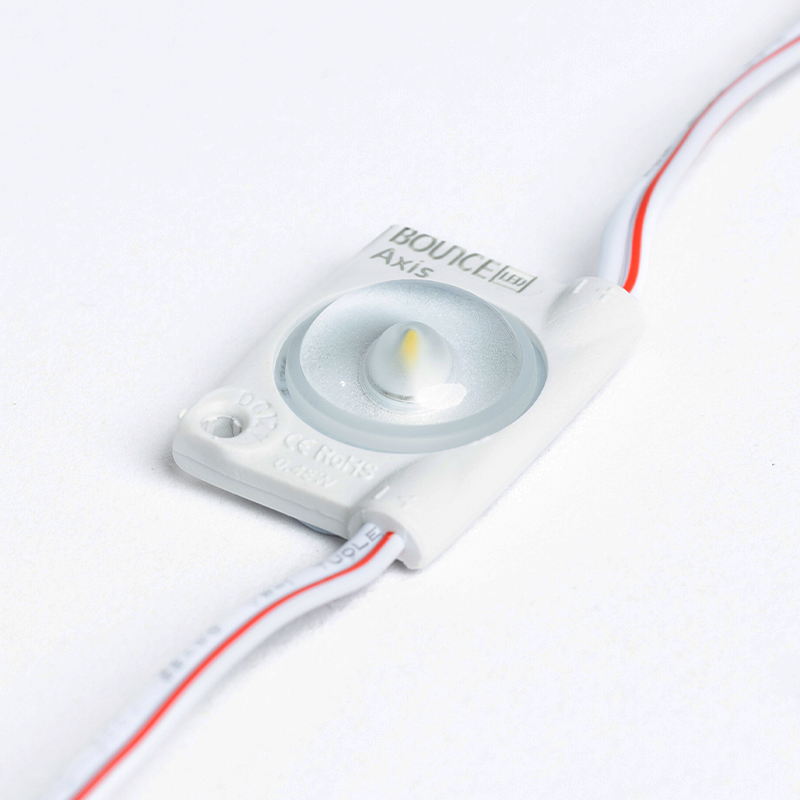

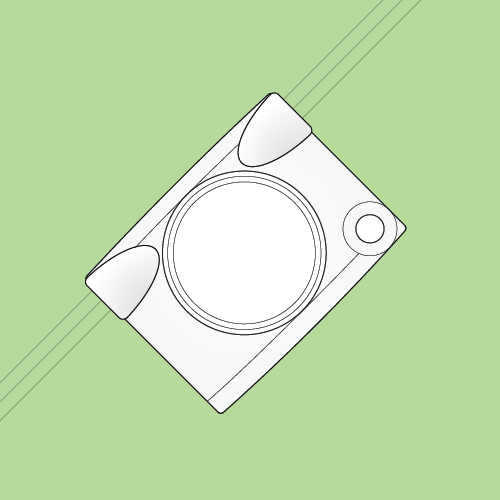

The Axis is a LED module specifically built for small depth light-boxes and illuminated displays.

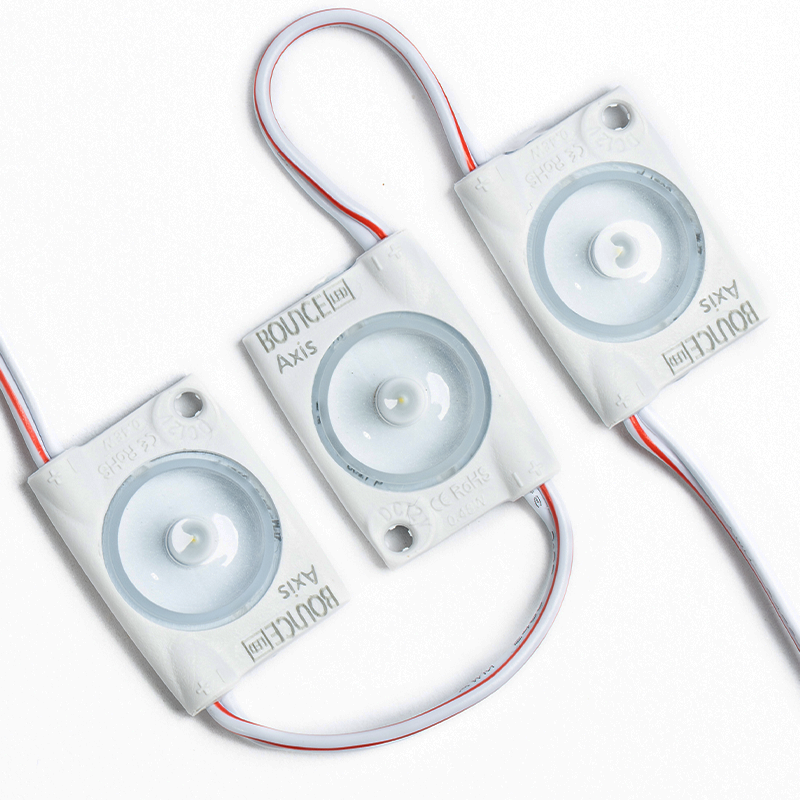

Install in grid formation at 80mm spacing for unbeatable evenness and lighting efficiency in indoor and outdoor light-boxes 40-80 mm in depth.

Find all the latest product specifications and guides below:

Units

, , ,

Colour

6500K

IP Rating

Product Type

LED Module

Voltage

12V

Power Output

0.48W

Installation guide

1
Ensure the inside of your channel letter or sign box is clean and free of debris. For best illumination ensure the inside of the box is white (matte finish preferred).
2
Using supplied LED layout, remove tape from module and press firmly into place.
3
Secure LEDs by gluing modules in place. Ensure glue does not come into contact with LED lense as this will affect the light hue.
4
Drill a suitably sized hole out the back of the sign for connection to DC power supply.
5
Connect modules from the sign to power supply, making sure to not exceed maximum series. Exceeding the maximum series will result in voltage drop.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.
