Matrix Plus

Looking for high-performance lighting that’s suitable for fabric face lightboxes? Look no further than the Matrix Plus – our flexible, high efficiency 24V LED Panels.

Product Specs

  • Power Output

    18 W (24V)

  • Dimensions

    240 x 480 x 8.0mm

  • Colours Available

    3000K, 4000K, 5000K

  • Max Series

    4 Panels

  • Warranty

    3 Years

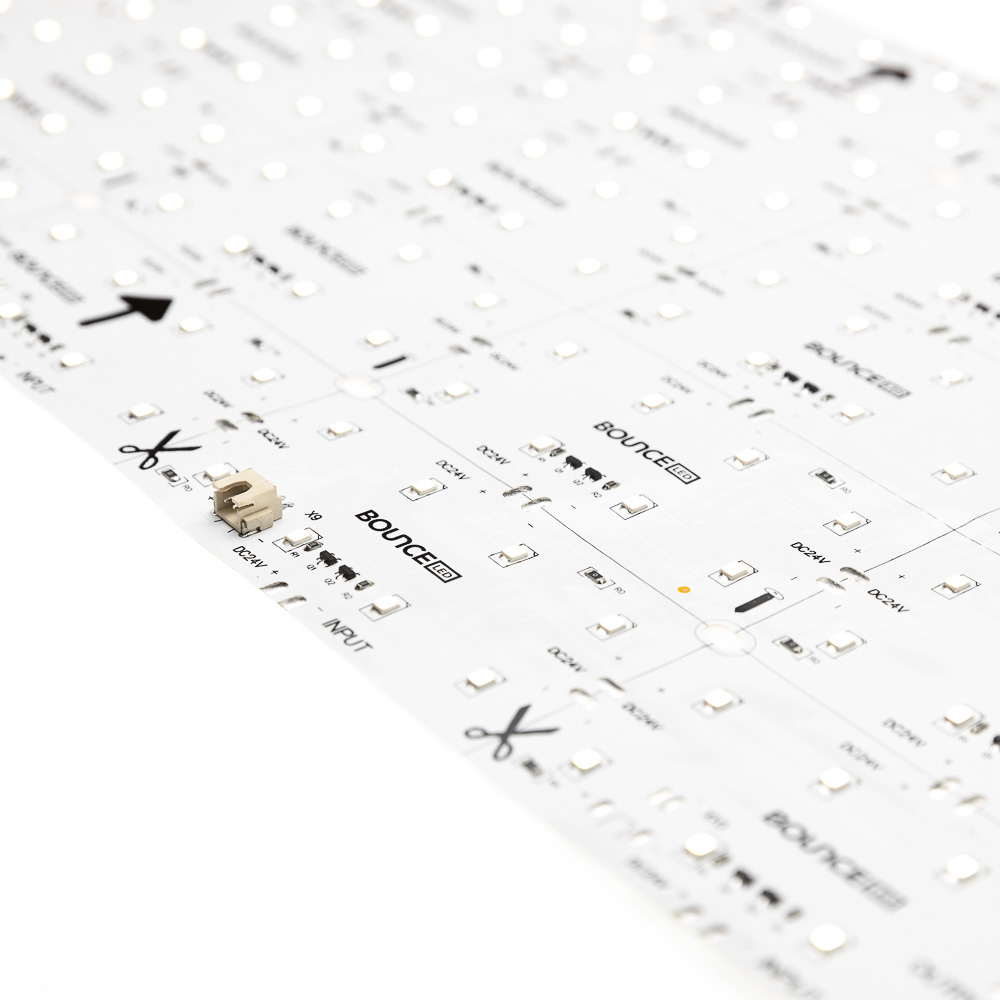

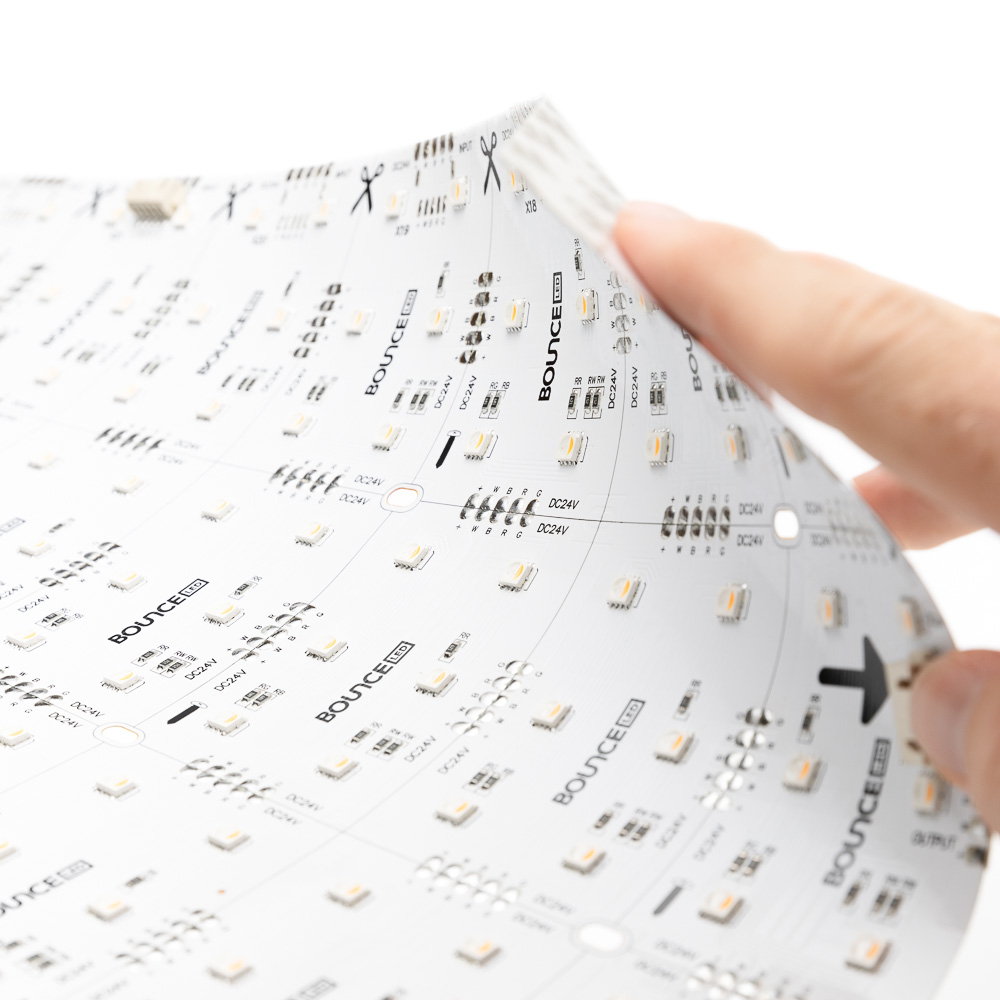

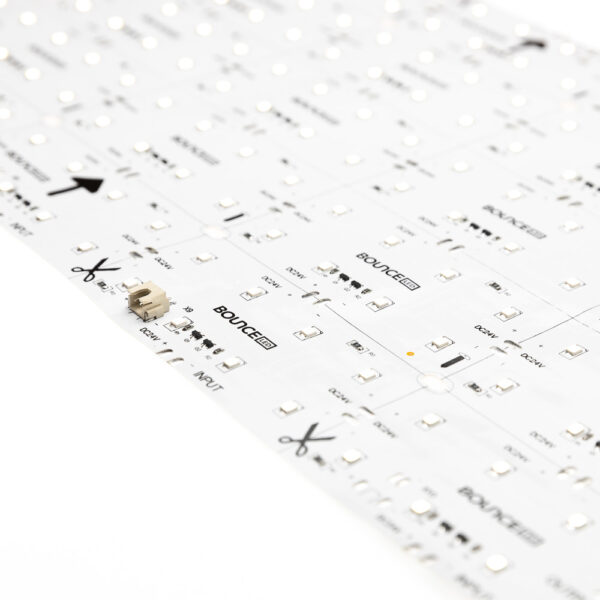

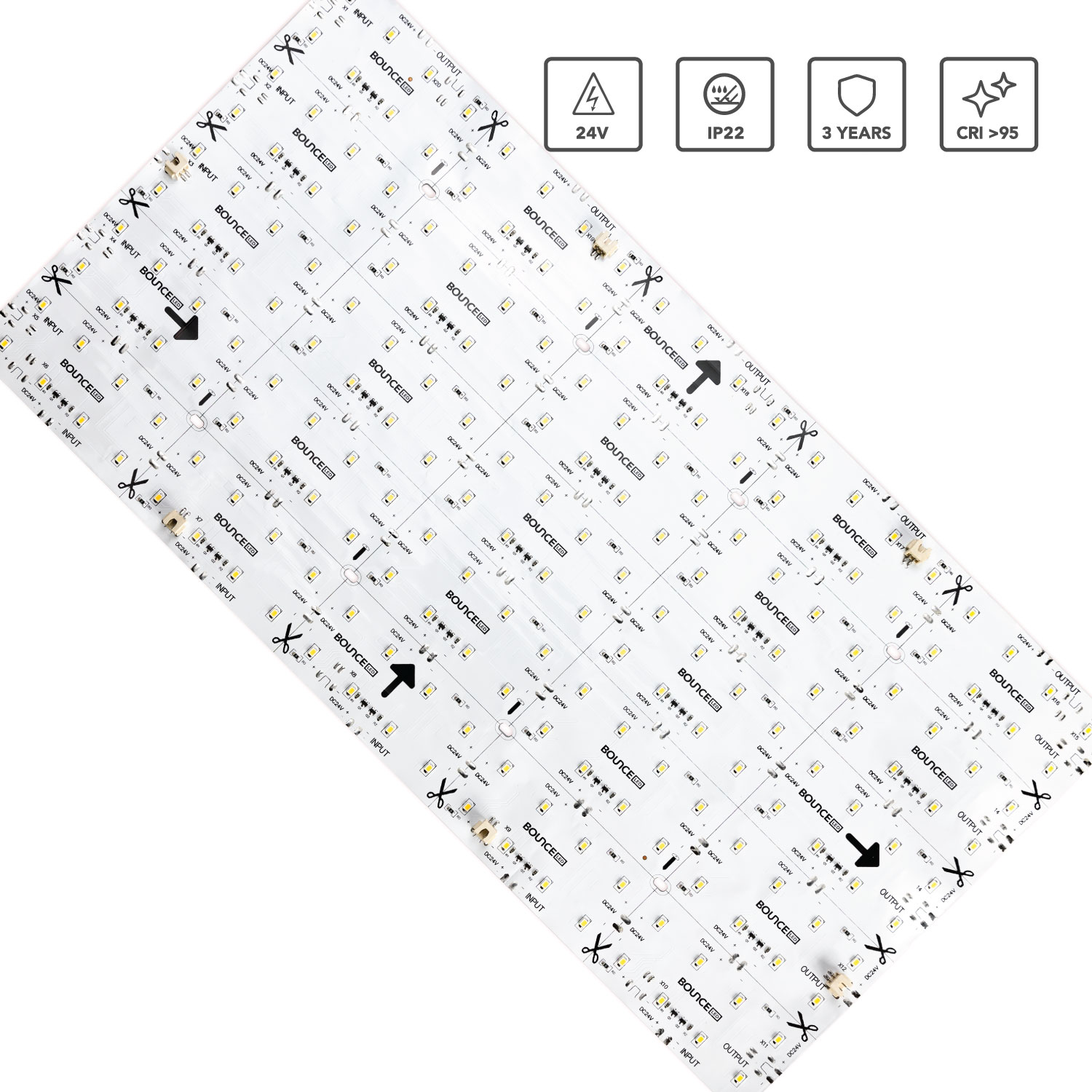

Matrix Plus, our flexible 24V LED lighting panel, is a fantastic option for large format fabric face lightboxes, cabinets and backlit displays.

Experience ultra high colour rendering (CRI >95) and run up to 4 panels per series. Matrix Plus panels are available in Warm White (3000K), Natural White (4000K), Pure White (5000K) and Cool White (6500K) colour variants, all with an impressive 3 year warranty.

Find all the latest product specifications and guides below:

Units

, , ,

Colour

3000K, 4000K, 5000K

IP Rating

Product Type

LED Panel

Voltage

24V

Power Output

18W Per Panel

Features

Dimmable

Installation guide

1

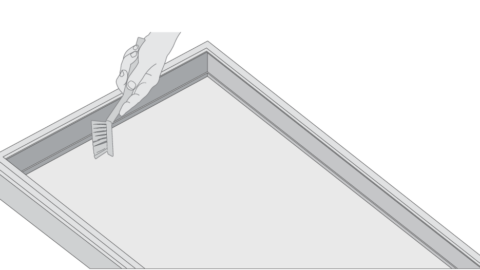

Ensure lightbox surface is clean and free from debris. We recommend ensuring the internal surfaces are painted matte white to encourage illumination.
2

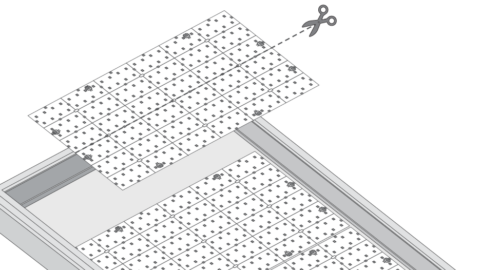

Arrange matrix spectrum panels in a grid-like fashion within the light box. Measure and trim panels to desired size, ensuring to only trim the panels at the marked cut lines.
3

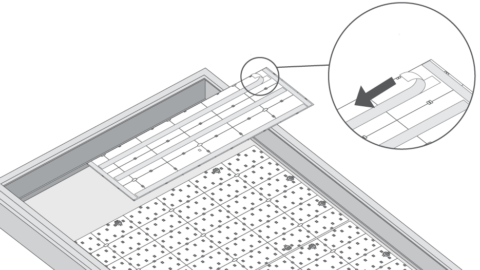

Remove double sided tape and firmly press panels in place.
4

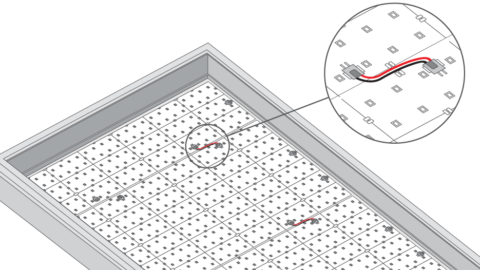

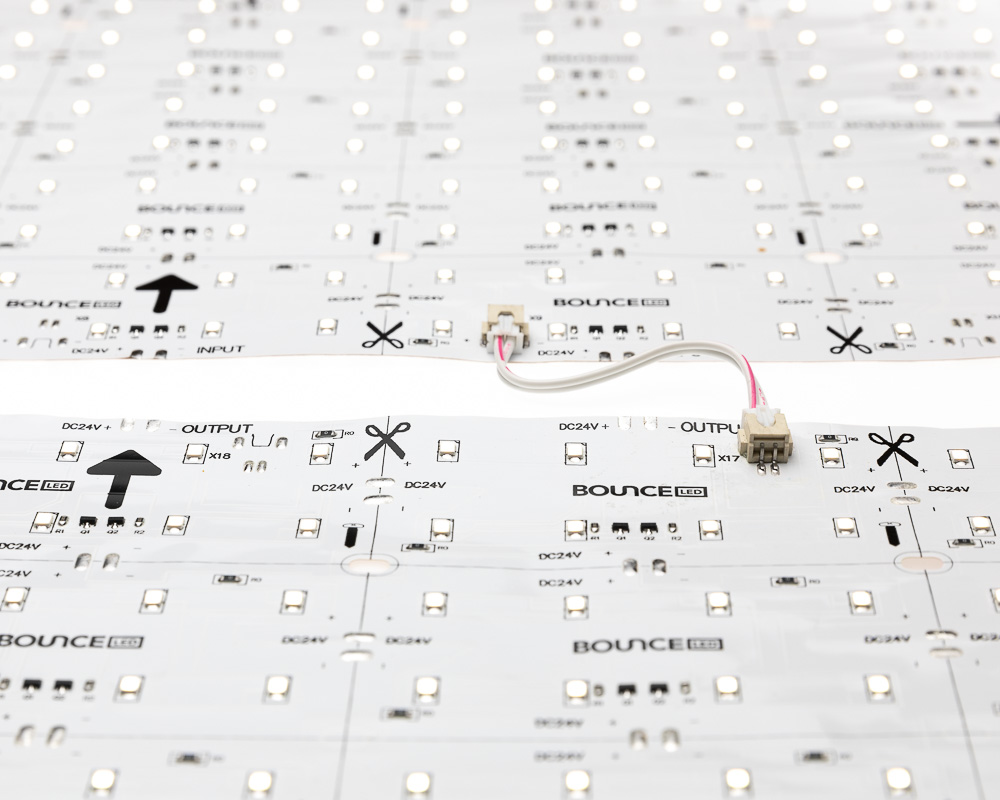

Connect panels together using included connectors, ensuring to not exceed the maximum series. Wire panels in parallel if required to avoid voltage drop.
5
Connect the panels the transformer and power up, testing to ensured they are wired up correctly.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.

Frequently asked questions

The Matrix Plus flexible 24V LED panel has been purpose-designed for fabric face lightboxes and backlit displays. The Matrix Plus is excellent in the following applications:

  • Cabinet Lighting
  • Lightboxes
  • Fabric Face Lightboxes
  • Backlit Signs
  • Dimmable (with controller)

Follow these steps on how to install the Matrix Plus 24V LED flexible panels.

  1. You can install 4 Matrix Plus panels per series. Always check the max series to avoid a voltage drop.

The Matrix Plus 24V LED panels can be used with our range of dimmable drivers and controllers; these are suitable for use with the entire Bounce LED 24V Cabinet range.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many modules you’ll need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many Matrix Plus LED panels you’ll need for your next project.

product
Enquire about the Matrix Plus
Need more info on our Matrix Plus 24V LED panels? Discuss your needs with our friendly team. Send through your signage artwork and we’ll happily provide a custom LED layout with pricing in 24-48 hours. Or why not try Bounce Wizard, our free layout and estimator tool.
