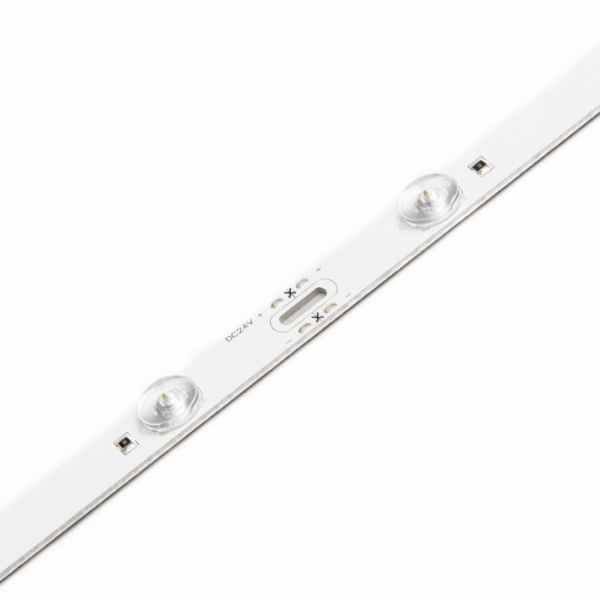

Micro Bar

The 24V Micro Bar is ideal for indoor display applications and slim light-boxes.

Product Specs

  • Power Output

    3.36W / 6.72W (24V)

  • Lumens

    370lm / 740lm

  • Colours Available


  • Ingress Protection


  • Dimensions

    240/515mm x 16mm x 7.1mm

  • Warranty

    5 Years

  • Range

    40-150mm Lightspace

  • Max Series

    30 Per Series / 15 Per Series

  • Includes

    Integrated cable connector system, 3M self-adhesive tape

The 24V Micro Bar is our go-to solution for slimline fabric face light-boxes and visual display applications.

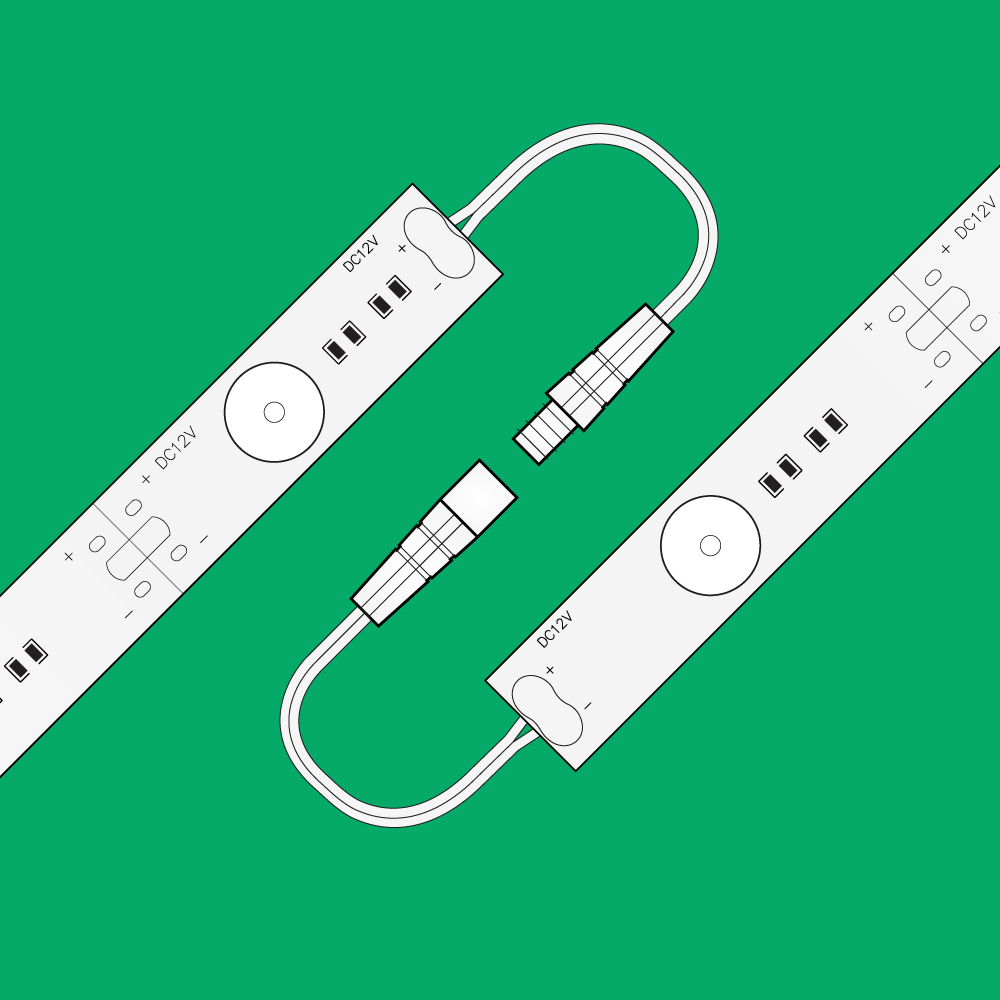

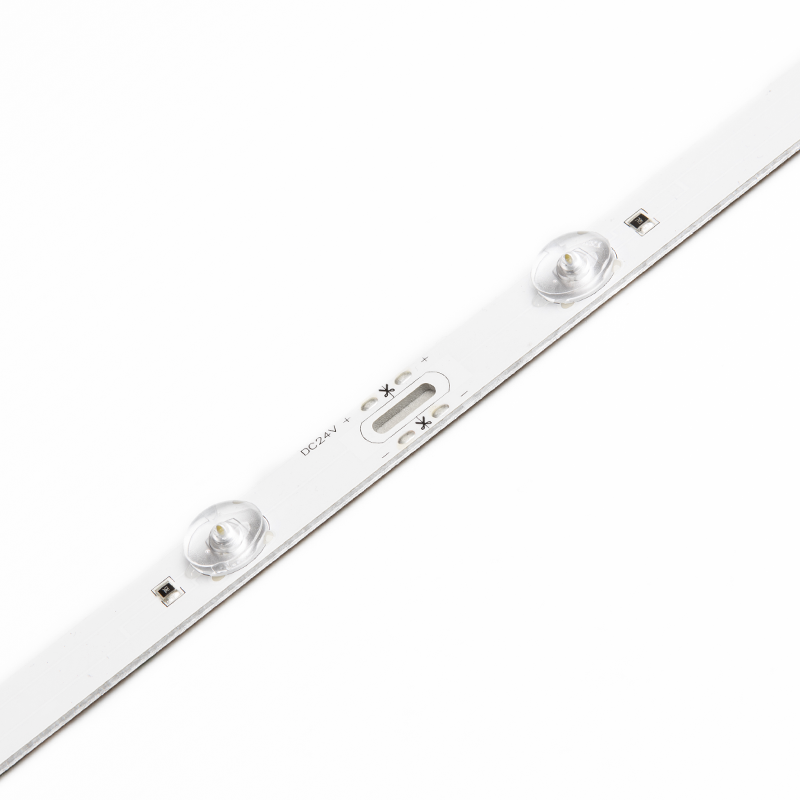

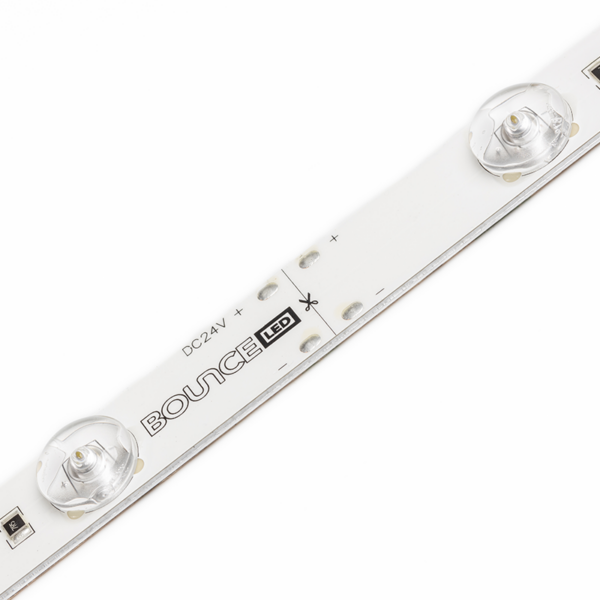

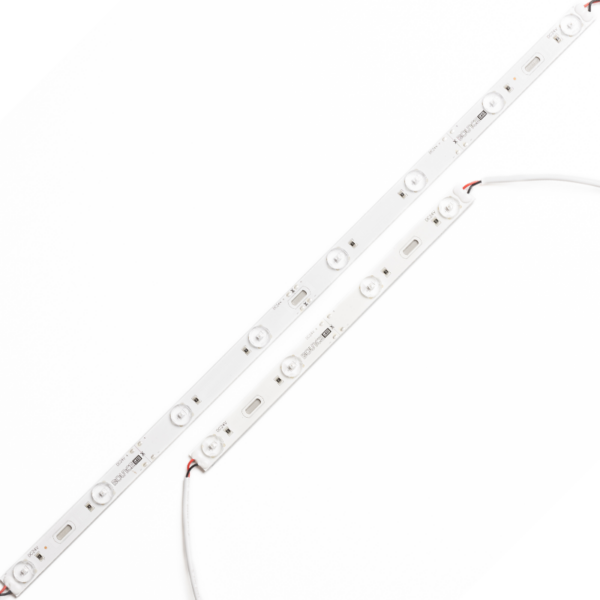

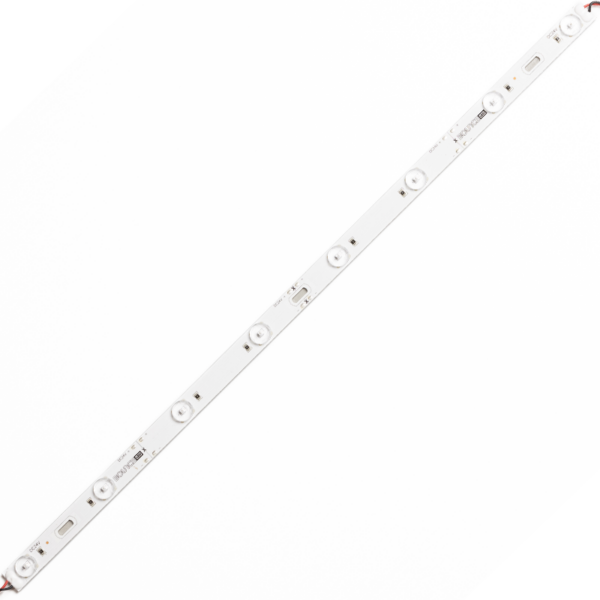

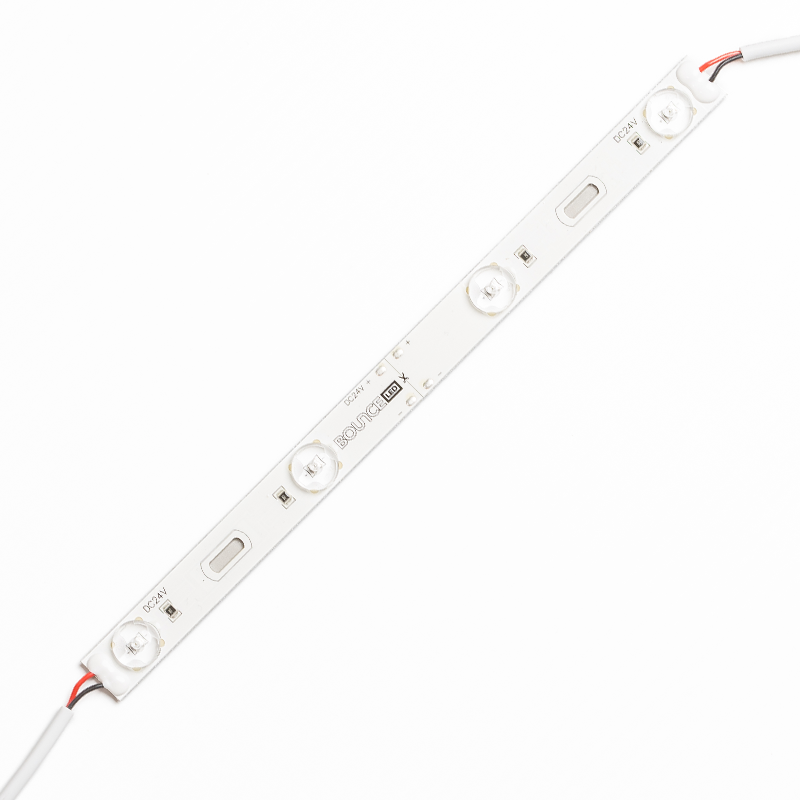

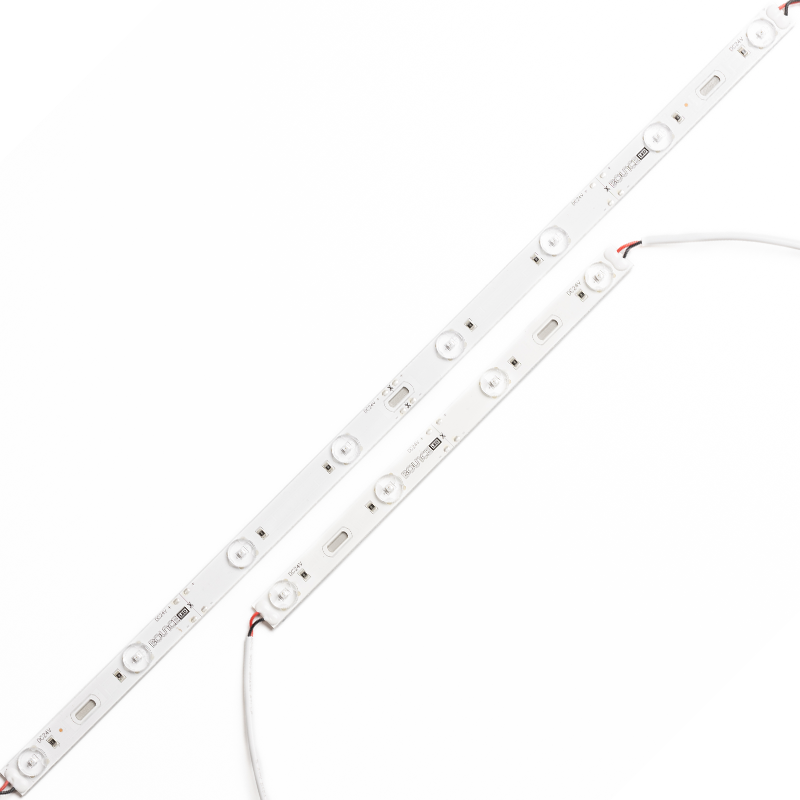

The integrated cable connector system and included 3M self-adhesive mounting tape allows for quick and easy installation. Available in two convenient sizes (240mm and 515mm), the Micro Bar is perfect for light-boxes 40-100mm in depth.

Find all the latest product specifications and guides below:



Enquire about the Micro Bar
Need more info on our Micro Bar? Discuss your needs with our friendly team. Send through your signage artwork and we’ll happily provide a custom LED layout with pricing in 24-48 hours. Or why not try Bounce Wizard, our free layout and estimator tool.

Installation guide

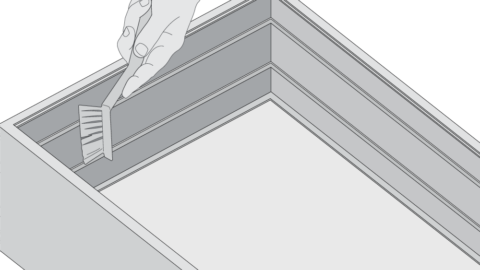

Ensure lightbox surface is clean and free from debris. We recommend ensuring the internal surfaces are painted matte white to encourage illumination.

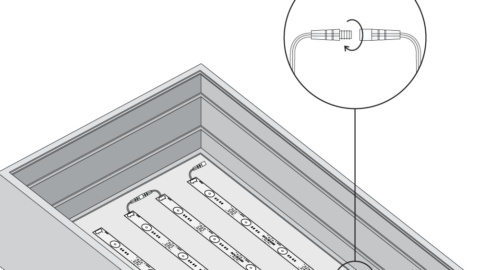

Using the supplied LED layout, remove tape from the rear side and stick LED bars in place, twisting the connectors together.

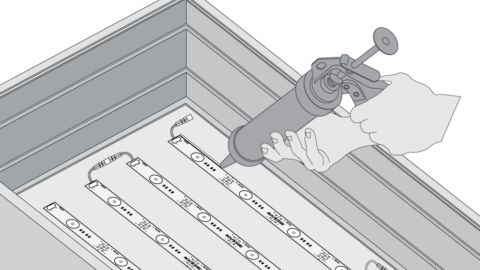

Secure the LED bars by gluing them in place.
Using Wago connectors, wire up the LED bars to the transformer, ensuring not to exceed the maximum series. Exceeding the maximum series will result in voltage drop.


Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.
