Cobra IP67

Cobra IP67

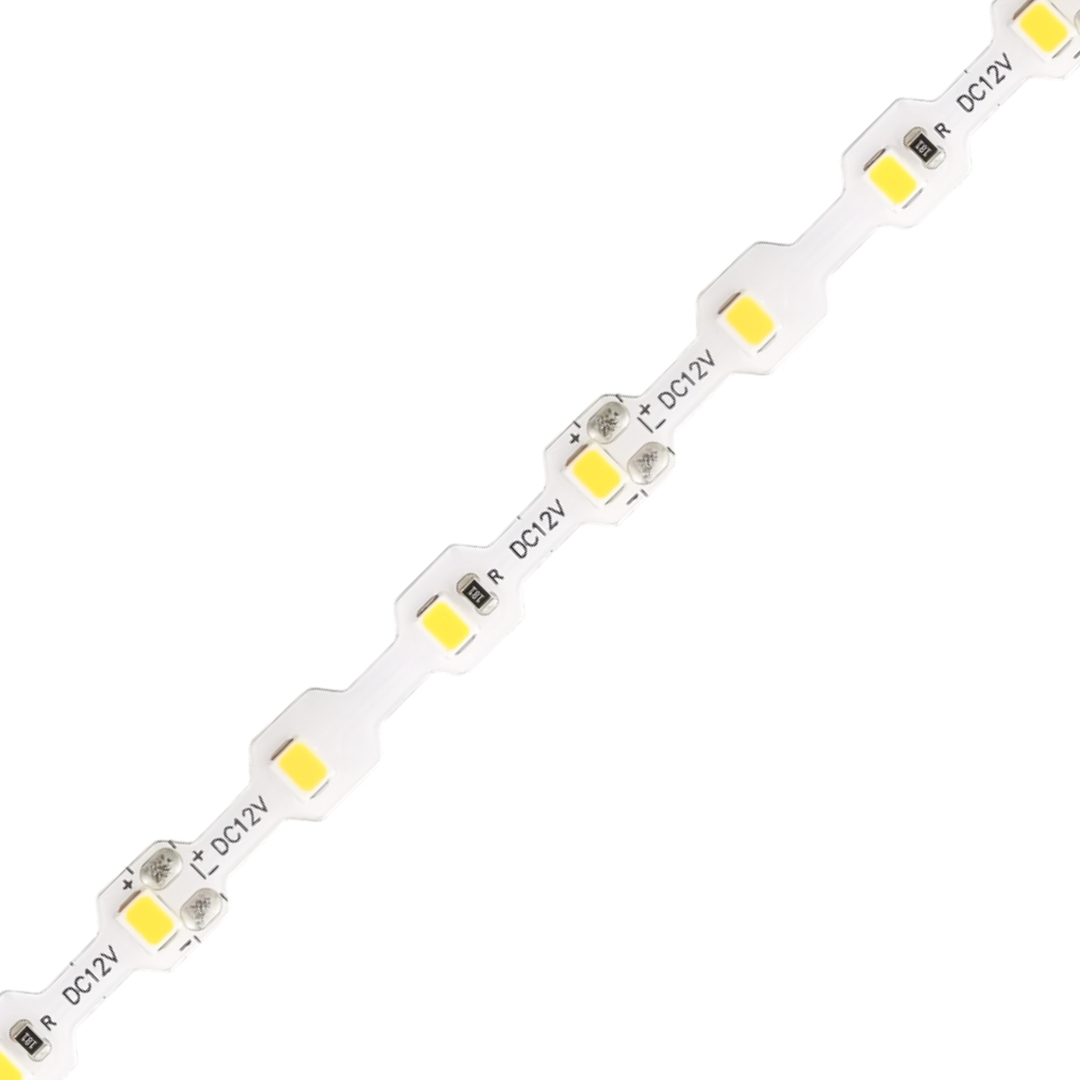

Cobra IP67 - Image 2

A waterproof strip light with a zig-zag design for 360° flexibility around the tightest of contours, both vertically and horizontally.

Product Specs

  • Power Output

    6W/m (12V)

  • Lumens

    660 lm/m

  • Colours Available

    3000K, 4000K, 5000K, 6500K

  • Warranty

    5 Years

  • Ingress Protection

    IP67

  • Max Series

    2 Metres

  • Dimensions

    6.8mm x 1.5mm x 5m Roll

  • Includes

    5 Metre Roll

The Bounce Cobra IP67 is a waterproof flexible strip-light purpose-built for wow factor.

It’s used to illuminate the most intricate and low profile channel letters and light-boxes with dramatic results. The zig-zag design allows the Cobra to duck and weave around the tightest of contours with ease.

  • Rated for outdoor use (IP67)
  • Zig-zag design for 360° flexibility around the tightest of contours, both vertically and horizontally.
  • 120° viewing angle.
  • Can be cut every 3 LEDs.
  • 3M double sided tape for easy installation.

Find all the latest product specifications and guides below:

Colour

3000K, 4000K, 5000K, 6500K
IP Rating

Power Output

6 W/M

Installation guide

1
Cut LED strip to required size, taking care to only cut at intervals marked on the product. Note the maximum series length to avoid voltage drop.
2
Ensure that your channel letter or application area is clean and free of debris. Remove adhesive liner from the back of strip and press flex strip into place.
3
Solder connecting ‘wire tails’ to terminals for connection to power supply, or for ‘bridging wires’ for linking of strip segments. Always ensure positive-positive and negative-negative connection.
4
Connect to suitable power supply (and dimmer/controller if required) and test.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.
