Ribbon

Unique edge-facing illumination for creative indoor and outdoor sign applications.

Product Specs

  • Power Output

    9.6W/m (12V)

  • Lumens

    768 lm/m

  • Colours Available

    3000K, 4000K, 5000K, 6500K

  • Warranty

    5 Years

  • Max Series

    2.5 Metres

  • Includes

    IP22 (5M Rolls) or IP67 (4M Rolls)

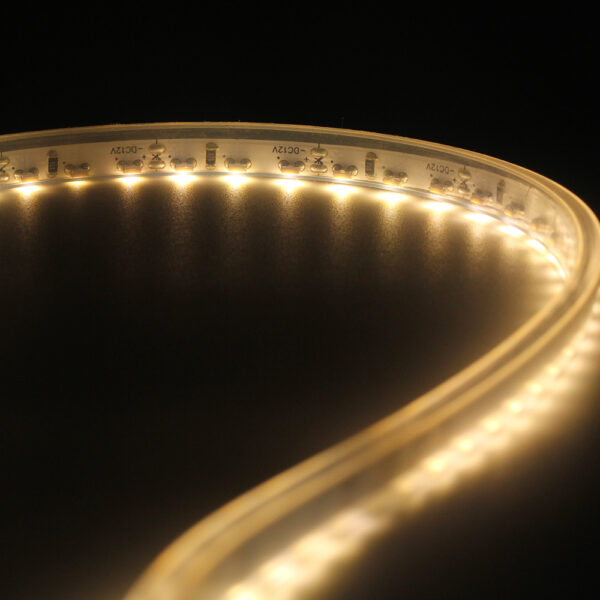

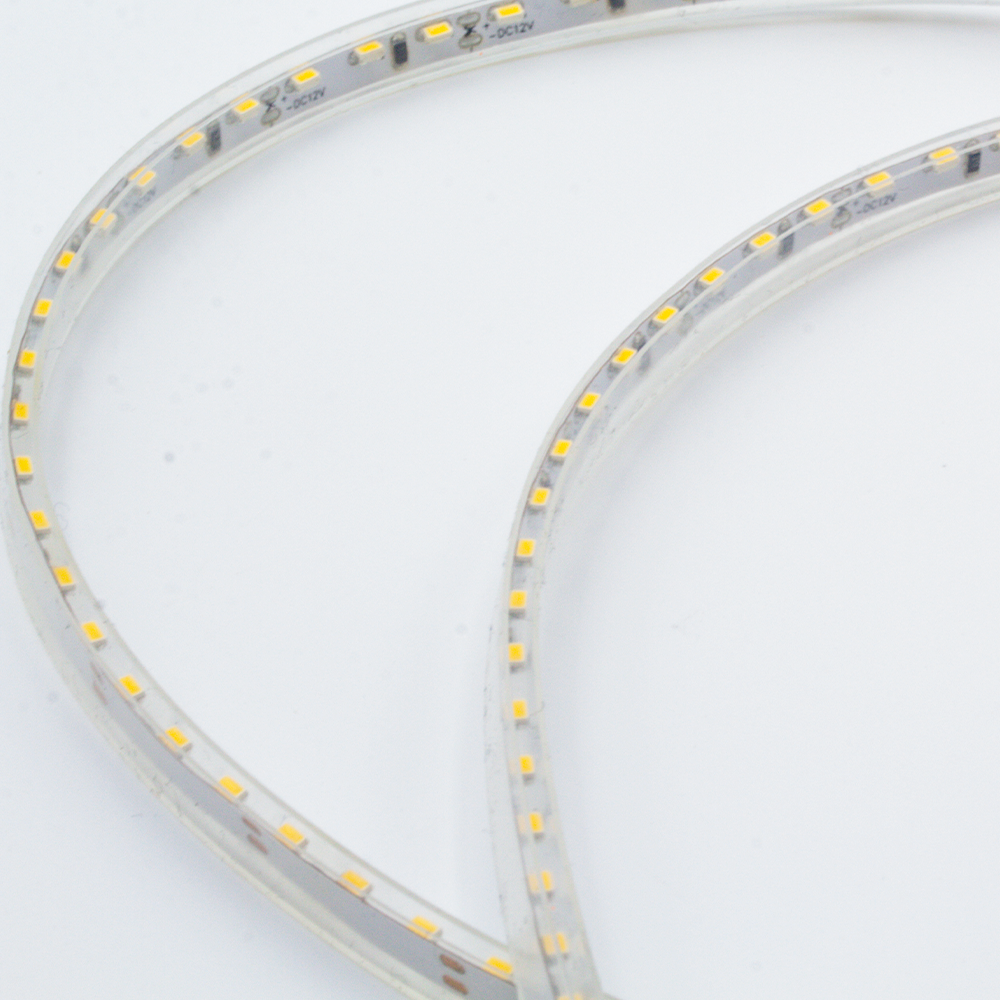

The Ribbon features unique side-facing LEDs for creative indoor and outdoor sign applications.

The Ribbon is perfect for ultra thin channel letters where regular strip lighting won’t fit, as well as efficient halo illumination.

  • Unique edge-facing illumination for creative applications.

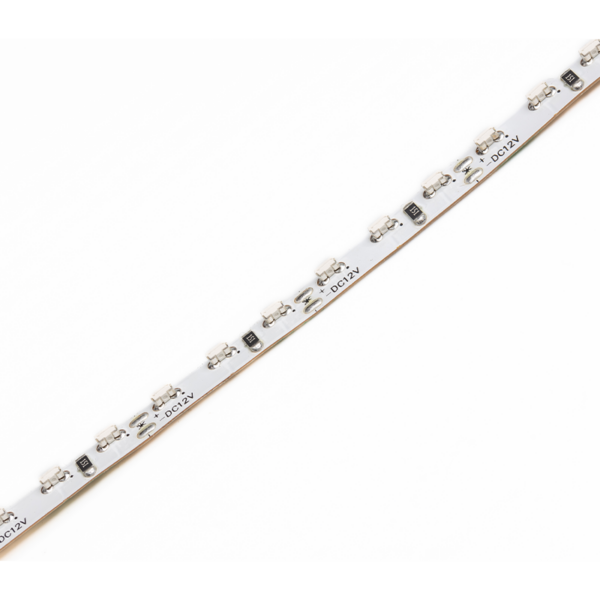

  • Can be cut every 3 LEDs.
  • 120 LEDs per metre.

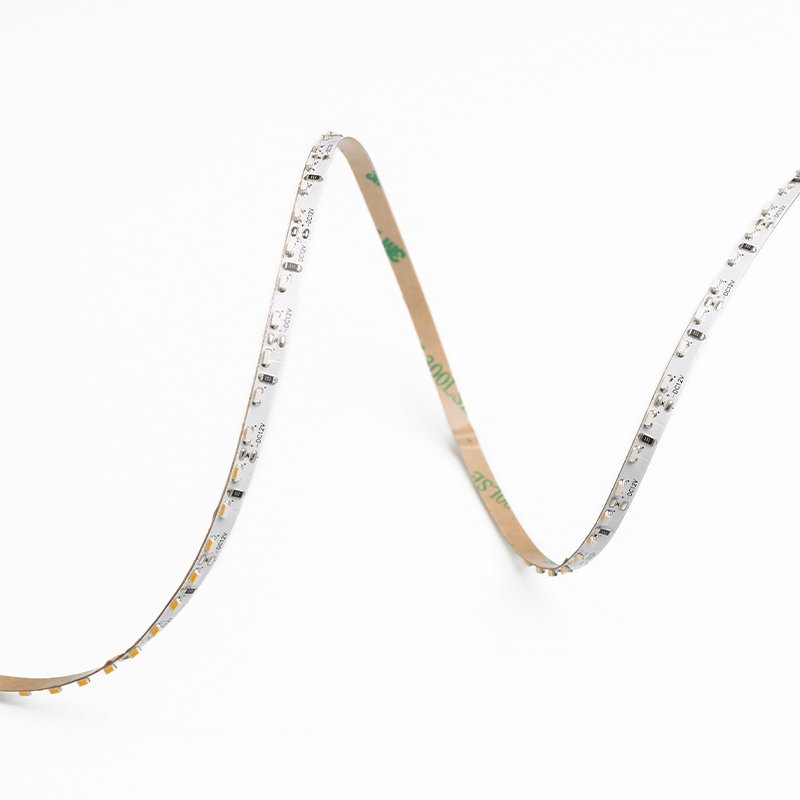

  • 3M double sided tape for easy installation.
  • IP22 or IP67 Rating available.

Find all the latest product specifications and guides below:

Units

, , , , ,

Colour

3000K, 4000K, 5000K, 6500K

IP Rating

,

Product Type

LED Strip

Voltage

12V

Power Output

9.6 W/M

Features

Dimmable

Installation guide

1
Cut LED strip to required size, taking care to only cut at intervals marked on the product. Note the maximum series length to avoid voltage drop.
2
Solder connecting ‘wire tails’ to terminals for connection to power supply, or for ‘bridging wires’ for linking of strip segments. Always ensure positive-positive and negative-negative connection.
3
Apply glue to the inside of the end cap, then push it onto the LED strip, ensuring to wipe off any excess glue.
4
Wait for the glue to dry before powering on.
5
Ensure that your application area is clean and free of debris. Remove adhesive liner from the back of strip and press flex strip into place.
6
Connect to suitable power supply (and dimmer/controller if required) and test.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.
