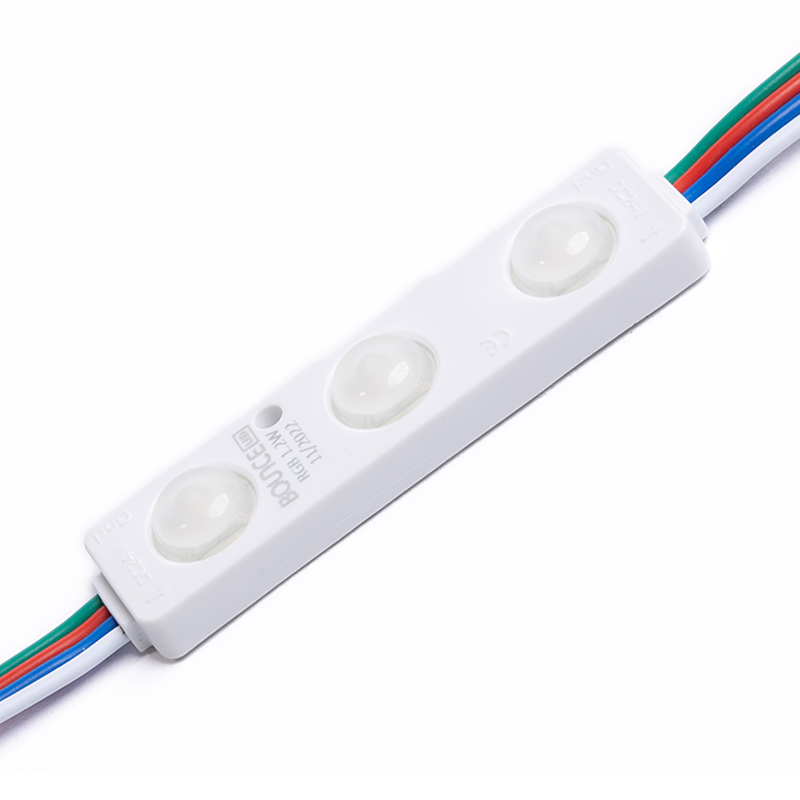

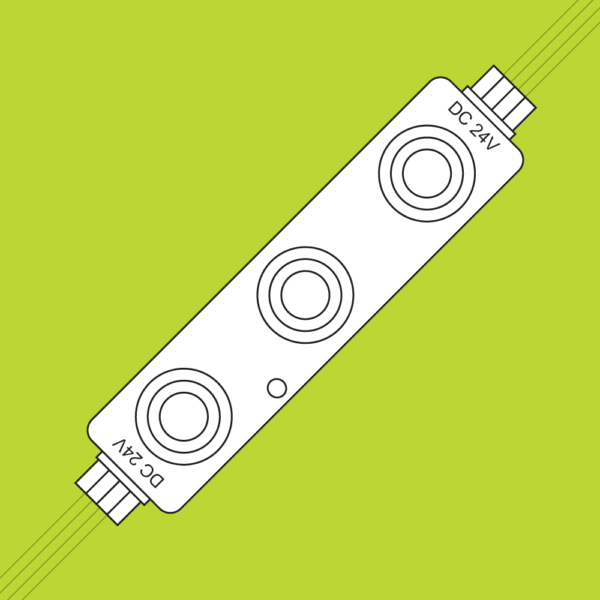

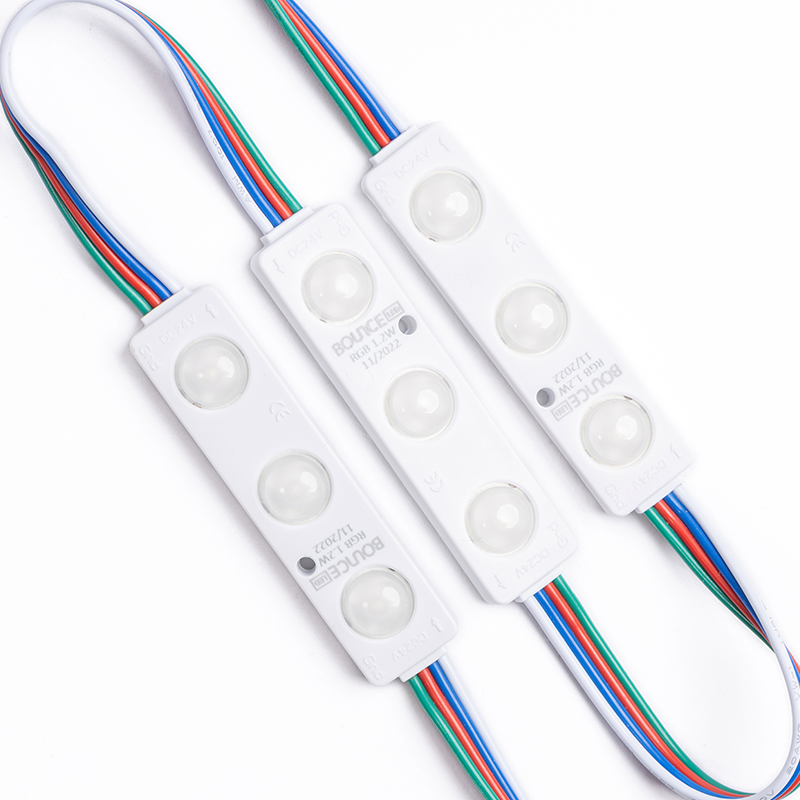

Spectrum RGB

Create vibrant and decorative outdoor illuminated signs, with the Bounce Spectrum RGB LED module.

Product Specs

  • Power Output

    1.2W (24V)

  • Lumens


  • Colours Available

    Variable RGB

  • Ingress Protection


  • Dimensions

    66.8 x 16 x 9.5 mm

  • Warranty

    5 Years

  • Max Series

    40 Modules Per Series

  • Includes

    40 Modules Per Pack

The Spectrum RGB is your go-to LED module for vibrant, variable colour in external lighting applications.

With a slim, compact design, the Spectrum RGB is ideal for channel letters, lightboxes, and commercial lighting projects, operating in the 80-150mm depth range. With superior 120º Batwing optics, to ensure consistent illumination, even in the tightest of light spaces. Spectrum RGB is available in variable RGB, with an impressive 5 year warranty.

Find all the latest product specifications and guides below:


, , ,



IP Rating

Product Type

LED Module



Power Output


Installation guide

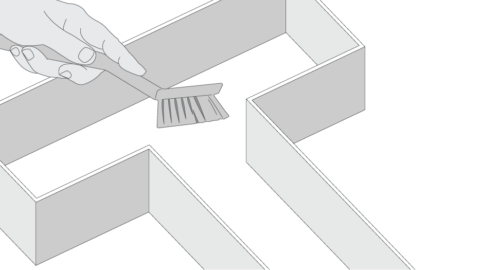

Ensure the inside of your channel letter or sign box is clean and free of debris.
Remove tape from the rear side and stick LED modules in place using supplied LED layout.
Wire up your modules using WAGO Splicing Connectors. Always ensure positive-positive, R-R, B-B and G-G connection. Do not exceed the maximum modules per series as this will result in voltage drop.

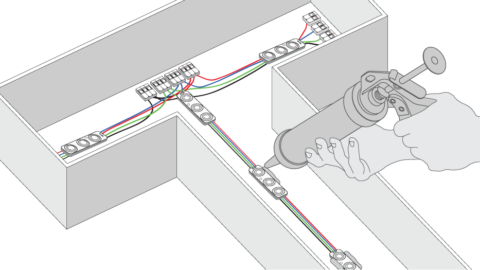

Secure the LEDs by gluing modules in place.

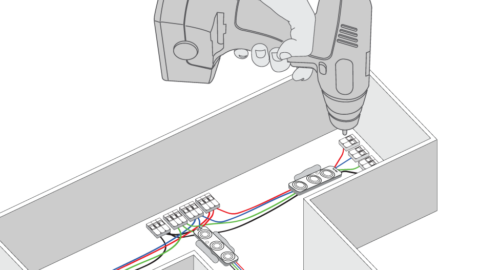

Drill holes out the back of the letters or sign box for connection to DC power supply.

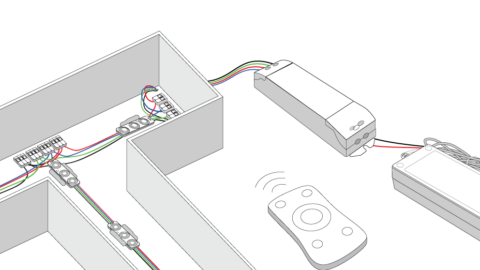

Connect the LED modules from the sign to the receiver and power supply. If there are multiple letters/signs, they should connected in parallel to avoid voltage drop.


Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.

Frequently asked questions

Our Spectrum RGB LED module has been designed for many indoor and outdoor lighting installations, and is excellent in the following applications:

  • Cabinet Lighting
  • Light Boxes
  • Channel Letters
  • Commercial Lighting
  • Indoor and outdoor applications
  • Backlit Installations
  • Dimmable (with controller)

We have a range of dimmable drivers and controllers, suitable for use with the Spectrum RGB LED module.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many LED modules you’ll need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many Spectrum RGB LED modules you’ll need for your next project.
