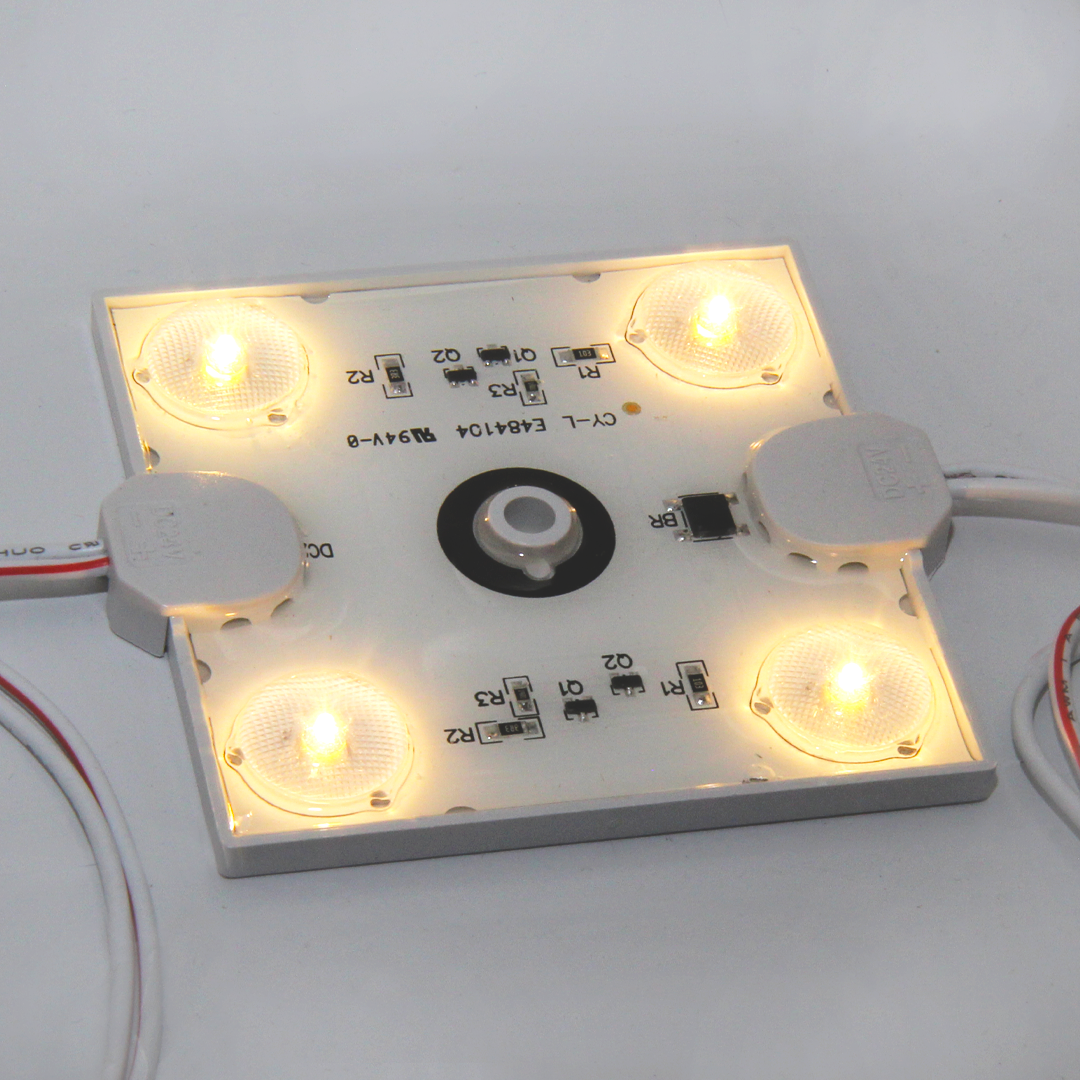

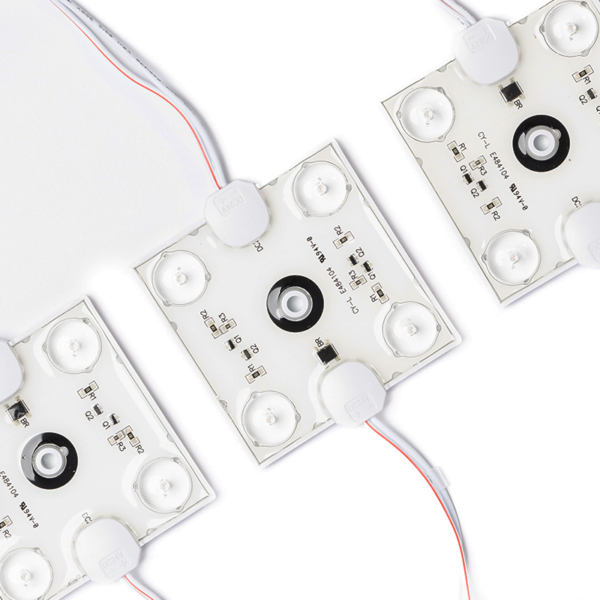

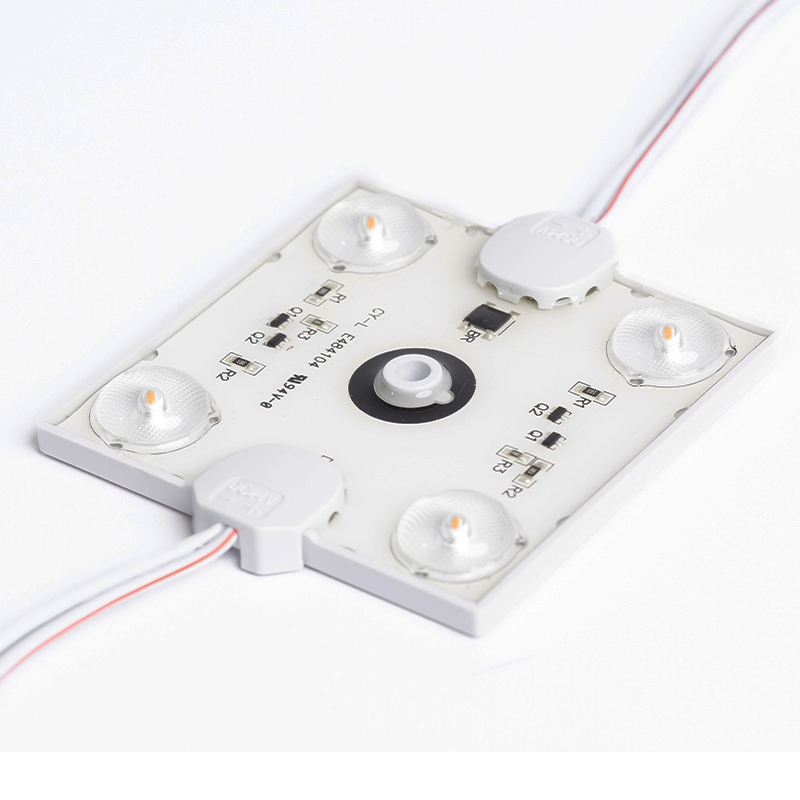

Looking for 24V LED outdoor lighting suitable for cabinet lighting and shallow lightboxes? Look no further than Prism – our high efficiency modules with the latest optic technology.

Product Specs

  • Power Output

    2.0W (24V)

  • Lumens

    180lm

  • Colours Available

    3000K, 6500K

  • Warranty

    5 Years

  • Dimensions

    82 x 73 x 8.5mm

  • Max Series

    50 Modules Per Series

  • Includes

    50 Modules Per Pack

Prism, our 24V LED outdoor lighting module is a fantastic option for large format fabric lightboxes, cabinets and large external billboard style signs.

Using the latest optic technology, this 24V lighting system offers a unique 1:3 light spread ratio, providing a broad and even spread of light with fewer LED modules required. Prism modules are available in Warm White (3000K), and Cool White (6500K) colour variants, all with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Units

, , ,

Colour

3000K, 6500K
IP Rating

Product Type

LED Module
Voltage

24V
Power Output

2W
Features

Dimmable

Installation guide

1
Ensure the inside of your channel letter or sign box is clean and free of debris. For best illumination ensure the inside of the box is white (matte finish preferred).
2
Using supplied LED layout, remove tape from module and press firmly into place.
3
Secure LEDs by gluing modules in place. Ensure glue does not come into contact with LED lense as this will affect the light hue.
4
Drill a suitably sized hole out the back of the sign for connection to DC power supply.
5
Connect modules from the sign to power supply, making sure to not exceed maximum series. Exceeding the maximum series will result in voltage drop.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.

Frequently asked questions

The Prism 24V LED outdoor lighting module has been purpose-designed for cabinet lighting and lightboxes. With 50 modules per chain, the Prism is excellent in the following applications:

  • Cabinet Lighting
  • Lightboxes
  • Large Billboard Signs
  • Backlit Signs
  • Dimmable (with controller)

Follow these steps on how to install the Prism 24V LED outdoor lighting modules.

  1. Ensure the inside of your channel letter or sign box is clean and free of debris. For best illumination ensure the inside of the box is white (matte finish preferred).
  2. Using the supplied LED layout (link to bounce wizard), remove tape from the module and press it firmly into place.
  3. Secure the LEDs by gluing modules in place. Ensure glue does not come into contact with the LED lense as this will affect the light hue.
  4. Drill a suitably sized hole out the back of the sign for connection to DC power supply.
  5. Connect modules from the sign to the power supply, making sure to not exceed the maximum series.
  6. You can install the Prism 24V LED outdoor lighting modules in a continuous run of 50 modules per series. Always check the max series to avoid a voltage drop.

The Prism 24V LED outdoor lighting can be used with our range of dimmable drivers and controllers; these are suitable for use with the entire Bounce LED 24V Cabinet range.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many modules you’ll need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many Prism 24V LED outdoor lighting modules you’ll need for your next project.

product
Enquire about the Prism
Need more info on our Prism 24V LED outdoor lighting modules? Discuss your needs with our friendly team. Send through your signage artwork and we’ll happily provide a custom LED layout with pricing in 24-48 hours. Or why not try Bounce Wizard, our free layout and estimator tool.
