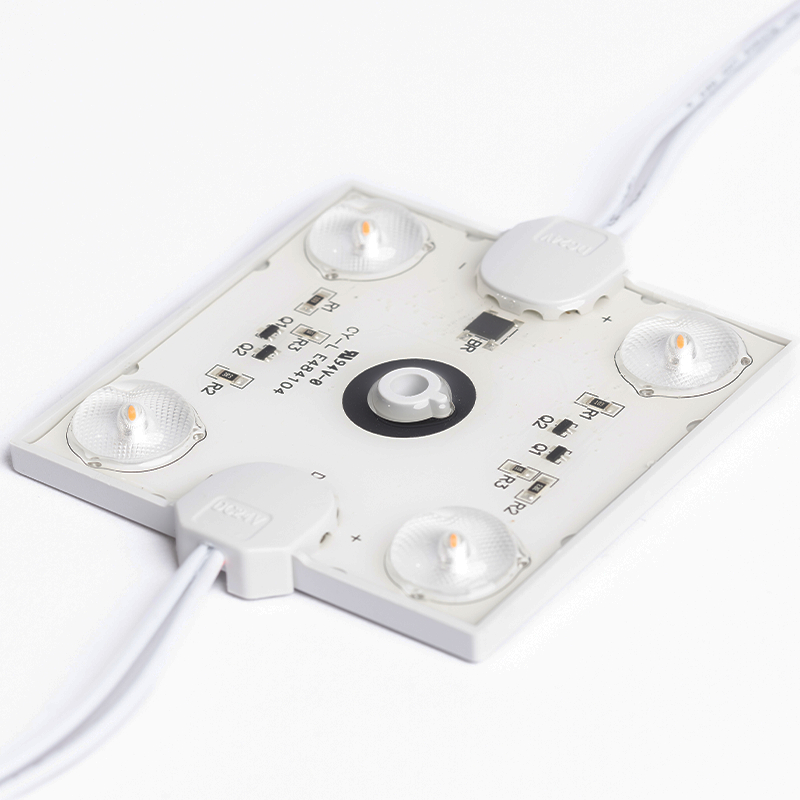

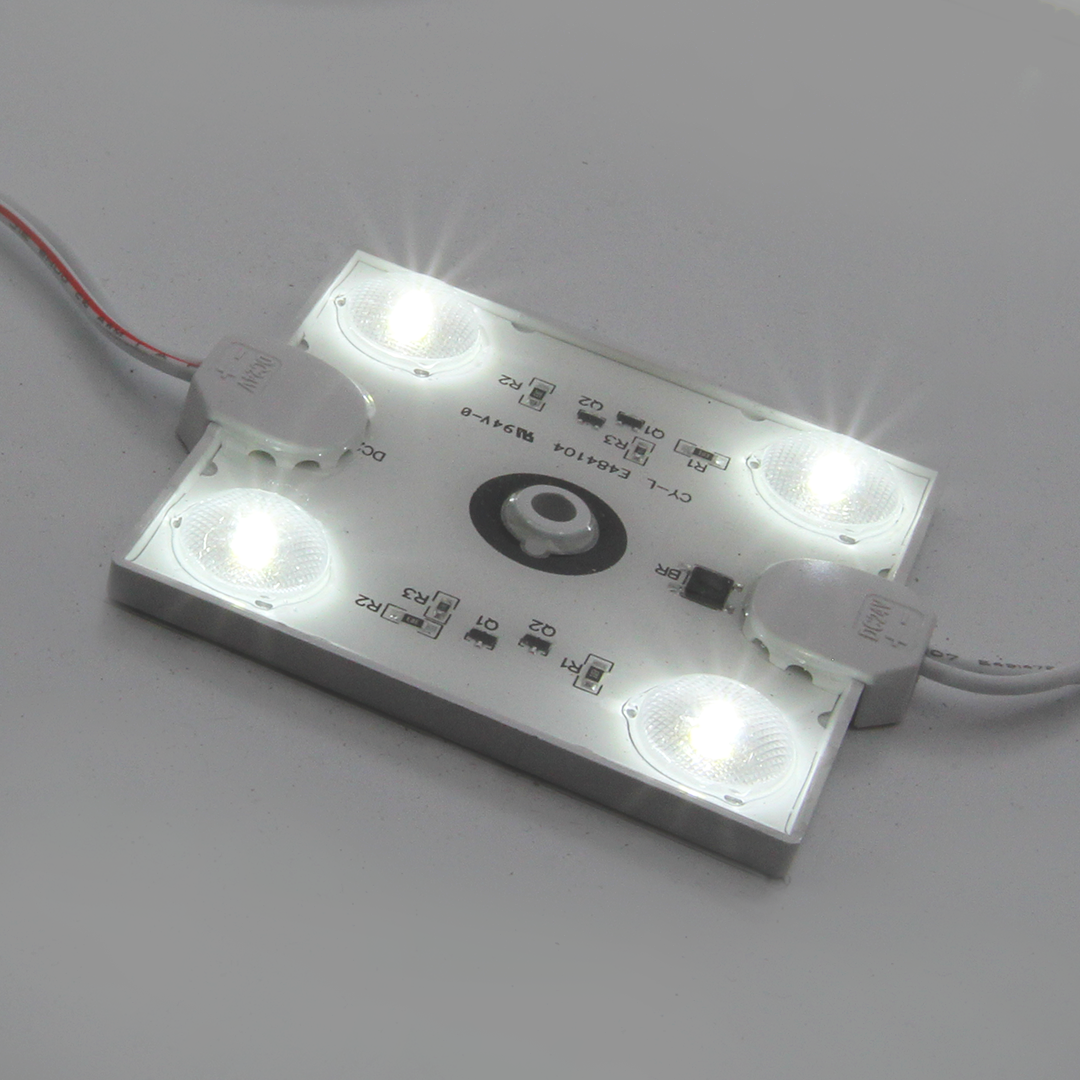

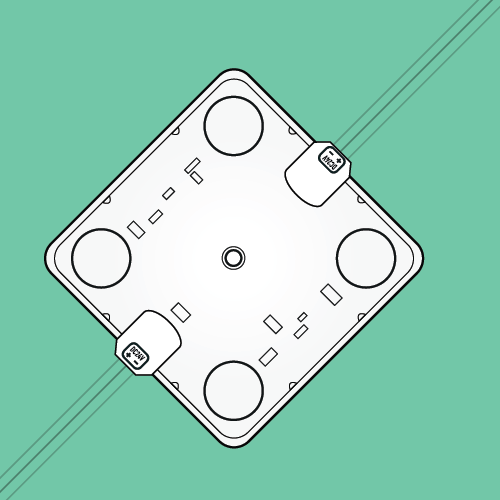

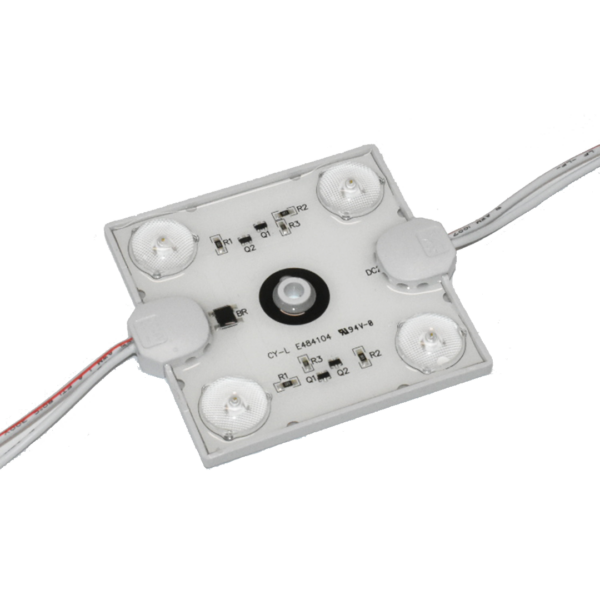

Looking for lighting modules suitable for cabinet lighting and shallow outdoor lightboxes? Look no further than Prism Plus – our high efficiency 24V LED modules with the latest optic technology.

Product Specs

  • Power Output

    4.0W (24V)

  • Lumens

    348lm

  • Colours Available

    3000K, 4000K, 5000K, 6500K

  • Warranty

    5 Years

  • Dimensions

    82 x 73 x 8.5mm

  • Max Series

    25 Modules Per Series

  • Includes

    25 Modules Per Pack

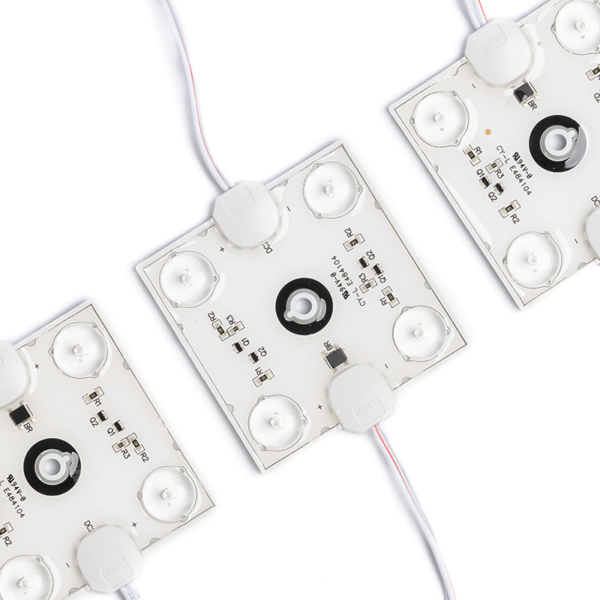

Prism Plus, our 24V LED outdoor module, is a fantastic option for large format fabric lightboxes, cabinets and large external billboard style signs.

Using the latest optic technology, this 24V lighting system offers a unique 1:3 light spread ratio, so fewer LED modules are required for a broad and even spread of light. Prism Plus modules are available in Warm White (3000K), and Cool White (6500K) colour variants, all with an impressive 5 year warranty.

Find all the latest product specifications and guides below:

Units

, , ,

Colour

3000K, 4000K, 5000K, 6500K
IP Rating

Product Type

LED Module
Voltage

24V
Power Output

4W
Features

Dimmable

Installation guide

1

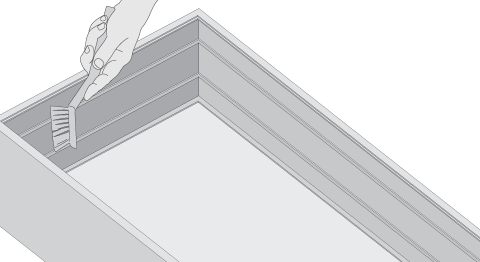

Ensure the inside of your channel letter or sign box is clean and free of debris. For best illumination ensure the inside of the box is white (matte finish preferred).
2

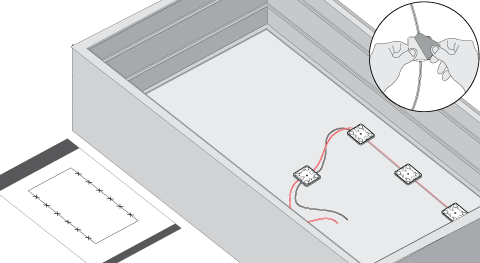

Using supplied LED layout, remove tape from module and press firmly into place.
3

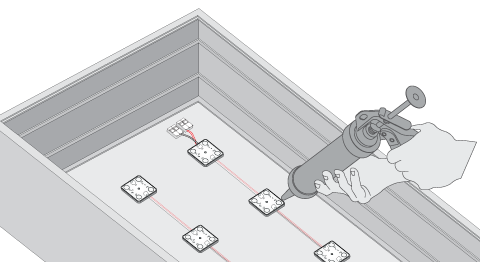

Secure LEDs by gluing modules in place. Ensure glue does not come into contact with LED lense as this will affect the light hue.
4

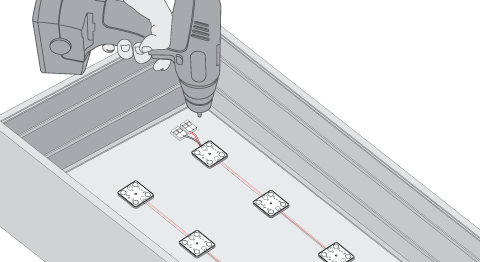

Drill a suitably sized hole out the back of the sign for connection to DC power supply.
5

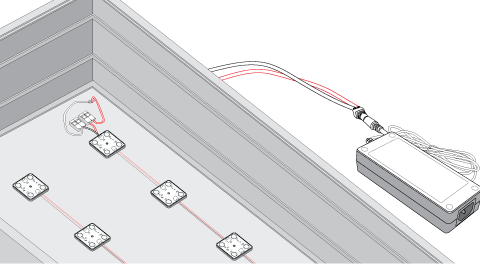

Connect modules from the sign to power supply, making sure to not exceed maximum series. Exceeding the maximum series will result in voltage drop.

Warning

Risk of electrical shock. Please read these instructions completely and carefully. Disconnect power before servicing or installing product.

Frequently asked questions

The Prism Plus 24V LED module, has been purpose-designed for outdoor lightboxes and cabinet lighting. With 25 modules per chain, the Prism Plus is excellent in the following applications:

  • Cabinet Lighting
  • Outdoor Lightboxes
  • Large Billboard Signs
  • Backlit Signs
  • Dimmable (with controller)

Follow these steps on how to install the Prism Plus 24V LED outdoor lightbox modules.

  1. Ensure the inside of your channel letter or sign box is clean and free of debris. For best illumination ensure the inside of the box is white (matte finish preferred).
  2. Using the supplied LED layout (link to bounce wizard), remove tape from the module and press it firmly into place.
  3. Secure the LEDs by gluing modules in place. Ensure glue does not come into contact with the LED lense as this will affect the light hue.
  4. Drill a suitably sized hole out the back of the sign for connection to DC power supply.
  5. Connect modules from the sign to the power supply, making sure to not exceed the maximum series.
  6. You can install the Prism Plus 24V LED modules in a continuous run of 25 modules per series. Always check the max series to avoid a voltage drop.

Prism Plus 24V LED outdoor modules can be used with our range of dimmable drivers and controllers; these are suitable for use with the entire Bounce LED 24V Cabinet range.

Use our free online estimator tool, Bounce Wizard, to work out exactly how many modules you’ll need for your next LED lighting or signage project.

Use Bounce Wizard, our free online estimator tool, to work out how many Prism Plus 24V LED for outdoor lightbox modules you’ll need for your next project.
